Showtec Edison Vintage 1 Retro DMX LED Light with Dimmer

Name: Showtec Edison Vintage 1 Retro DMX LED Light with Dimmer
Brand: Showtec
Price: 393.92 GBP
Availability: InStock

Price Each £328.27 (£393.92 Including VAT at 20%)

REF: JP114025

Quantity:

Showtec Edison Vintage 1 Retro DMX LED Light with Dimmer

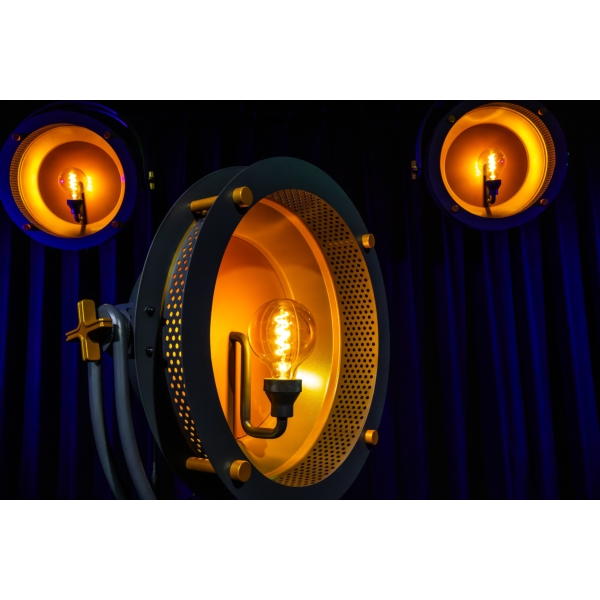

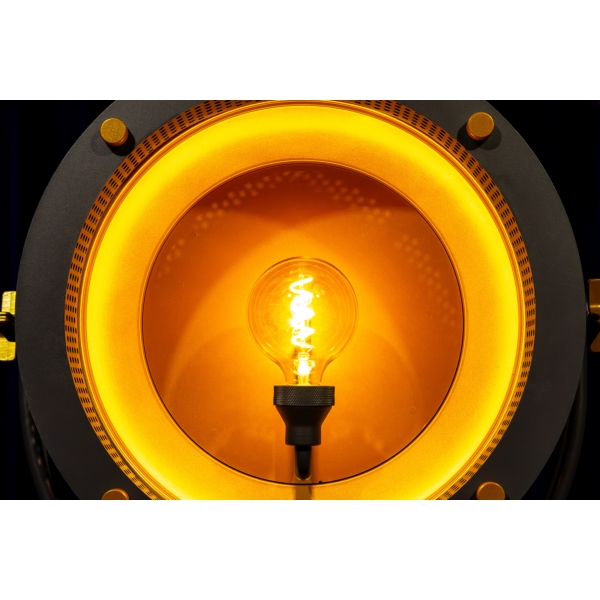

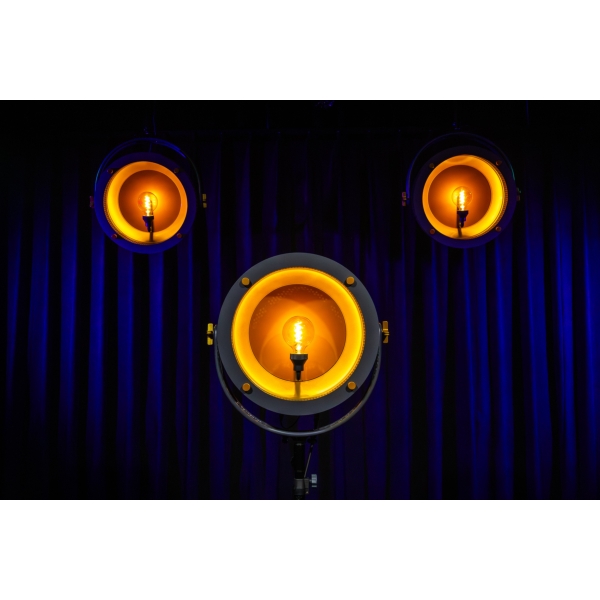

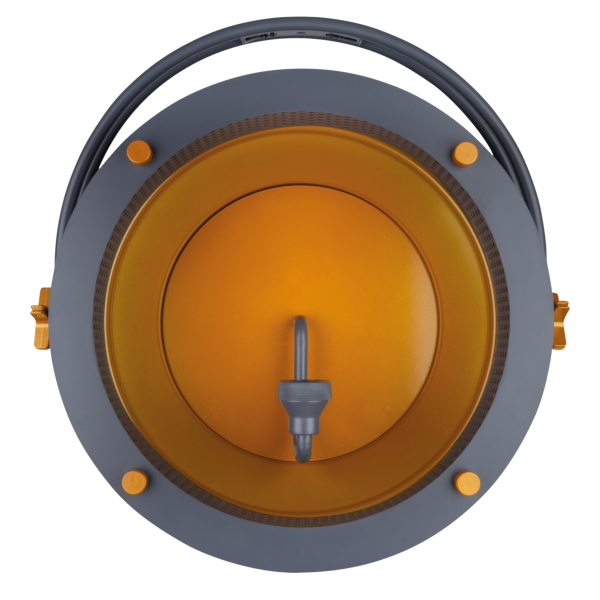

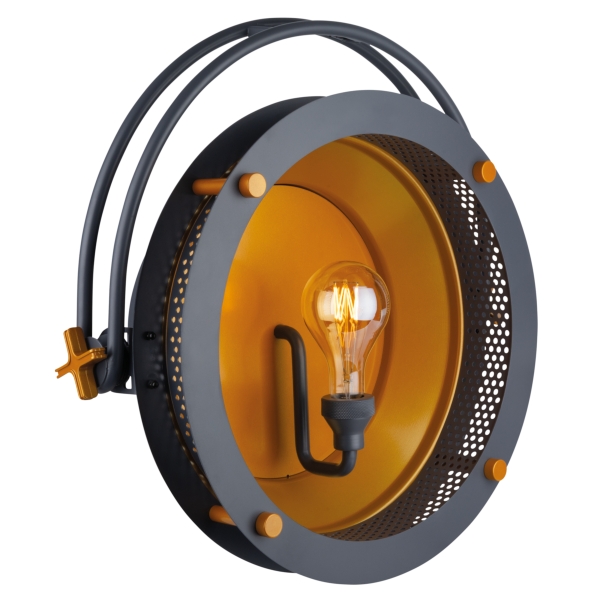

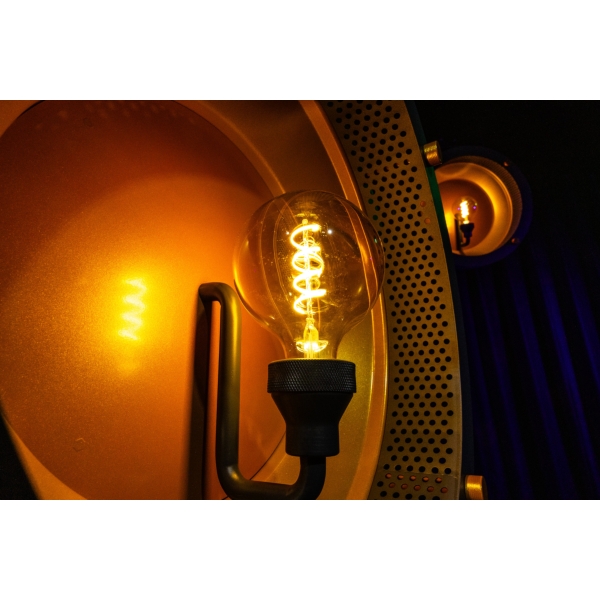

The Showtec Edison Vintage 1 Retro DMX LED Light with Dimmer is a large-format, stylish LED light with a retro look. Equipped with an E27 socket suitable for a design LED bulb, it delivers a cosy, vintage glow ideal for stage, studio, or themed environments. The built-in dimmer supports both DMX control and manual operation, with smooth voltage-based dimming for authentic incandescent-style fades. An intuitive OLED display ensures easy configuration, while the quick-lock bracket allows for fast, secure mounting on truss or 50 mm pipe systems.

Click Here for Printer Friendly Version

Showtec Edison Vintage 1 Retro DMX LED Light with Dimmer Features

- DMX LED dimmer with E27 socket
- Manual and DMX control
- Quick-lock mounting bracket included
- OLED display for easy control

Showtec Edison Vintage 1 Retro DMX LED Light with Dimmer Specifications

Source:
- Light Socket: E27
- Number of Sockets: 1

Control and Programming:
- Control Mode: DMX, Manual
- DMX Channels: 1, 2
- Protocols: DMX, RDM
- Display: OLED
- Display Size: 1.3-inch
- Dim Curve: Linear, Square, I-Square, S-Curve
- Dimmer Resolution: 16 bit

Dynamic Effects:
- Dimmer: 0-100 %

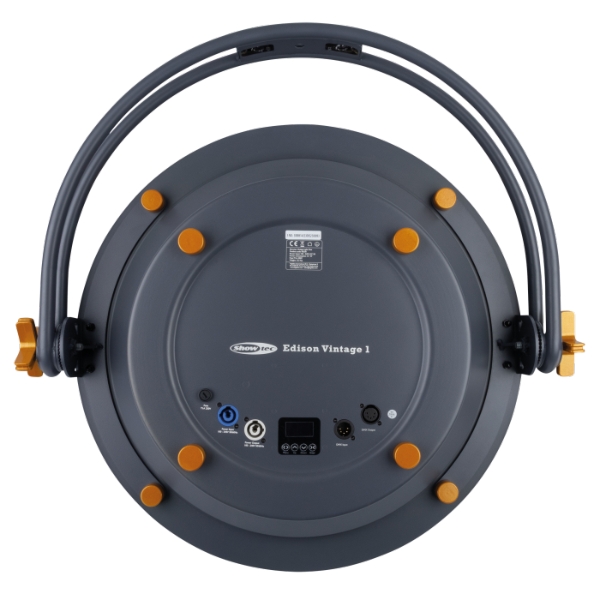

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 6 W
- Fuse: 1 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro True
- DMX Connector: XLR 5P In/Out
- DMX Connector In: XLR 5P
- DMX Connector Out: XLR 5P
- Cable Length: 1.5 m

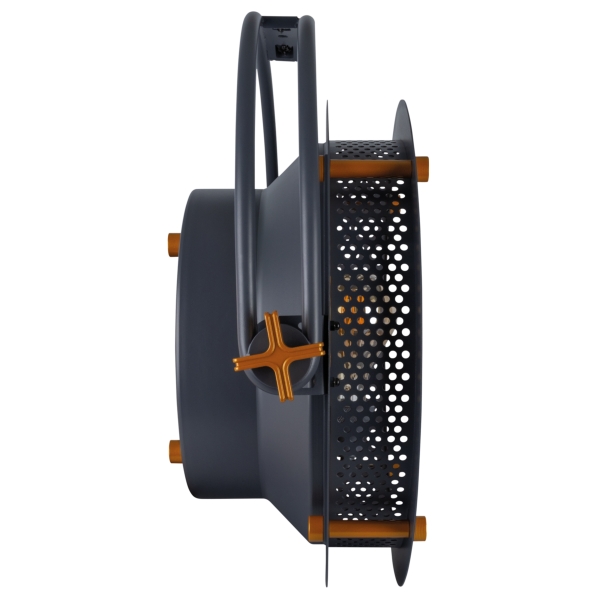

Mechanical Specifications:
- Height: 693 mm
- Width: 699 mm
- Depth: 285 mm
- Weight: 8 kg (17.637 lb)
- IP Rating: IP20 (indoor use only)
- Material: Aluminium, Metal
- Housing: Aluminium, Metal
- Colour: Pale Gold, Grey

Product Properties:
- Cooling: Convection

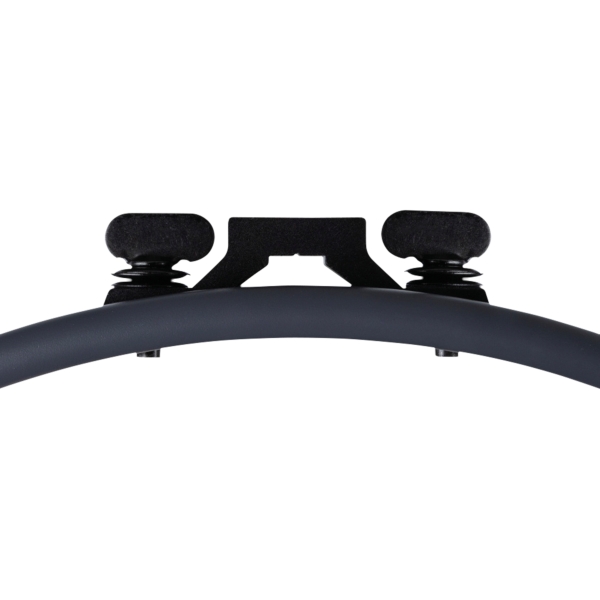

Rigging:
- Mounting Options: Clamp, Quick-Lock

Thermal Specifications:
- Maximum Ambient Temperature: 45 °C (113 °F)

Further Product Information Below

Showtec Edison Vintage 1 Manual (PDF)

Showtec Edison Vintage 1 Data Sheet (PDF)

Showtec Edison Vintage 1 Declaration of Conformity (PDF)

Showtec Edison Vintage 1 Retro DMX LED Light with Dimmer Supplied With

- Power Pro Cable
- Quick-Lock Bracket
