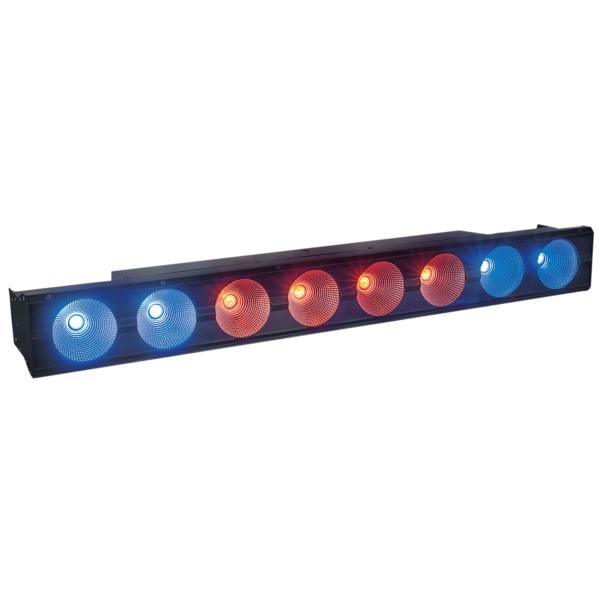

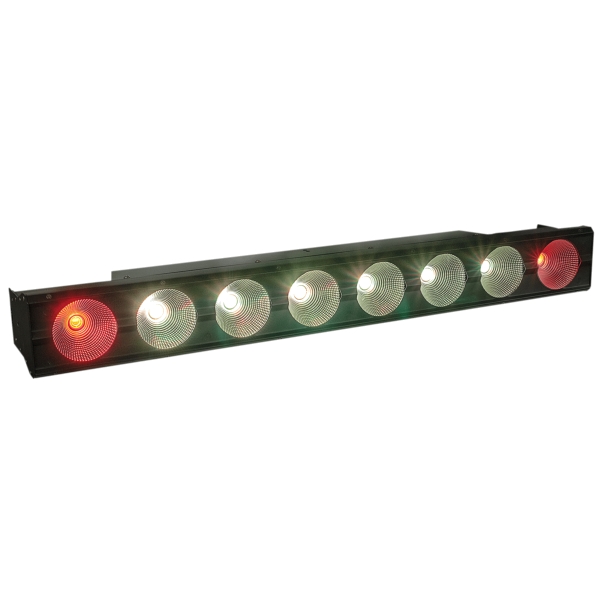

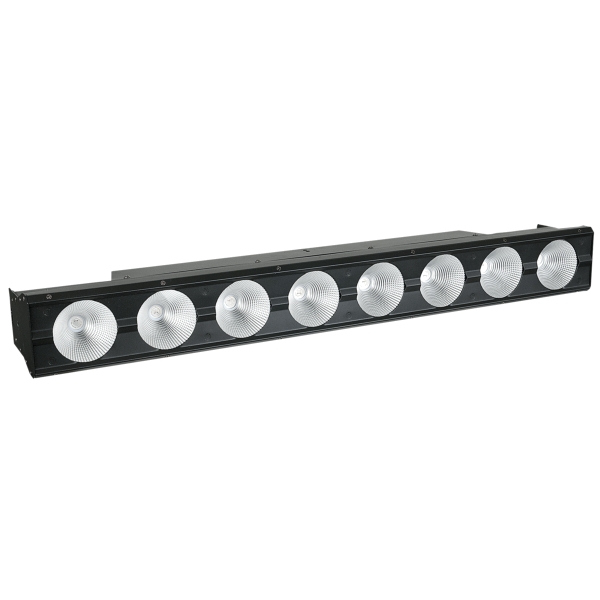

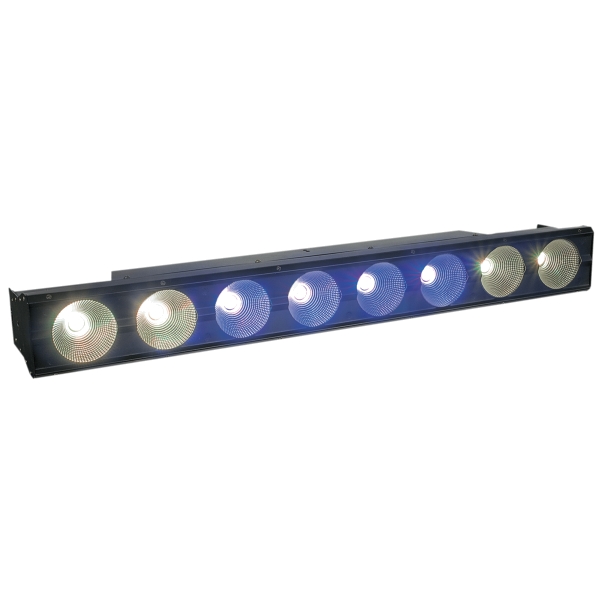

Showtec Pixel Bar 8 RGB COB LED Batten

Showtec Pixel Bar 8 RGB COB LED Batten Features

- 3-in-1 COB LED Technology
- Power and data daisy chain
- Multiple DMX modes for total pixel control
- Large Beam Angle

Showtec Pixel Bar 8 RGB COB LED Batten Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 8
- Light Source Power: 15 W
- LED Colour Type: RGB
- Refresh Rate: 7800 Hz
- Luminous Flux (Total): 1050 lm

Optical:
- Beam Angle (Horizontal): 60 °
- Beam Angle (Vertical): 60 °

Control and Programming:
- Control Mode: Auto, Built-in Program, DMX, Master Slave, Sound
- DMX Channels: 2, 3, 5, 6, 12, 24
- Protocols: DMX
- Display: 7-segment

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 120 W
- Power Connector In: IEC
- Power Connector Out: IEC

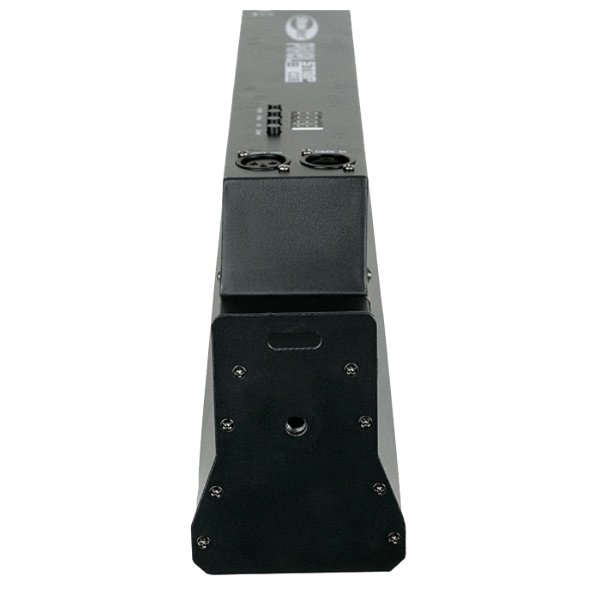

- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- Length: 735 mm
- Width: 110 mm
- Height: 85 mm
- Weight: 3.9 kg (8.598 lb)
- IP Rating: IP20 (indoor use only)
- Housing: Metal
- Colour: Black

Product Properties:
- Cooling: Axial fan

Rigging:

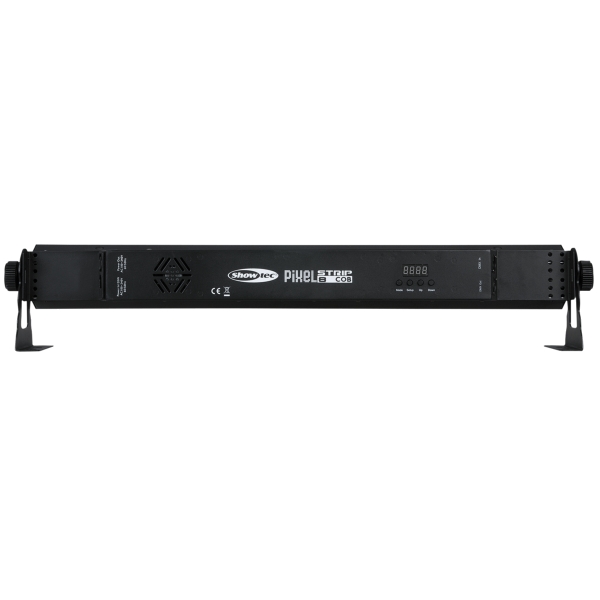

- Mounting Options: Bracket, Stand

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)
- Minimum Operating Temperature: -5 °C (23 °F)

Further Product Information Below

Showtec Pixel Bar 8 Manual (PDF)

Showtec Pixel Bar 8 Data Sheet (PDF)

Showtec Pixel Bar 8 Declaration of Conformity (PDF)

Showtec Pixel Bar 8 RGB COB LED Batten Supplied With

- Included Cables: IEC cable
- Included Rigging: Bracket
