Showtec Sonus Bar 4 RGBW LED Batten

Name: Showtec Sonus Bar 4 RGBW LED Batten
Brand: Showtec
Price: 111.77 GBP
Availability: InStock

Price Each £93.14 (£111.77 Including VAT at 20%)

REF: JP114007

Quantity:

Showtec Sonus Bar 4 RGBW LED Batten

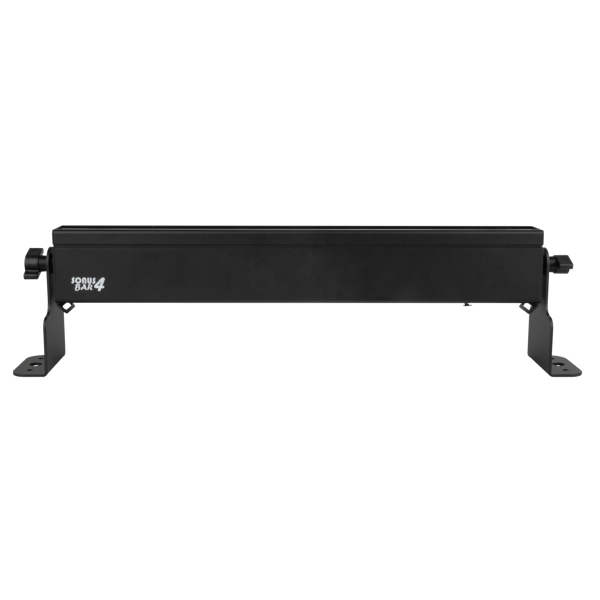

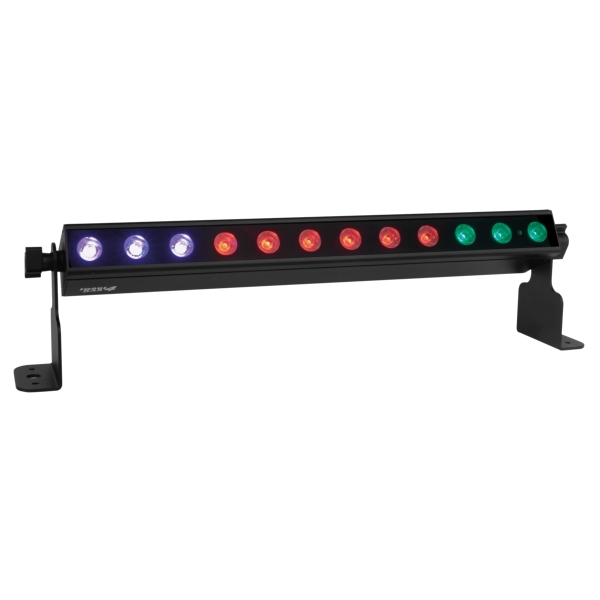

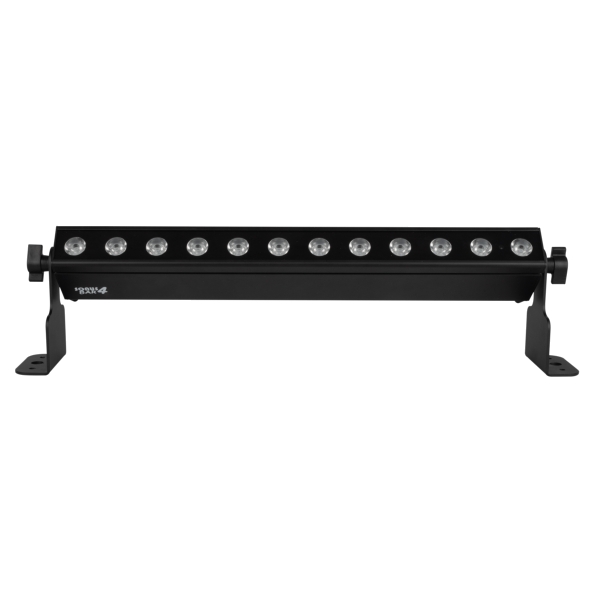

The Showtec Sonus Bar 4 RGBW LED Batten is a light bar with 12 RGBW LEDs of 2 W each. The LEDs can be controlled in up to 4 sections via up to 22 DMX channels. It also features a high-quality sound-controlled mode, which is useful in many occasions and for professionals and beginners alike. It can also work in stand-alone mode with built-in programs, manual settings, in master/slave mode and it supports RDM. The Showtec Sonus Bar 4 is convection-cooled, so it is completely silent in operation.

Click Here for Printer Friendly Version

Showtec Sonus Bar 4 RGBW LED Batten Features

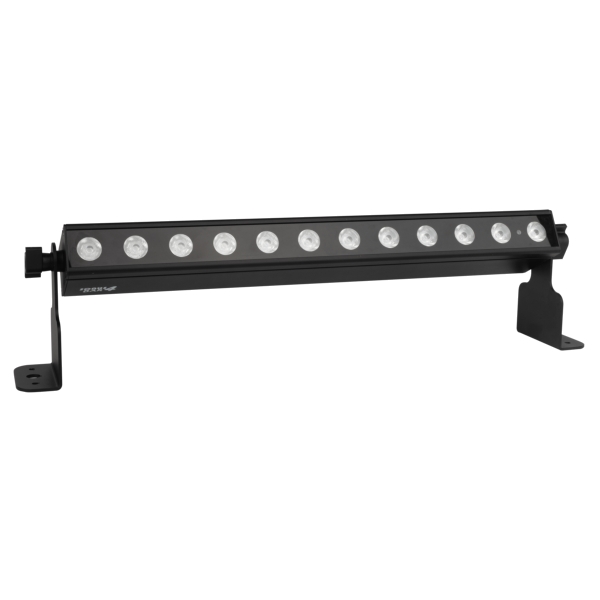

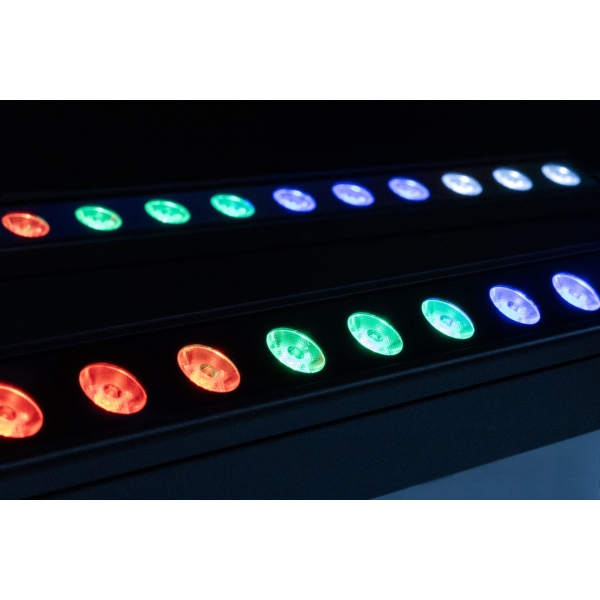

- 12 RGBW LEDs

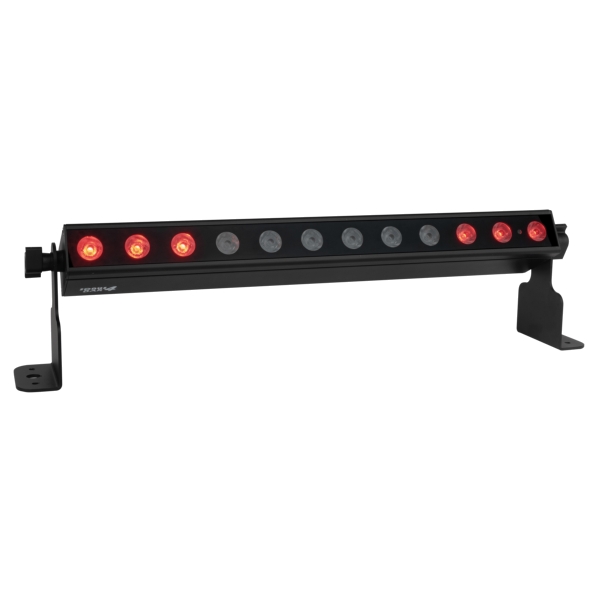

- Up to 4 controllable sections
- DMX/RDM, built-in program, sound, manual and master/slave modes
- Silent convection cooling

Showtec Sonus Bar 4 RGBW LED Batten Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 12
- Light Source Power: 2 W
- LED Colour Type: RGBW
- Refresh Rate: 1000 Hz
- Luminous Flux (Total): 446 lm

Optical:
- Beam Angle (Horizontal): 12.1 °
- Beam Angle (Vertical): 11.4 °

Control and Programming:
- Control Mode: Built-in Program, DMX, Manual, Master Slave, Remote, RDM, Sound
- DMX Channels: 4, 6, 10, 16, 18, 22
- Protocols: DMX, RDM

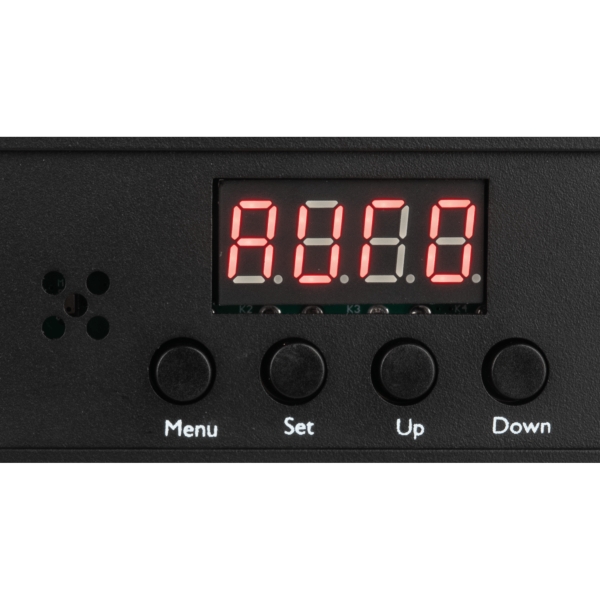

- Display: 7-segment

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-15 Hz

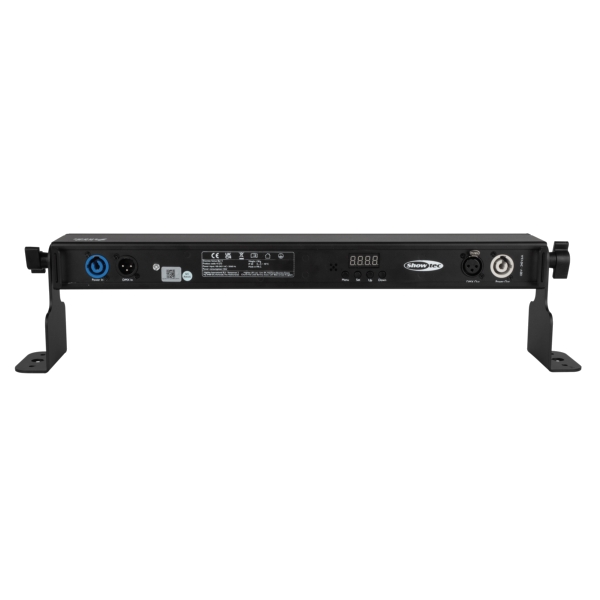

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 15 W

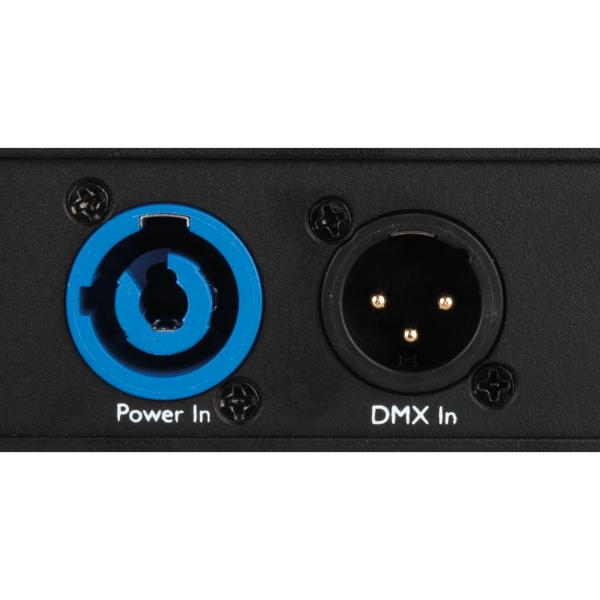

- Power Connector In: Power Pro Blue

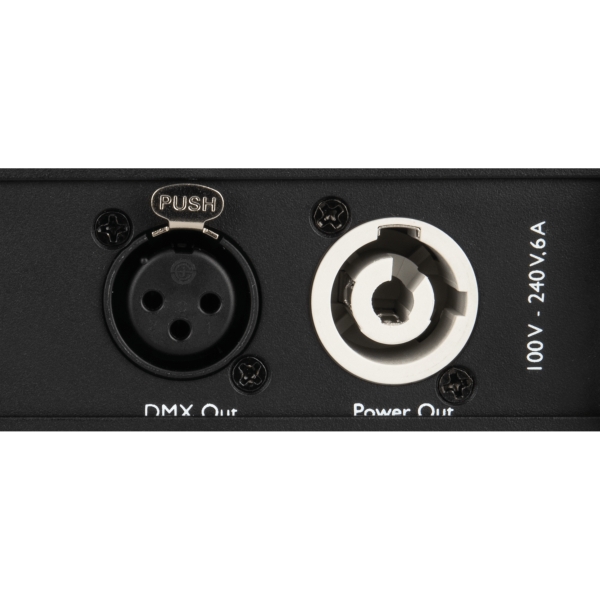

- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- Length: 590 mm
- Width: 80 mm
- Height: 148 mm
- Weight: 1.9 kg (4.189 lb)
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black

Product Properties:
- Cooling: Convection

Rigging:

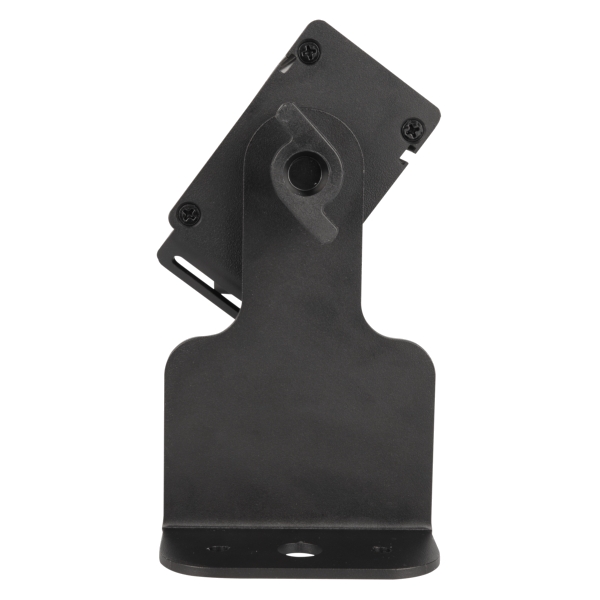

- Mounting Options: Clamp

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)
- Minimum Operating Temperature: -5 °C (23 °F)

Further Product Information Below

Showtec Sonus Bar 4 Manual (PDF)

Showtec Sonus Bar 4 Data Sheet (PDF)

Showtec Sonus Bar 4 Declaration of Conformity (PDF)
