elumen8 Socapex 19-Pin Male - PowerCON 1.5mm Staggered Fan-Out Cable

Name: elumen8 Socapex 19-Pin Male - PowerCON 1.5mm Staggered Fan-Out Cable
Brand: elumen8
Price: 176.04 GBP
Availability: InStock

Price Each £146.70 (£176.04 Including VAT at 20%)

REF: JP112967

Quantity:

Description
Features

elumen8 Socapex 19-Pin Male - PowerCON 1.5mm Staggered Fan-Out Cable

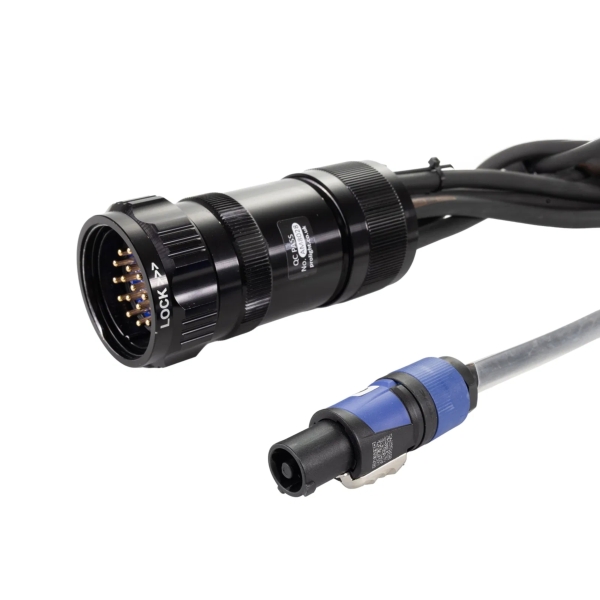

The elumen8 Socapex 19-Pin Male - PowerCON 1.5mm Staggered Fan-Out Cable is a high quality, rental-ready Socapex fan out cable made in Britain from Titanex H07RN-F cable and Elumen8 Showsafe 19-Pin UL certified Socapex connectors. The cables are finished with a short length of clear heatshrink ready for identification or asset label, and each tail is numbered to aid circuit identification.

Click Here for Printer Friendly Version

elumen8 Socapex 19-Pin Male - PowerCON 1.5mm Staggered Fan-Out Cable Features

- Made in Britain
- Titanex H07RN-F 1.5mm cable
- Elumen8 Showsafe 19-Pin connectors complete with 6-way cable gland
- 6 x Neutrik NAC3FCA powerCON connectors
- Clear heatshrink suitable for identification or asset label
- Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard
- Chemical resistant cross-linked elastomer insulation
- Bare copper conductors
- Operating temperature range: -25 to 55°C
- Maximum conductor temperature in service: 90°C
- Amphenol Socapex SL419 compatible
- IP67* ingress protection when mated (*Socapex end)
- FMLB (first make, last break) earth contacts
- Multi-point gold plated contacts

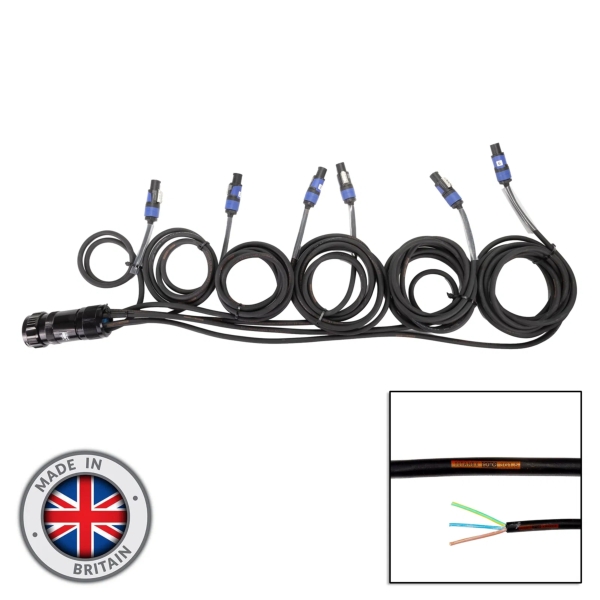

- Staggered tails lengths at 1m intervals (1m thru 6m)
