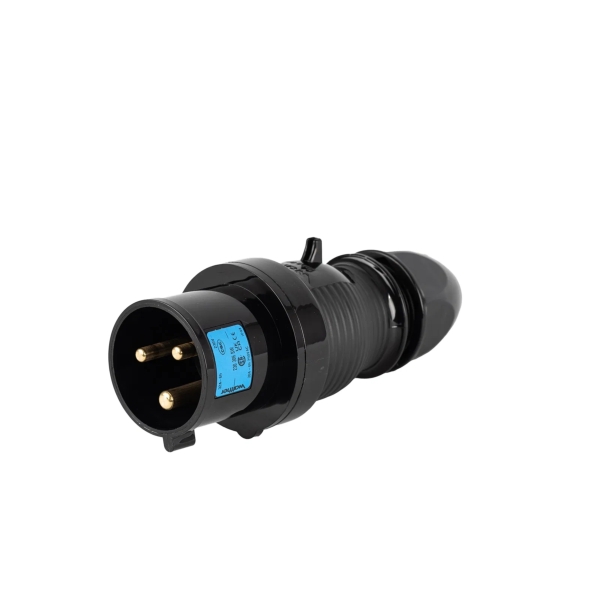

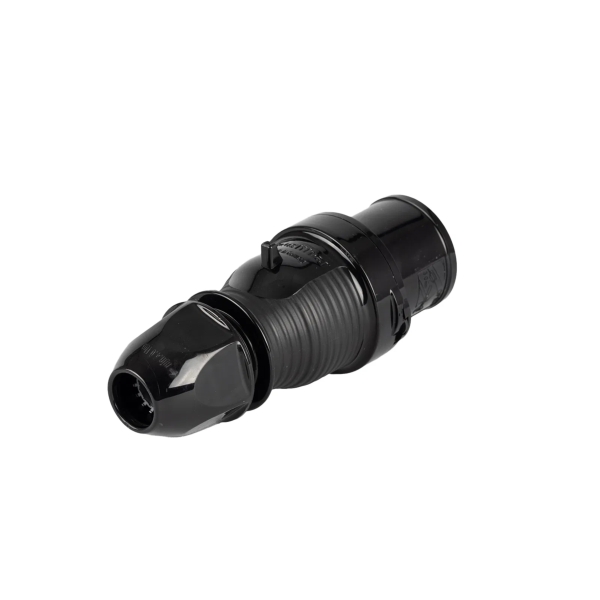

Walther 230306SW 32A 230V 2P+E Black Plug

Walther 230306SW 32A 230V 2P+E Black Plug Features

- 32A IEC 60309 industrial plug, 2P+E, 230V (50/60Hz)
- Black special version with high-impact thermoplastic housing
- IP44 ingress protection with shrouded pins
- Ground first to mate, last to break for added safety
- Double terminal screws on all amperage devices
- Brass contacts; screwed terminal connection
- Conductor size: 2.5-6mm² (14-10 AWG)
- Cable diameter range: 10-22.5mm; swivel cable entry
- Clock position: 6h; straight plug body
- Conformities: CE, RoHS, REACH; VDE certified; UL file E329476

Walther 230306SW 32A 230V 2P+E Black Plug Specifications

- Part Number: 230306SW (black special)
- Standard: IEC 60309
- Rated Current: 32A IEC (30A UL)
- Voltage: 230V, 50/60Hz
- Poles: 2P+E
- Clock Position: 6h
- IP Rating: IP44
- Cable Size: 2.5-6mm² (14-10 AWG)
- Cable Ø Range: 10-22.5mm
- Cable Strip Length: 45mm ±2.5mm
- Ferrule Length: 10mm ±1mm
- Torque - Terminals: 0.8Nm
- Torque - Cable Gland: 4Nm
- Contact Material: Brass
- Body Material: Thermoplastic, UL94 V2
- Entry / Angle: Swivel entry / straight plug
- Net Weight: 0.25kg
- Certifications: VDE, UL (E329476), CE, RoHS, REACH
