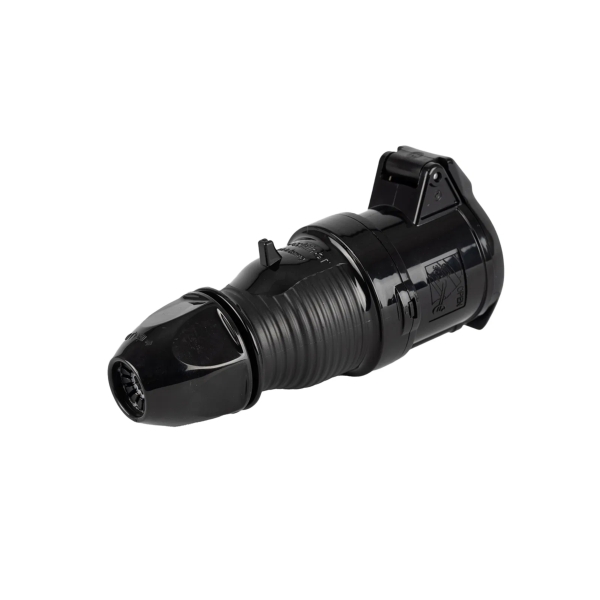

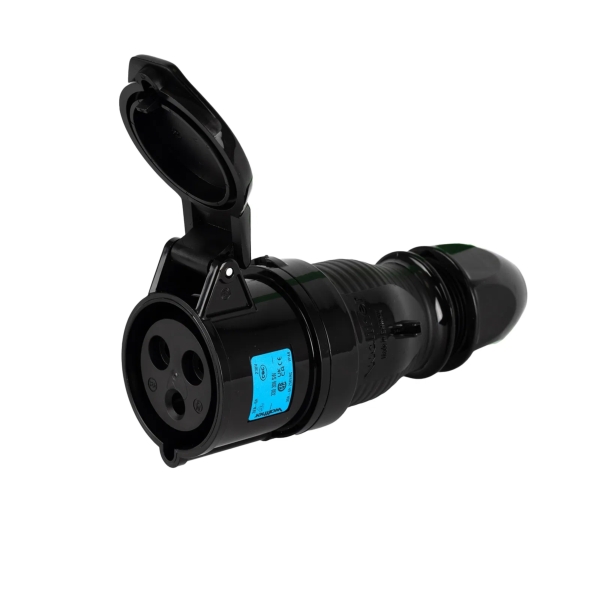

Walther 330306SW 32A 230V 2P+E Black Socket

Walther 330306SW 32A 230V 2P+E Black Socket Features

- 32A IEC 60309 cable coupler, 2P+E, 230V (50/60Hz), 6h
- Black special housing; high-impact thermoplastic, abrasion-resistant
- IP44 ingress protection; shrouded contacts
- Ground-first, last-break safety sequencing
- Double terminal screws; screwed-terminal connection
- Brass contacts; swivel cable entry
- Conductor size: 2.5-6mm² (14-10 AWG)
- Cable Ø range: 10-22.5mm

Walther 330306SW 32A 230V 2P+E Black Socket Specifications

- Part Number: 330306SW (black special)
- Base Model: 330306 (IEC coupler)
- Rated Current: 32A IEC / 30A UL
- Voltage: 230V, 50/60Hz
- Poles: 2P+E
- Clock Position: 6h
- IP Rating: IP44
- Cable Size: 2.5-6mm² (14-10 AWG)
- Cable Ø: 10-22.5mm
- Cable Strip Length: 45mm ±2.5mm
- Ferrule Length: 10mm ±1mm
- Torque - Terminals: 0.8Nm
- Connection: Screwed terminal; swivel entry
- Contact Material: Brass
- Body Material: Thermoplastic (UL94 V2)
- Net Weight: 0.314kg
