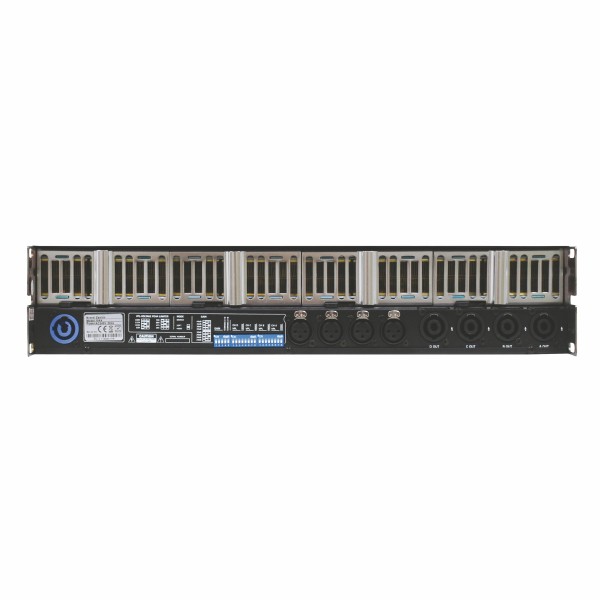

Zenith 10K4 4 x 2500W Amplifier

Zenith 10K4 4 x 2500W Amplifier

Zenith 10K4 4 x 2500W Amplifier

Price Each 1,486.86 Exc VAT or (1,784.23 Inc VAT at 20%)

Buy 2+ units for 3407.89 Inc VAT. To Do So, Click Here to Register.

Ref: JP62592

<Back

Click Here For PDF User Manual


Zenith 10K4 4 x 2500W Amplifier, The Zenith amplifier range has been designed and engineered to work in demanding environments including installation and touring with military endurance. Oversized multi-speed fans and large heat sinks improve heat dissipation, while the SMPSU optimises the amplifiers efficiency while reducing the weight. The 10K4 and 13K2 lightweight power amplifiers from Zenith feature high efficiency TD class technology for high power output to weight ratio, and are housed within compact 2U chassis. With up to 6500W per channel these power amplifiers are ideal for rental or large installations. Suitable for driving into 2Ω loads, the amplifiers are equipped with an extensive set of protection circuits for reliable operation.

Features 4 channels with hot swappable output modules
Amplifier gain selectable (all channels) 23, 26, 29, 32, 35, 38, 41, 44dB (default gain 35dB)
Level adjustment (per channel): front-panel potentiometer, detented from 8 to 0dB
Output bridge mode per two channels A and B bridge, A as the input source , C and D bridge, C as the input source
Cooling system: Three fans, airflow design from the front to the rear for temperature control
Status indication: Signal present/high-impedance: -20dB,-15dB, -10dB and
-4dB output signal, Voltage Peak Limiter (VPL), Current Peak Limiter (CPL), Very High Frequency (VHF), high temperature, fault, mute
Power average limiter
Protection circuits: Soft start, Voltage Peak Limiter (VPL), Current Peak Limiter (CPL), Very High Frequency (VHF), high temperature and load fault

Specifications
4 x 660W RMS @ 16 ohm
4 x 1300W RMS @ 8 ohm
>4 x 2100W RMS @ 4 ohm
4 x 2500W RMS @ 2 ohm
2 x Bridge 4200W RMS @ 8 ohm
2 x Bridge 5000W RMS @ 4 ohm
VPL selectable per channel
VPL selectable when bridged
Input connectors (per channel): 3-pin XLR, electronically balanced
Output connectors (per channel): Neutrik speakON
Inrush current draw: 5A max.
Dimensions: 88 x 483 x 425mm
Weight: 13.5kg
