Adastra RM240-WIFI Mixer-Amplifier with WiFi, 240W @ 4 Ohms or 100V Line

Name: Adastra RM240-WIFI Mixer-Amplifier with WiFi, 240W @ 4 Ohms or 100V Line
Brand: Adastra
Price: 330.74 GBP
Availability: InStock

Price Each £275.62 (£330.74 Including VAT at 20%)

REF: JP113321

Quantity:

Adastra RM240-WIFI Mixer-Amplifier with WiFi, 240W @ 4 Ohms or 100V Line

The Adastra RM240-WIFI Mixer-Amplifier with WiFi 5-channel 19-inch rack-mountable mixer-amplifier, designed for commercial sound installations to power 100V line speakers or standard low impedance speakers. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. A built-in audio player section can play mp3 files from a USB or stream audio wirelessly from Bluetooth®. A main feature of the RM-WIFI models is the ability to connect to a wired or wireless network for streaming audio from internet radio, playback services or even from a local NAS drive. Setup and control for this function is entirely via the WiiM Home smart phone app with a choice of streaming services embedded. Outputs on screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.

Click Here for Printer Friendly Version

Adastra RM240-WIFI Mixer-Amplifier with WiFi Features

- Internet radio or audio streaming from WiFi or LAN connection
- Free WiiM Home Player app for Android or iOS
- USB player and Bluetooth receiver
- 4 switchable 100V outputs and 1 unswitched output
- Optional 4-16 Ohm output
- XLR input with switchable +20V phantom power
- 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output

Adastra RM240-WIFI Mixer-Amplifier with WiFi Specifications

- Fuse T5A
- Output power (RMS): 240W
- Power supply: 170-264Vac, 50Hz (IEC)
- DC power: 24Vdc (screw terminals)
- Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity: mic 1 (balanced) -53dBV
- Input impedance: mic 1 5k Ohms
- Input sensitivity: line (unbalanced) -15dBV (-18.5dBV line 5)
- Input impedance: inputs 2-5 1k Ohms
- Line output: RCA
- Speaker outputs: 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
- Bluetooth version: 5.0
- Network connection: RJ45 (LAN) or 2.4GHz WiFi (802.11 b/g/n)
- Remote control: via WiiM Home app for iOS or Android
- Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equaliser bass: 100Hz ±10dB
- Equaliser treble: 10kHz ±10dB
- Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
- Phantom power: +20V (mic 1 XLR, switchable)
- Audio source: Network audio, USB player, Bluetooth receiver
- Emergency control: 24V contacts - mute all except Mic.1 when triggered
- THD: ≤1.0%
- Dimensions: 433 x 320 x 88mm
- Weight: 7.37kg

Further Product Information Below

Adastra RM240-WIFI Manual (PDF)

Adastra RM240-WIFI Mixer-Amplifier with WiFi Supplied With

- RM-series 100V mixer-amplifier
- SMA WiFi antenna
- IEC power lead

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

Adastra RM240-WIFI Mixer-Amplifier with WiFi, 240W @ 4 Ohms or 100V Line

Related products:

3M 3 pin XLR Male to Female DMX 512

W Audio 3m 2x Phono - 2x XLR Male Cable

W Audio 3m 2 x Phono - 2 x Mono 6.35mm Jack Cable

W Audio 2m 2 x XLR Female - 2 x Phono Cable

Accu-Cable AC-J6S-2J6M/3 Stereo 6.35mm Jack to 2x Mono 6.35mm Jacks, 3m

W Audio 3m 2x Phono - 2x Phono Cable

Adastra RC4U600 19 inch Installation Rack Cabinet 4U x 600mm Deep

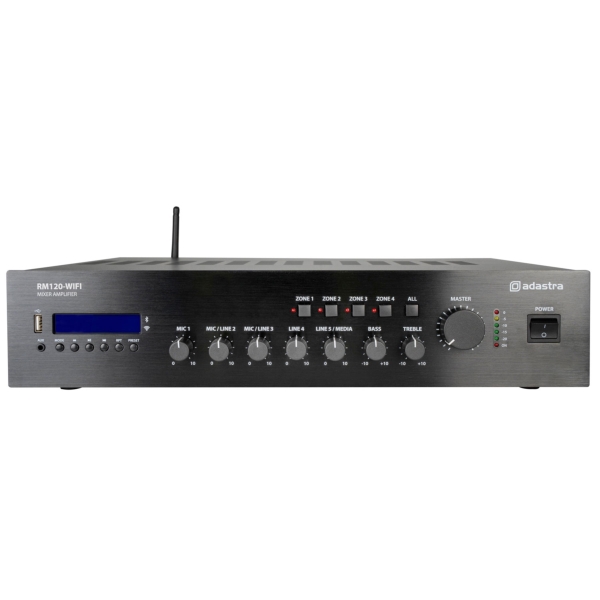

Adastra RM120-WIFI Mixer-Amplifier with WiFi, 120W @ 4 Ohms or 100V Line
