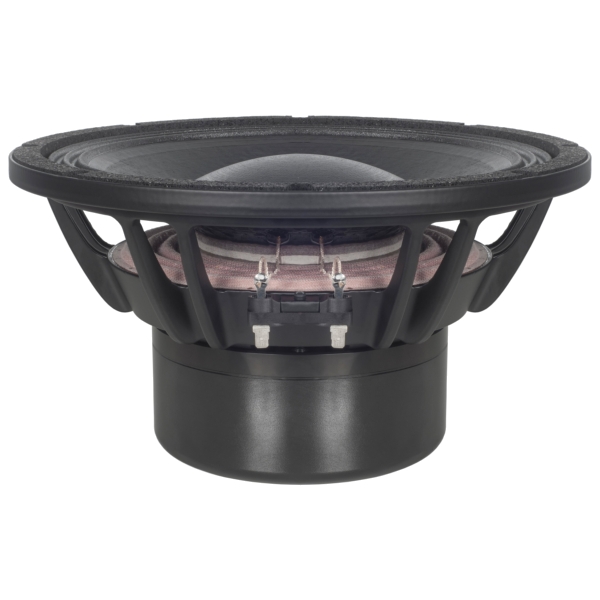

B&C 12SW115 12-Inch Speaker Driver - 1700W RMS, 8 Ohm, Spade Terminals

Price Each £308.17 (£369.80 Including VAT at 20%)

REF: JP115148

Quantity:

B&C 12SW115 12-Inch Speaker Driver - 1700W RMS, 8 Ohm, Spade Terminals

The B&C 12SW115 12-Inch (8 Ohm) Speaker Driver. Compact horn subwoofers designs stuff the motor into a sealed chamber where it bakes in its own heat. The 12SW115's 115mm (4.5 in) split-coil design is the antidote. 3400 Watts of power, an aluminum demodulating ring plus our split voice coil for low Bl and Le distortion, and 13.5mm of Xmax. Not subtle, but maybe exactly what you need.

Click Here for Printer Friendly Version

B&C 12SW115 12-Inch Speaker Driver Features

- 3400 W continuous program power capacity
- 115 mm (4.5 in) copper voice coil
- 40 - 1500 Hz response
- 92 dB sensitivity
- Excursion optimized lead wires (woven through spider)
- FEA optimized Neodymium magnet assembly
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression

B&C 12SW115 12-Inch Speaker Driver Specifications

- Nominal Diameter 320 mm (12 in)
- Minimum Impedance 4.1 Ω
- Continuous Power Handling 3400 W
- Frequency Range 40 Hz - 1500 Hz
- Winding Material Copper
- Winding Depth 34.5 mm (1.36 in)
- Flux Density 1.12 T
- Nominal Impedance 4 Ω
- Nominal Power Handling 1700 W
- Sensitivity 92 dB
- Voice Coil Diameter 115 mm (4.5 in)
- Former Material Glass Fibre
- Magnetic Gap Depth 14 mm (0.55 in)

Design:
- Surround Shape Triple Roll
- Magnet Material Neodymium Inside Slug
- Pole Design T-Pole
- Recommended Loading Vented Box
- Cone Shape Radial
- Spider Double Silicone
- Woofer Cone Treatment TWP Waterproof Both Sides

Thiele and Small parameters:
- Fs 39 Hz
- Qes 0.26
- Qts 0.25
- Sd 522 cm² (80.91 in²)
- Xmax 13.8 mm
- Mms 192 g
- Le 1.35 mH
- Re 3.1 Ω
- Qms 9.8
- Vas 33 dm³ (1.17 ft³)
- ?0 0.77 %
- Xvar 10.5 mm
- Bl 23.8 Tm
- EBP 150 Hz

Mounting And Shipping Info:
- Overall Diameter 315 mm (12.4 in)
- Baffle Cutout Diameter 283 mm (11.1 in)
- Flange and Gasket Thickness 12 mm (0.5 in)
- Net Weight 10.4 kg (22.93 lb)
- Bolt Circle Diameter 298 mm (11.73 in)
- Depth 167 mm (6.6 in)
- Air Volume Occupied by Driver 3.4 dm³ (0.12 ft³)
- Shipping Units 1 pcs

Further Product Information Below

B & C 12SW115 (8 Ohm) Data Sheet (PDF)

B & C 12SW115 Technical Drawing (PDF)
