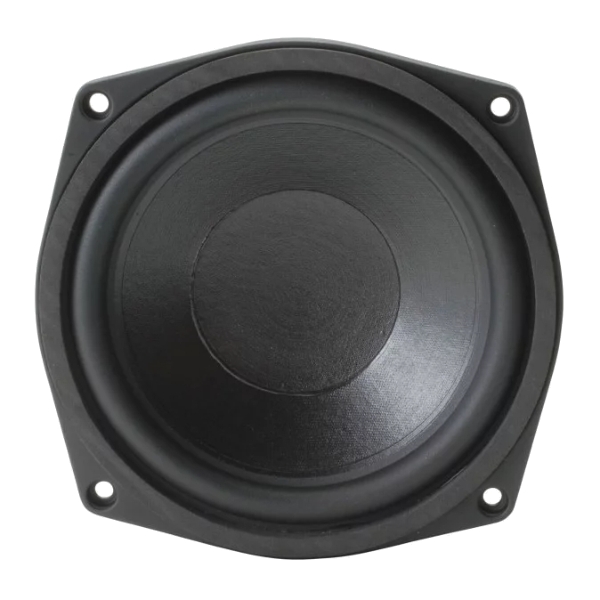

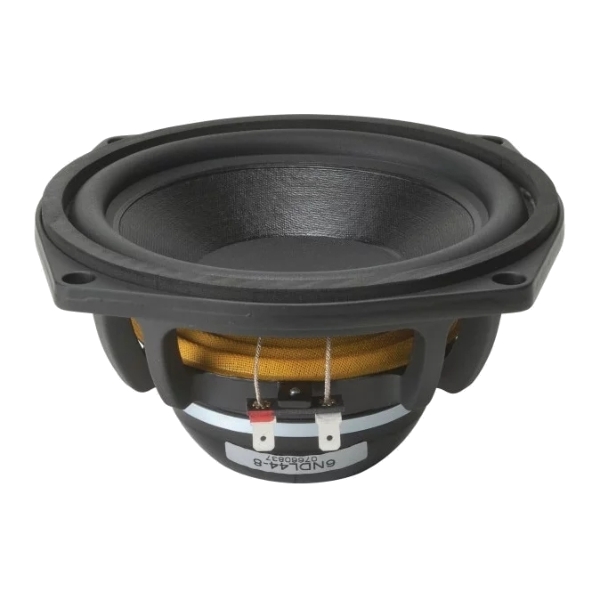

B&C 6NDL44 6-Inch Speaker Driver - 200W RMS, 8 Ohm

B&C 6NDL44 6-Inch Speaker Driver Specifications

- Nominal Diameter: 170 (6.5) mm (in)
- Nominal Impedance: 8 Ω
- Minimum Impedence: 5.8 Ω
- Nominal Power Handling: 200 W
- Continuous Power Handling: 400 W
- Sensitivity (1W/1m): 91.5 dB
- Frequency Range: 70 - 6000 Hz
- Voice Coil Diameter: 44 mm
- Winding Material: Copper
- Former Material: Kapton
- Winding Depth: 12 mm
- Magnetic Gap Depth: 6 mm
- Flux Density 1.25 T

Thiele & Small Parameters:
- Fs: 68 Hz
- Re: 5.0 Ω
- Qes: 0.35
- Qms: 9
- Qts: 0.34
- Vas: 7.5 (0.26) dm³ (ft³)
- Sd: 132 (20.5) cm² (in²)
- Eta Zero: 0.65 %
- Xmax: 6.0 mm
- Xvar: 5.5 mm
- Mms: 17.8 g
- Bl: 10.3 Txm
- Le: 0.57 mH

Mounting and Shipping Info:
- Overall Diameter: 187 mm (7.4 in)
- Bolt Circle Diameter: 172 mm (6.7 in)
- Baffle Cutout Diameter: 145 mm (5.7 in)
- Depth: 82 mm (3.2 in)
- Flange and Gasket Thickness: 11 mm (0.4 in)
- Net Weight: 1.2 kg (2.6 lb)

Further Product Information Below

B & C 6NDL44 (8 Ohm) Data Sheet (PDF)

Please Note: Images are representative only. Final product may vary.
