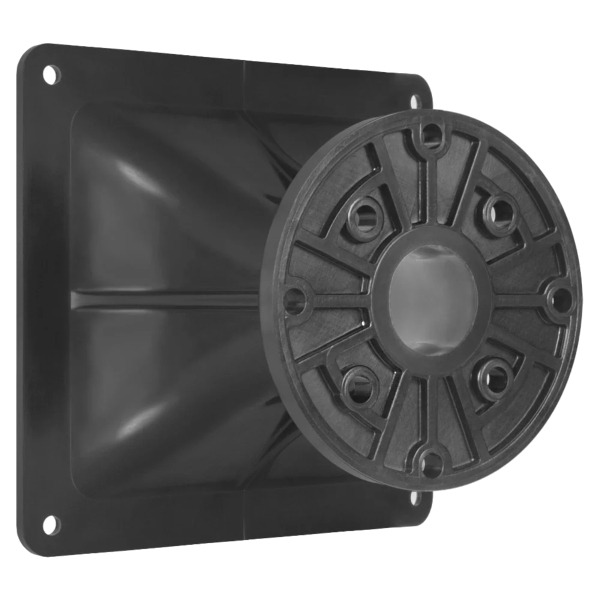

B&C ME10 v3 1-Inch Horn Flare - 90 x 60 Degree Dispersion

Price Each £20.39 (£24.47 Including VAT at 20%)

REF: JP115149

Quantity:

B&C ME10 v3 1-Inch Horn Flare - 90 x 60 Degree Dispersion

The B&C ME10 v3 1-Inch Horn Flare replaces the ME10v2. The revised design adds two additional mounting holes to expand driver compatibility. The ME10v3 should be backwards compatible with most previous applications for the ME10, but we recommend that all users check the product revised drawings, to be certain.

Click Here for Printer Friendly Version

B&C ME10 v3 1-Inch Horn Flare Features

- 1-inch throat entry

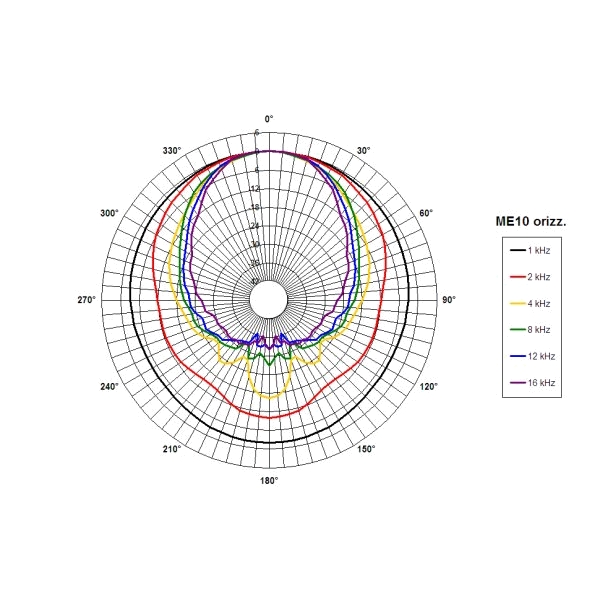

- 90° x 60° nominal coverage
- Hyperbolic Cosine Flare
- Excellent loading down to 1.5 kHz

B&C ME10 v3 1-Inch Horn Flare Specifications

- Throat Diameter 25 mm (1 in)
- Nominal Coverage Vertical 60 °
- Material ABS
- Dimensions 130.5x130.5x90 mm (5.1x5.1x3.5 in)
- Nominal Coverage Horizontal 90 °
- Cutoff Frequency 1.5 kHz
- Design Hyperbolic Cosine Flare

Mounting And Shipping Info:
- Baffle Cutout Dimension 104 mm (4.1 in)
- Net Weight 0.17 kg (0.37 lb)
- Shipping Weight 0.23 kg (0.5 lb)
- Air Volume Occupied by Driver 0.15 dm³ (0.01 ft³)
- Shipping Units 1 pcs
- Shipping Box 165 x 165 x 100 mm (6.50x6.50x3.94 in)

Further Product Information Below

B & C ME10 v3 Data Sheet (PDF)

B & C ME10 v3 Technical Drawing (PDF)
