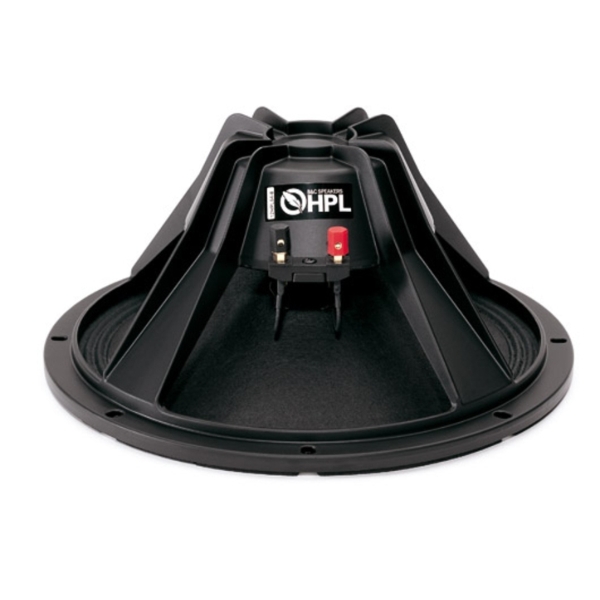

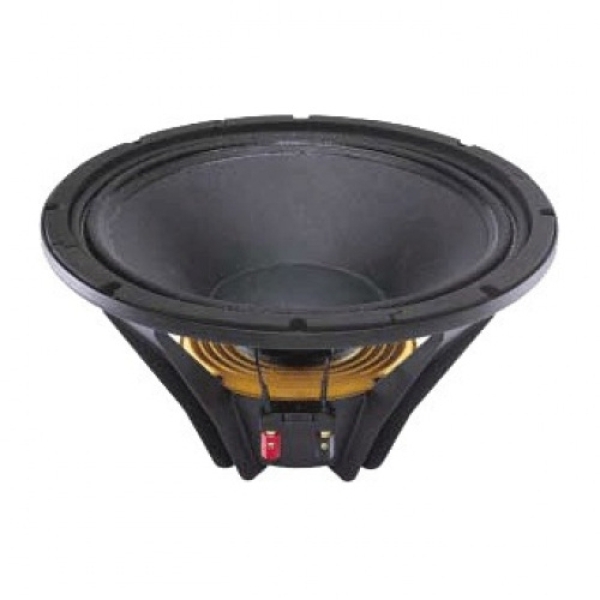

B&C 12HPL64 12-Inch Speaker Driver - 200W RMS, 4 Ohm, Spade Terminals
The B&C 12HPL64 12-Inch Speaker Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.
Recone Kit: JP61488 (B&C RCK12HPL644)
Click Here for Printer Friendly Version
B&C 12HPL64 12-Inch Speaker Driver Features- 400 W continuous program power capacity- 64 mm (2.5 inch) aluminium voice coil- 50 - 4000 Hz response- 100 dB sensitivity- Neodymium magnet allows a very light yet powerful motor assembly
B&C 12HPL64 12-Inch Speaker Driver Specifications- Nominal Basket Diameter: 320 mm (12.6 inches)- Nominal Impedance: 4 Ω- Nominal Power Handling: 200 W- Continuous Power Handling: 400 W- Frequency Response: 50 - 4000 Hz- Sensitivity (1W/1m): 100.0 dB- Voice Coil Diameter: 64 mm (2.5 inches)- Winding Material: Aluminium- Former Material: Glass Fibre- Winding Depth: 13 mm (0.5 inches)- Magnetic Gap Depth: 8 mm (0.31 inches)- Flux Density: 1.25 TDesign:- Surround shape: Triple Roll- Cone shape: Exponential- Magnet material: Neodymium Inside Slug- Spider: Single- Pole design: Straight Pole- Woofer cone treatment: None- Recommended enclosure: 60.0 dm³- Recommended tuning: 60 HzPhysical:- Overall diameter: 315 mm (12.4 inches)- Bolt circle diameter: 296 mm (11.6 inches)- Baffle cutout diameter: 282 mm (11.1 inches)- Depth: 144 mm (5.7 inches)- Flange and gasket thickness: 13 mm (0.5 inches)- Net weight 2.1 kg
Further Product Information Below
B & C 12HPL64 Technical Drawing (PDF)
