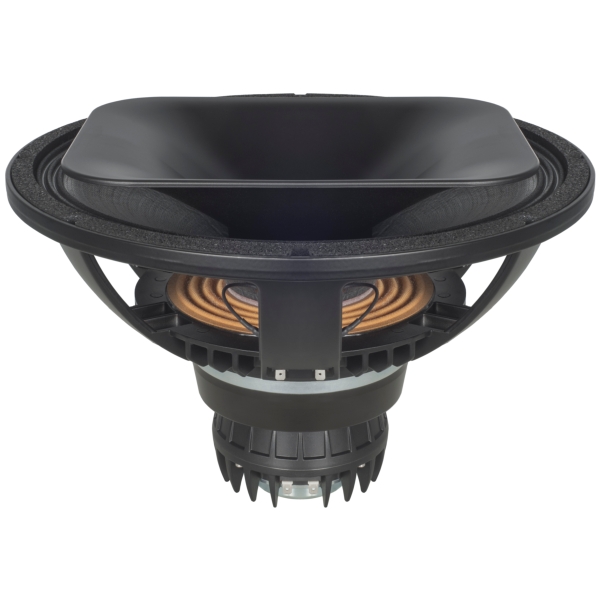

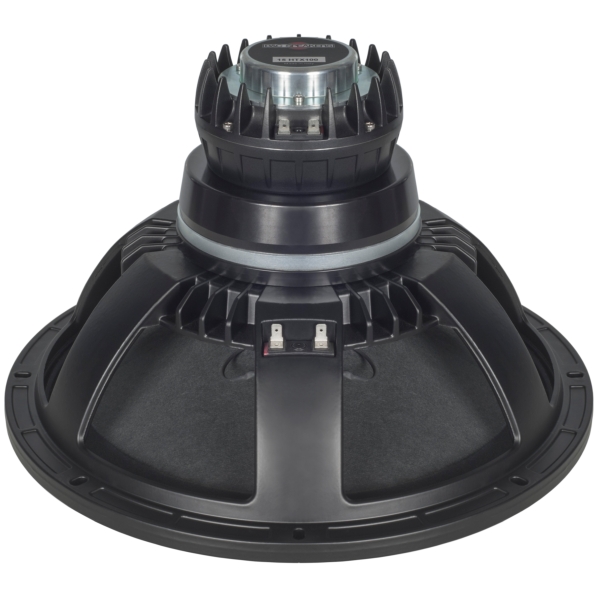

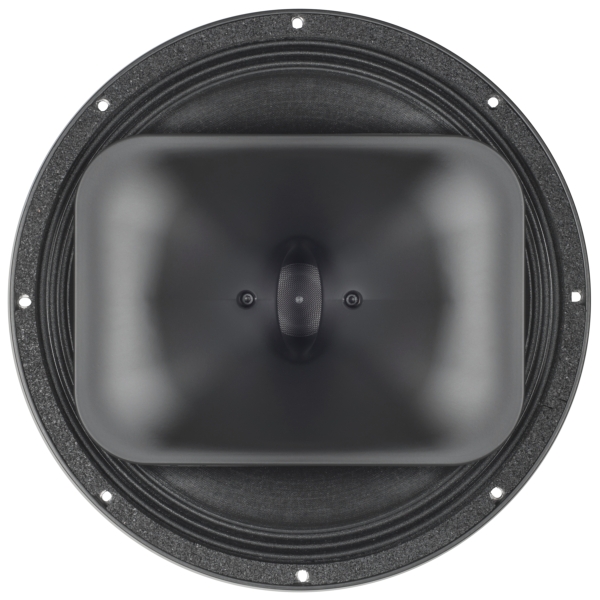

B&C 15HTX100 15-Inch Tri-axial Full Range Speaker - 800W, 8 Ohm

Price Each £554.80 (£665.76 Including VAT at 20%)

REF: JP112264

Quantity:

B&C 15HTX100 15-Inch Tri-axial Full Range Speaker - 800W, 8 Ohm

The B&C 15HTX100 15-Inch Tri-axial Full Range Speaker is a new exponential cone combined with an iteratively optimized 600Hz horn which provides the same wide crossover overlap for the low and mid bandpasses as our DCX354 driver offers in the mid and high bandpasses. Unheard of flexibility, point source impact, and controlled off-axis behavior. Ready to drop in to your most daring applications.

Click Here for Printer Friendly Version

B&C 15HTX100 15-Inch Tri-axial Full Range Speaker Features

- 99 dB (LF), 108.5 dB (MF/HF - DCX354) sensitivity
- 1600 W continuous program power capacity

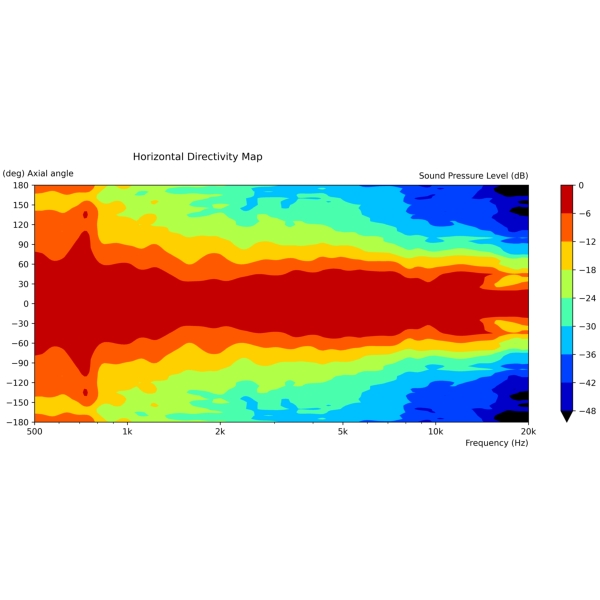

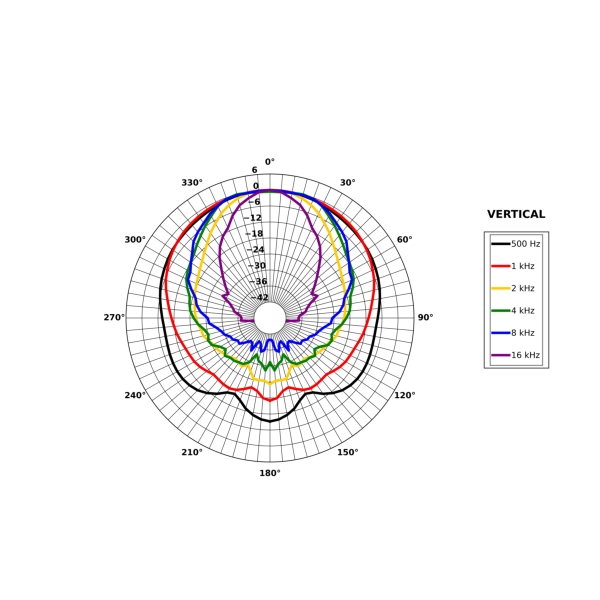

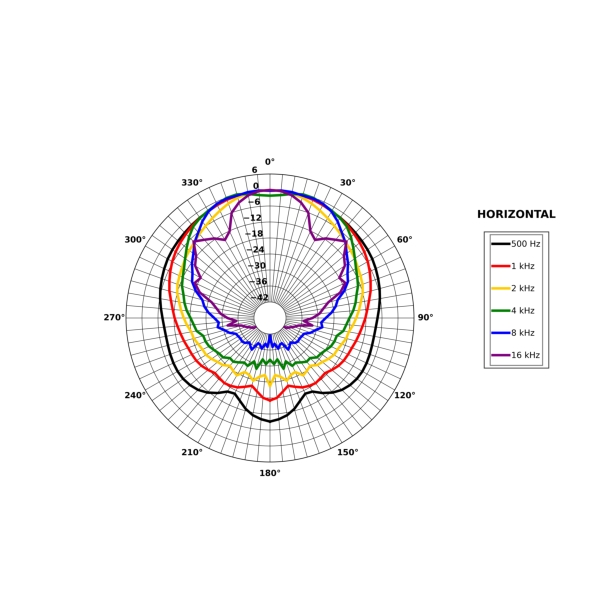

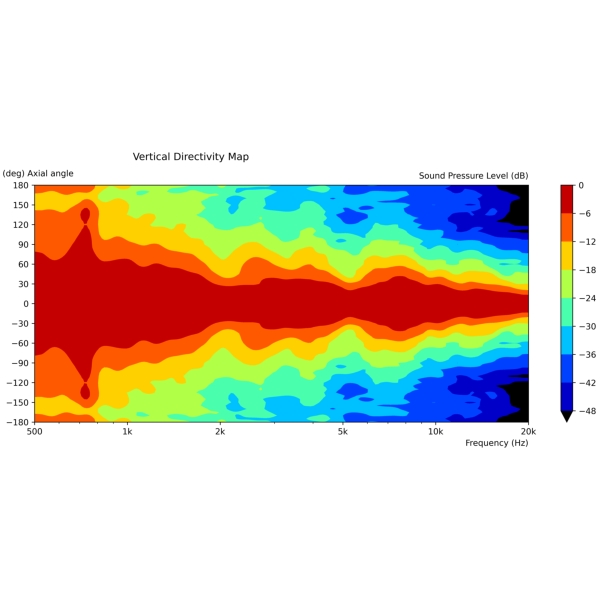

- 60° x 40° nominal coverage

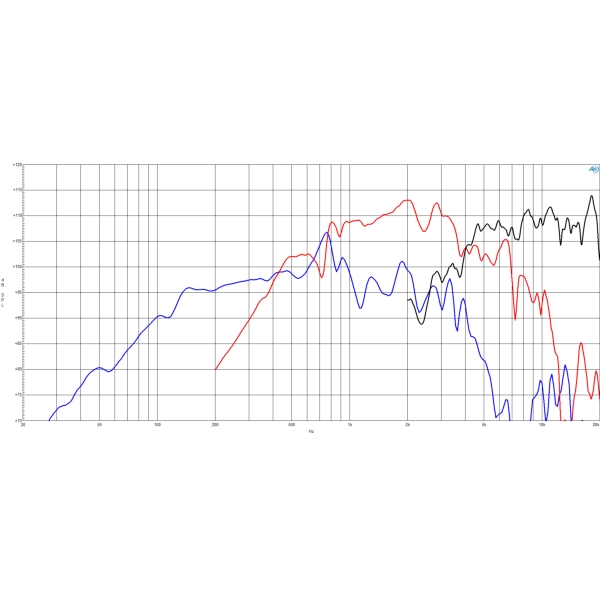

- 52 - 20000 Hz response
- FEA optimized horn flare for improved acoustic loading and controlled coverage
- Double silicone spider with optimized compliance
- Aluminium demodulating ring for very low distortion

B&C 15HTX100 15-Inch Tri-axial Full Range Speaker Specifications

- Nominal Diameter: 380 mm (15 in)
- Dispersion Angle: 60 °
- Frequency Range: 52 Hz - 20000 Hz
- Woofer Cone Treatment: TWP Waterproof Both Sides

Specifications LF unit:
- Nominal Impedance: 8 Ω
- Nominal Power Handling: 800 W
- Sensitivity: 99 dB
- Voice Coil Diameter: 100 mm (4 in)
- Former Material: Glass Fibre
- Magnetic Gap Depth: 10.2 mm (0.4 in)
- Minimum Impedance: 7 Ω
- Continuous Power Handling: 1600 W
- Frequency Range: 52 Hz - 1000 Hz
- Winding Material: Aluminium
- Winding Depth: 25.1 mm (1 in)
- Flux Density: 1.5 T

Specifications MF unit:
- Nominal Impedance: 8 Ω
- Nominal Power Handling: 90 W
- Sensitivity: 108.5 dB
- Recommended Crossover: 0.7 kHz
- Winding Material: Aluminium
- Flux Density: 1.9 T
- Minimum Impedance: 7.5 Ω
- Continuous Power Handling: 180 W
- Frequency Range: 0.5 kHz - 5.5 kHz
- Voice Coil Diameter: 76 mm (3 in)
- Inductance: 0.26 mH
- Diaphragm Material: HT Polymer Ring

Specifications HF unit:
- Nominal Impedance: 8 Ω
- Nominal Power Handling: 50 W
- Sensitivity: 108.5 dB
- Recommended Crossover: 4.5 kHz
- Winding Material: Aluminium
- Flux Density: 1.95 T
- Minimum Impedance: 6.5 Ω
- Continuous Power Handling: 100 W
- Frequency Range: 5 kHz - 20 kHz
- Voice Coil Diameter: 51 mm (2 in)
- Inductance: 0.1 mH
- Diaphragm Material: HT Polymer Ring

Parameters:
- Fs: 52 Hz
- Qes: 0.305
- Qts: 0.29
- Sd: 855 cm² (132.5 in²)
- Xmax: 10 mm (0.4 in)
- Mms: 125 g
- Le: 0.9 mH
- Re: 5.5 Ω
- Qms: 5.9
- Vas: 78 dm³ (2.75 ft³)
- η0: 3.5 %
- Xvar: 8.5 mm
- Bl: 27 Tm
- EBP: 170 Hz

Design:
- Surround Shape: Triple Roll
- Magnet Material: Neodymium Ring
- Pole Design: T-Pole
- Recommended Loading: Vented Box
- Cone Shape: Curvilinear
- Spider: Double Silicone
- Woofer Cone Treatment: TWP Waterproof Both Sides
- Cone Material: Treated Paper

Mounting and Shipping Info:
- Overall Diameter: 393 mm (15.5 in)
- Baffle Cutout Diameter: 355 mm (14 in)
- Flange and Gasket Thickness: 15 mm (0.6 in)
- Bolt Circle Diameter: 372 mm (14.65 in)
- Depth: 261 mm (10.28 in)
- Net Weight: 10.8 kg (23.8 lb)

Further Product Information Below

B & C 15HTX100 (8 Ohm) Data Sheet (PDF)

B & C 15HTX100 Technical Drawing (PDF)
