B&C DE180 1-Inch Compression Driver - 60W RMS, 16 Ohm

B&C DE180 1-Inch Compression Driver Features

- 120 W continuous program power capacity
- 1-inch horn throat diameter
- 44 mm (1.7 inch) aluminium voice coil
- Polyimide diaphragm

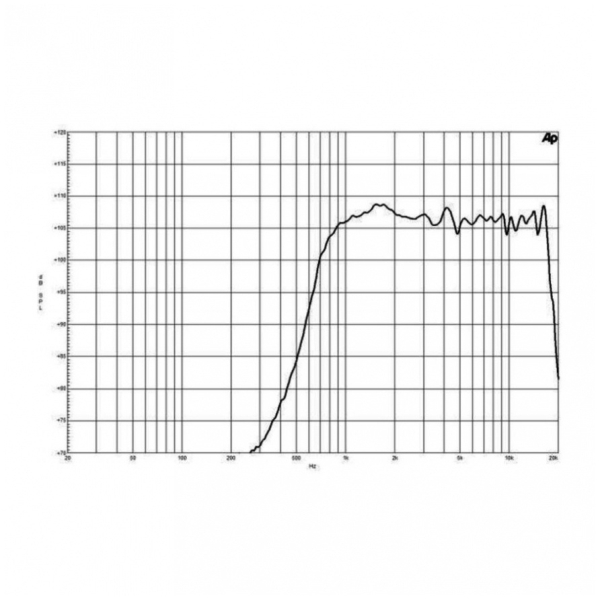

- 1000 - 17000 Hz response
- 106.5 dB sensitivity

B&C DE180 1-Inch Compression Driver Specifications

- Throat Diameter: 25 mm (1 inches)
- Nominal Impedance: 16 Ω
- Nominal Power Handling: 60 W
- Continuous Power Handling: 120 W
- Sensitivity (1W/1m): 106.5 dB
- Frequency Range: 1.0 - 17 kHz
- Recommended Crossover: 2.0 kHz
- Voice coil Diameter: 44 mm (1.7 inches)
- Winding Material: Aluminium
- Diaphragm Material: Polyimide
- Magnet Material: Ferrite

Physical:
- Mounting:
  - Two M6 holes 180° on 76 mm (3 inch) diameter
  - Two M6 Mounting Studs with bolts and washers included
- Overall diameter: 102 mm (4.0 inches)
- Depth: 61 mm (2.4 inches)
- Net weight: 1.7 kg
