B&C DE5 0.5-Inch Compression Driver - 10W RMS, 16 Ohm

Price Each £37.32 (£44.78 Including VAT at 20%)

REF: JP61349

Quantity:

B&C DE5 0.5-Inch Compression Driver - 10W RMS, 16 Ohm

The B&C DE5 boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Click Here for Printer Friendly Version

B&C DE5 0.5-Inch Compression Driver Features

- 20 W continuous program power capacity
- 25 mm (1 inch) aluminium voice coil
- ½-inch horn throat diameter
- Mylar diaphragm
- 2000 - 18000 Hz response
- 109 dB sensitivity

B&C DE5 0.5-Inch Compression Driver Specifications

- Throat Diameter: 13 mm (0.5 inches)

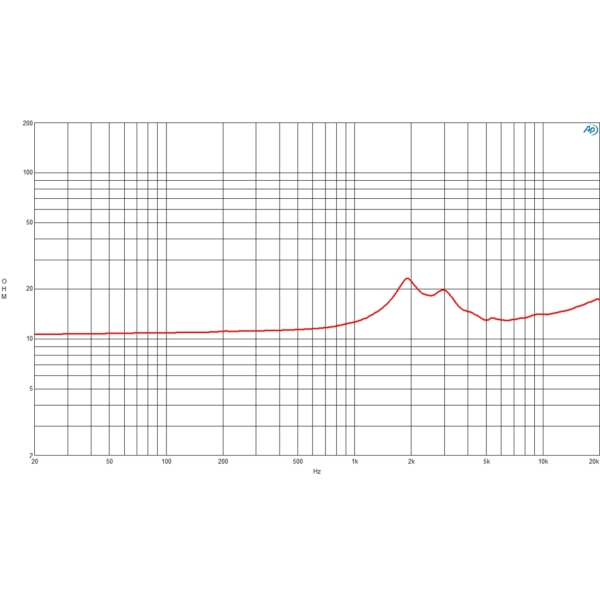

- Nominal Impedance: 16 Ω
- Minimum Impedance: 13 Ω
- Nominal Power Handling: 10 W
- Continuous Power Handling: 20 W

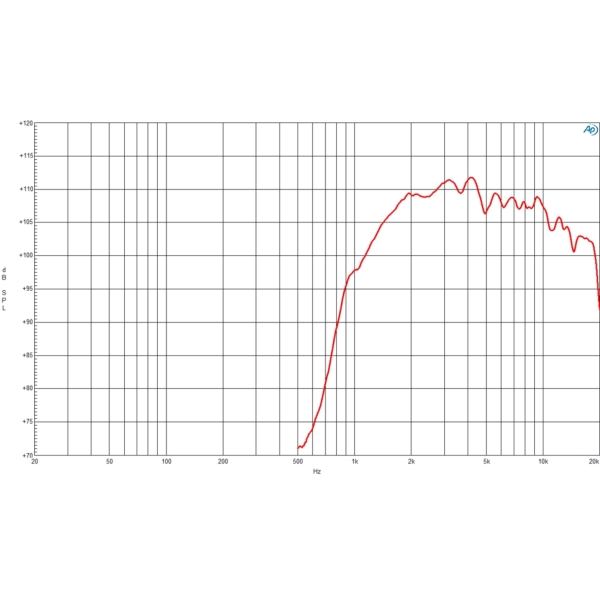

- Sensitivity (1W/1m): 109.0 dB
- Frequency Range: 2 - 18 kHz
- Recommended Crossover: 2.5 kHz
- Voice coil Diameter: 25 mm (1.0 inch)
- Winding Material: Aluminium
- Inductance: 0.14 mH
- Diaphragm Material: Mylar
- Flux Density: 1.65 T
- Magnet Material: Neodymium Ring

Physical:
- Mounting: Two M4 holes 180° on 53 mm (2.1 inch) diameter
- Overall diameter: 62 mm (2.44 inches)
- Depth: 34 mm (1.33 inches)
- Net weight: 0.17 kg

Further Product Information Below

B & C DE5 (16 Ohm) Data Sheet (PDF)

B & C DE5 Technical Drawing (PDF)
