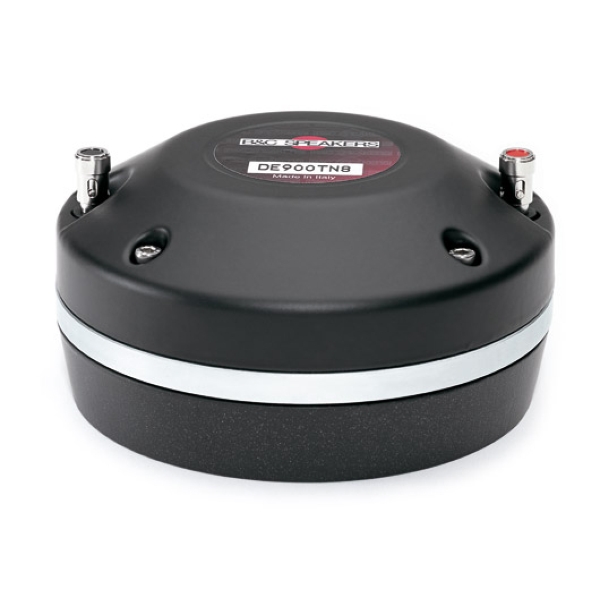

B&C DE900TN 1.4-Inch Compression Driver - 110W RMS, 8 Ohm

B&C DE900TN 1.4-Inch Compression Driver Features

- 220 W continuous program power capacity
- 1.4-inch horn throat diameter
- 75 mm (3 in) aluminium voice coil
- Titanium diaphragm

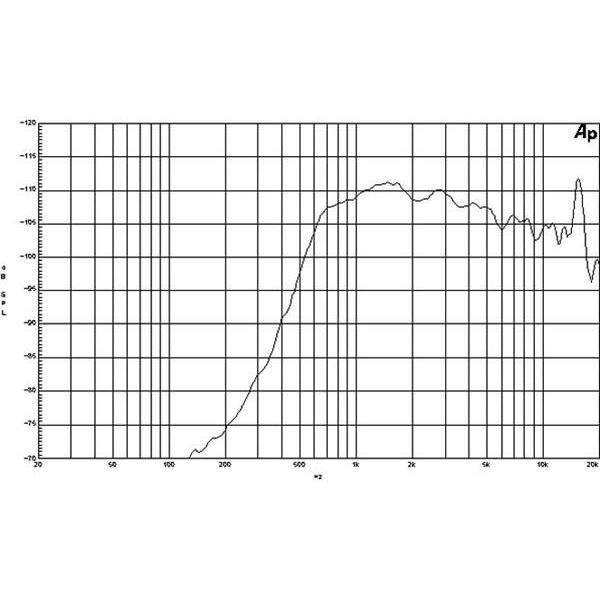

- 500 - 18000 Hz response
- 108.5 dB sensitivity
- Neodymium magnet assembly with shorting copper cap

B&C DE900TN 1.4-Inch Compression Driver Specifications

Specifications:
- Throat Diameter: 36 mm (1.4 in)

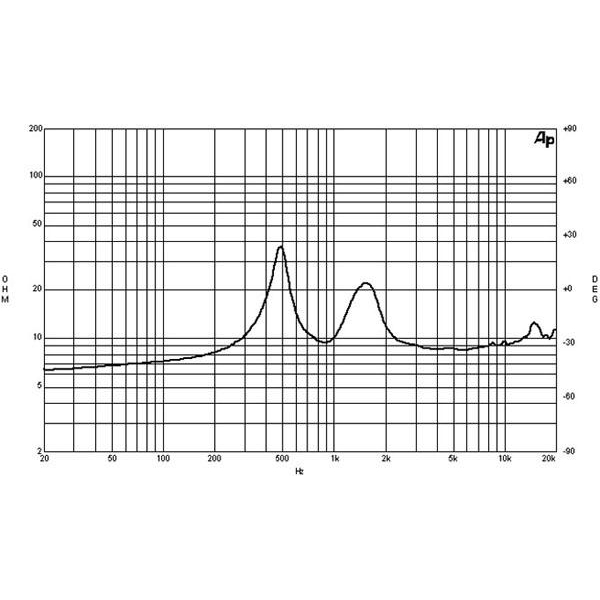

- Minimum Impedance: 7.8 Ω
- Continuous Power Handling: 220 W
- Frequency Range: 1 kHz - 18 kHz
- Voice Coil Diameter: 75 mm (3 in)
- Inductance: 0.14 mH
- Diaphragm Material: Titanium
- Nominal Impedance: 8 Ω
- Nominal Power Handling: 110 W
- Sensitivity: 108.5 dB
- Recommended Crossover: 1.2 kHz
- Winding Material: Aluminium
- Flux Density: 2.05 T

Mounting and Shipping Info:
- Overall Diameter: 131 mm (5.2 in)
- Net Weight: 2.55 kg (5.62 lb)
- Depth: 65 mm (2.6 in)

Further Product Information Below

B & C DE900TN (8 Ohm) Data Sheet (PDF)

B & C DE900TN Technical Drawing (PDF)
