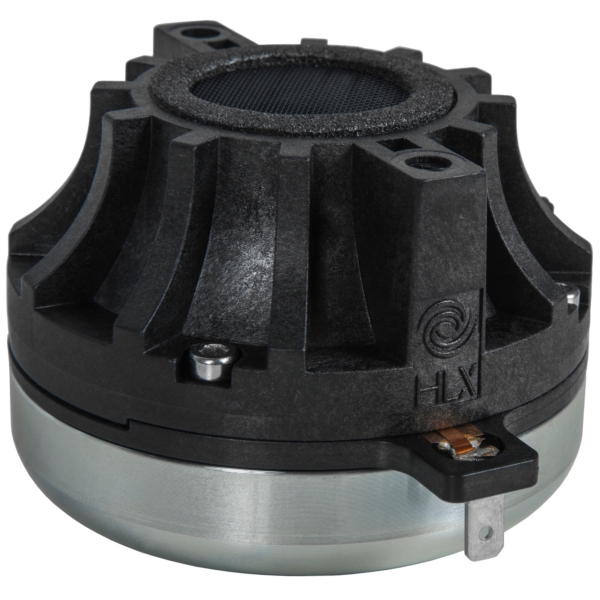

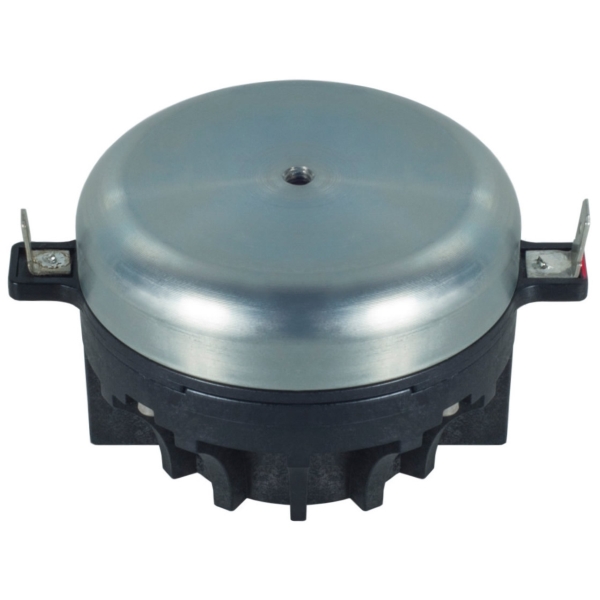

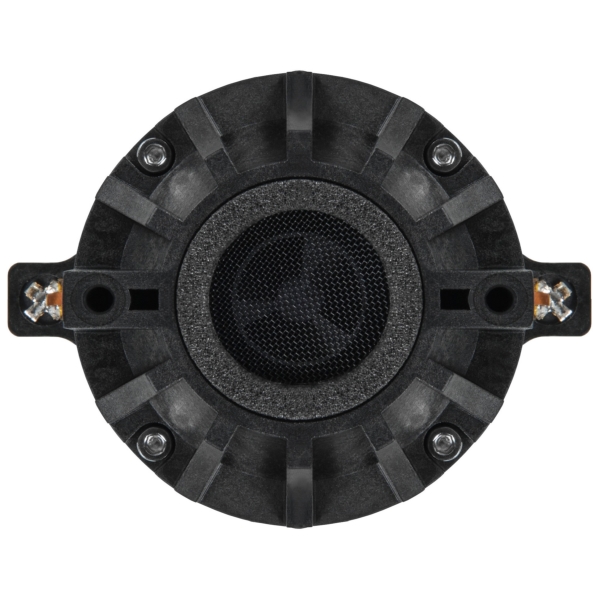

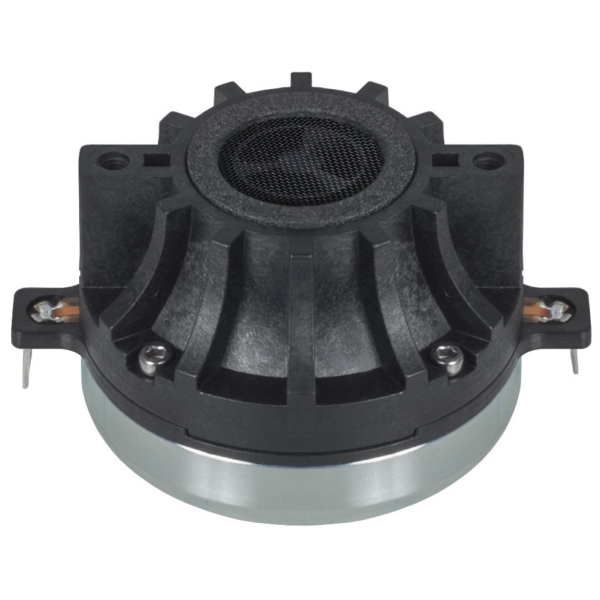

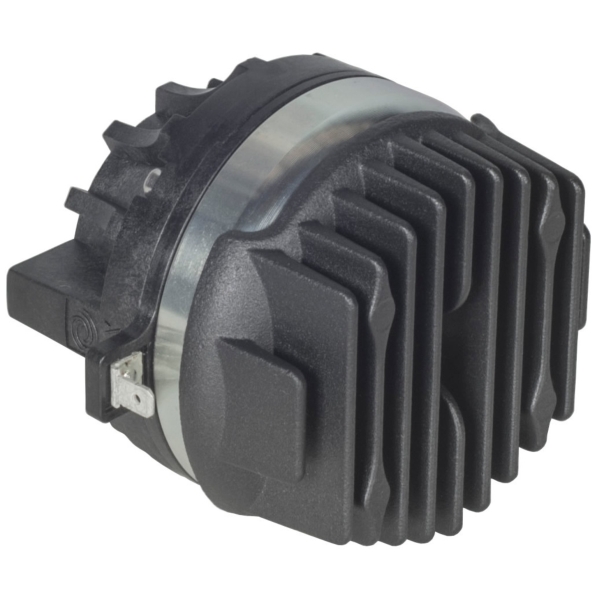

B&C DH450 1-Inch Compression Driver - 20W RMS, 8 Ohm

Price Each £54.30 (£65.16 Including VAT at 20%)

REF: JP112271

Quantity:

B&C DH450 1-Inch Compression Driver - 20W RMS, 8 Ohm

The B&C DH450 1-Inch Compression Driver. B&C has a reputation for performance, by turning the limits of traditional compression driver design on their head. HLX : Compression driver efficiency in miniature. The HLX phase plug (US Patent #12149906) has a central channel that is twisted, like DNA, to gain the length required to match the outer channels. This technique works with standard, cost-effective injection mold tooling and plastics by rotating the inner die along a screw profile. The convex dome design, so achieved, has a number of significant cost and performance advantages.

Click Here for Printer Friendly Version

B&C DH450 1-Inch Compression Driver Features

- Very Compact 69 mm diameter
- 40 W continuous program power capacity
- 1-inch horn throat diameter
- 44 mm (1.7 in) aluminium voice coil
- HT Polymer diaphragm

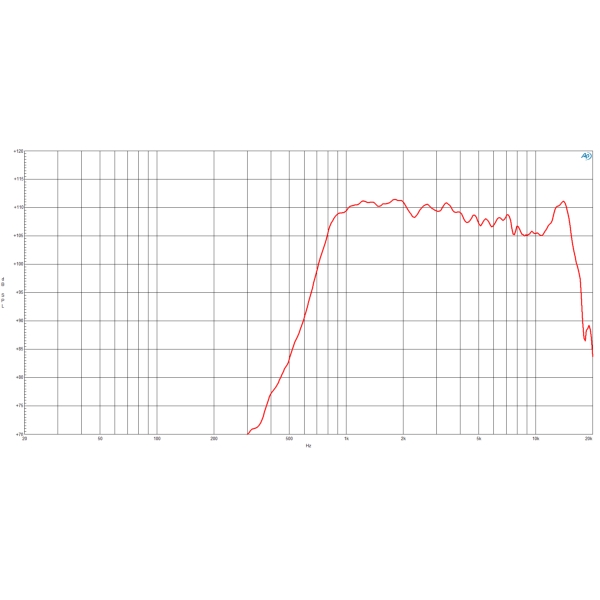

- 1000 - 18000 Hz response
- 109 dB sensitivity

B&C DH450 1-Inch Compression Driver Specifications

Specifications:
- Throat Diameter: 25 mm (1 in)

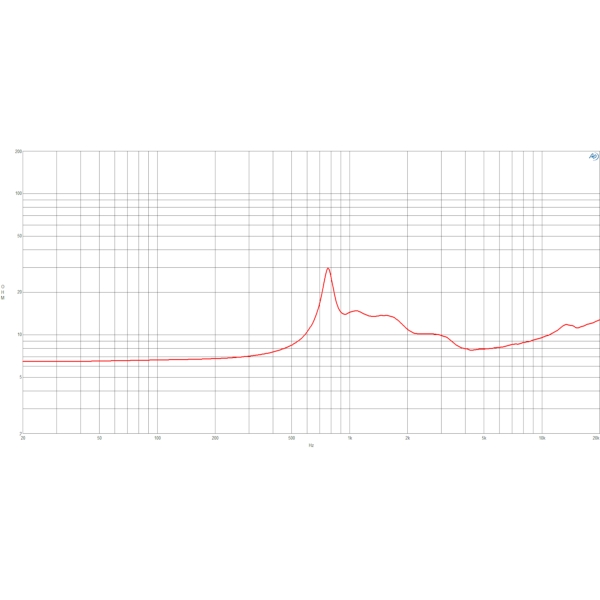

- Minimum Impedance: 7.8 Ω
- Continuous Power Handling: 40 W
- Frequency Range: 1 kHz - 18 kHz
- Voice Coil Diameter: 44 mm (1.7 in)
- Inductance: 0.16 mH
- Diaphragm Material: HT Polymer
- Nominal Impedance: 8 Ω
- Nominal Power Handling: 20 W
- Sensitivity: 109 dB
- Recommended Crossover: 1 kHz
- Winding Material: Aluminium
- Flux Density: 1.9 T

Mounting and Shipping Info:
- Overall Diameter: 69 mm (2.72 in)
- Net Weight: 0.53 kg (1.16 lb)
- Depth: 48 mm (1.89 in)

Further Product Information Below

B & C DH450 (8 Ohm) Data Sheet (PDF)

B & C DH450 Technical Drawing (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

B&C DH450 1-Inch Compression Driver - 20W RMS, 8 Ohm

Related products:

B&C DH450H 1-Inch Compression Driver - 40W RMS, 8 Ohm

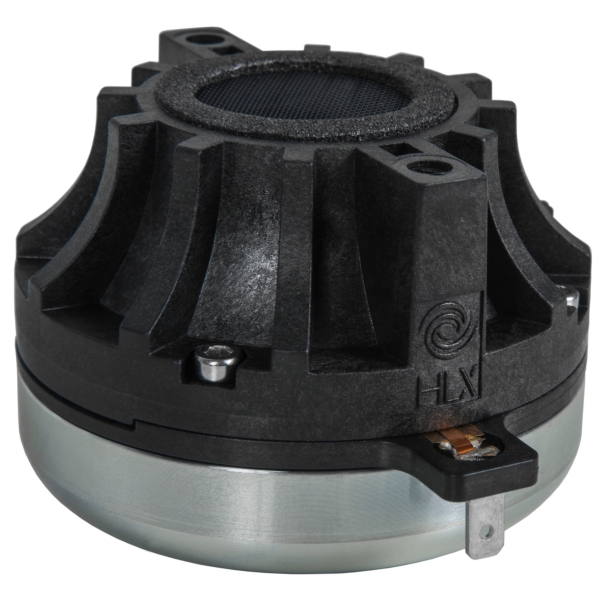

B&C DH450 1-Inch Compression Driver - 20W RMS, 16 Ohm

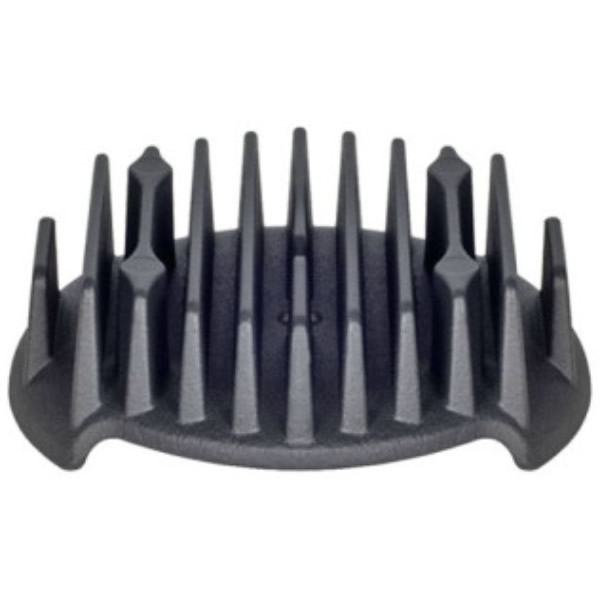

B&C DH450HSK Heat Sink for B&C DH450 Compression Driver
