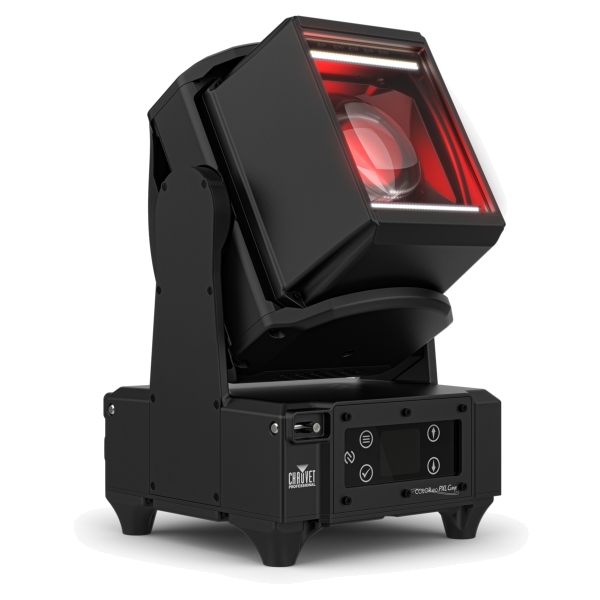

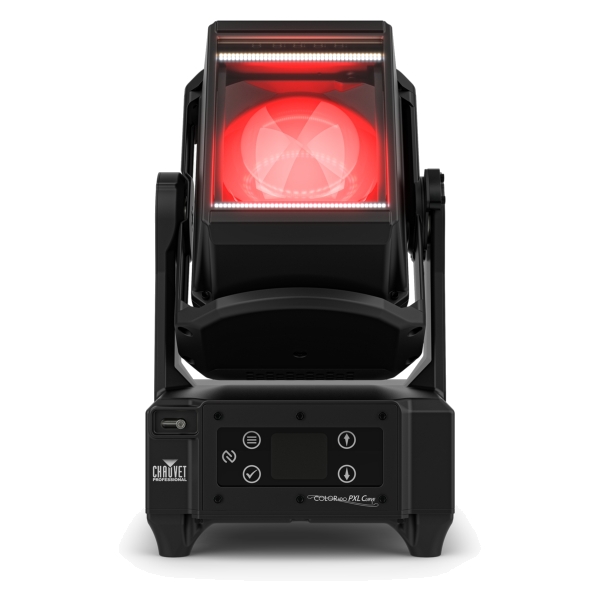

Chauvet Pro COLORado PXL Curve 1 RGBW Arrayable Motorised Batten - IP65

Chauvet Pro COLORado PXL Curve 1 RGBW Arrayable Batten Features

- Fully featured IP65 rated with single (120W) RGBW LED and two linear four cell CW and WW Strobe LEDs wash and beam fixture with pan and tilt functionality with the ability to maintain pixel pitch when using multiple fixtures together
- Quick and quiet operation of 200° of tilt and 60° of pan
- 8 section control of Warm White and Cool White strobe cells.
- Lightweight and compact makes fixtures easily rigged together in any environment
- DMX, SACN, and Art-Net, control for full flexibility
- RDM and NFC Enabled for remote addressing and trouble shooting
- IP65-rated 5 pin DMX and TCP/IP input/output ports
- Slotted Omega bracket for easy hanging on truss

Chauvet Pro COLORado PXL Curve 1 RGBW Arrayable Motorised Batten Specifications

Optical:
- Light Source: 1 LED (quad-colour RGBW) 120 W, (5 A), 50,000 hours life expectancy
- Light Source: 160 SMD-LEDs (80 CW, 80 WW), 50,000 hours life expectancy
- Colour Temperature (at full): 22,089 K
- Beam Angle (without strobe): 3.4 - 30.2°
- Beam Angle (with strobe): 3.4 - 32.1°
- Field Angle (without strobe): 4.4 - 38.7°
- Field Angle (with strobe): 4.3 - 66.3°
- Cutoff Angle (without strobe):4.7 - 40.8°
- Cutoff Angle (with strobe): 4.6 - 144.3°
- Zoom Range (without strobe): 3.4 - 40.8°
- Zoom Range (with strobe): 3.4 - 144.3°
- Lumens (without strobe): 1,558
- Lumens (with strobe): 4,630
- Illuminance without strobe (3.4°): 14,009 lux @ 5 m

Dynamic Effects:
- Pan and Tilt: 60°/190°
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorised/Manual
- Strobe Rate: 0 to 25 Hz
- Colour Temperature Presets: Yes
- Move-in-Black: Yes
- Dim Modes: 2
- Dim Curves: 4

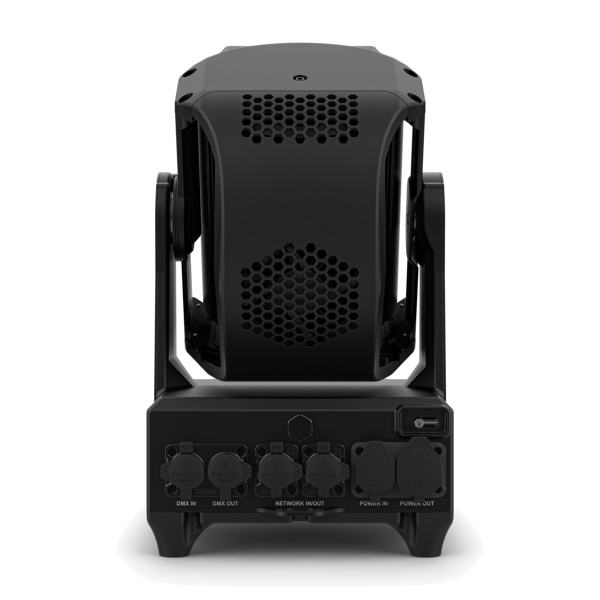

Connections:
- Power Input: Seetronic Powerkon
- Power Output: Seetronic Powerkon
- Data Connectors: 5-pin IP65 XLR, etherCON
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: [Art-Net, sACN, DMX, RDM, NFC]
- DMX Channels: 24 or 45
- Art-Net Channels: 24 or 45
- Modes/Personalities: 2 personalities (24, 45)

Construction / Physical:
- Dimensions:199 x 215 x 330 mm
- Weight: 6.8 kg

Further Product Information Below

Chauvet Pro COLORado PXL Curve 1 Quick Reference Guide (PDF)

Chauvet Pro COLORado PXL Curve 12 DMX Chart (PDF)

Chauvet Pro COLORado PXL Curve 1 RGBW Arrayable Motorised Batten Supplied With

- Chauvet COLORado PXL CURVE 1
- Power Cord
- Omega bracket with mounting hardware
