Citronic LFHF-CM12A Coaxial LF+HF Driver for CM12 Active Speaker, 350W @ 4 Ohm

Name: Citronic LFHF-CM12A Coaxial LF+HF Driver for CM12 Active Speaker, 350W @ 4 Ohm
Brand: Citronic
Price: 89.86 GBP
Availability: InStock

Price Each £74.88 (£89.86 Including VAT at 20%)

REF: JP113379

Quantity:

Citronic LFHF-CM12A Coaxial LF+HF Driver for CM12 Active Speaker, 350W @ 8 Ohm

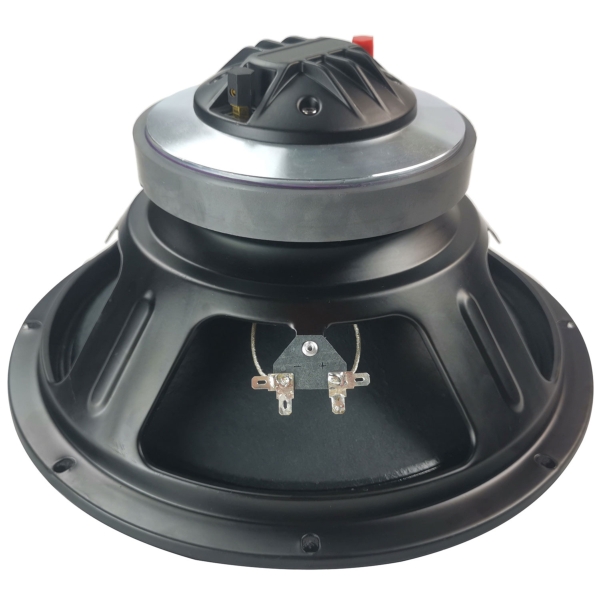

The Citronic LFHF-CM12A Coaxial LF+HF Driver for CM12 Active Speaker is a coaxial driver comprising a high power main woofer with a concentric tweeter driver covered by a mesh dust cap. Provides full range output with phase alignment for foldback or PA applications. A direct replacement for the CM-series active and passive wedge monitors.

Click Here for Printer Friendly Version

Citronic LFHF-CM12A Coaxial LF+HF Driver for CM12 Active Speaker Features

- High power woofer with coaxial HF driver
- 4ohm for CM-Series active speakers

Citronic LFHF-CM12A Coaxial LF+HF Driver for CM12 Active Speaker Specifications

- Frequency response: 45Hz - 20kHz
- Sensitivity: 96dB (LF), 108dB (HF)
- Power handling:
- Max: 600W (LF), 90W (HF)
- RMS: 300W (LF), 45W (HF)
- Impedance: 4 ohms
- HF driver: 44mmØ (1.75") Ti compression driver
- Main driver: 300mmØ (12") reinforced paper cone
- Dimensions: 165 x 300mmØ
- Weight: 4.7kg

Further Product Information Below

Citronic CM Series Speakers Manual (PDF)
