Ecler AMBIT-13 3.5-Inch Passive Speaker, 25W @ 8 Ohms or 70V / 100V Line - Black, IP54 (Pair)

Name: Ecler AMBIT-13 3.5-Inch Passive Speaker, 25W @ 8 Ohms or 70V / 100V Line - Black, IP54 (Pair)
Brand: Ecler
Price: 129.54 GBP
Availability: InStock

Price per Pair £107.95 (£129.54 Including VAT at 20%)

REF: JP115334

Quantity:

Ecler AMBIT-13 3.5-Inch Passive Speaker, 25W @ 8 Ohms or 70V / 100V Line - Black, IP54 (Pair)

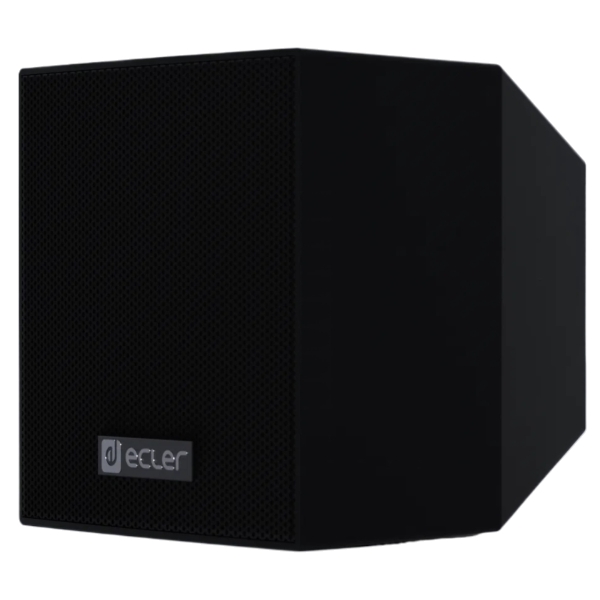

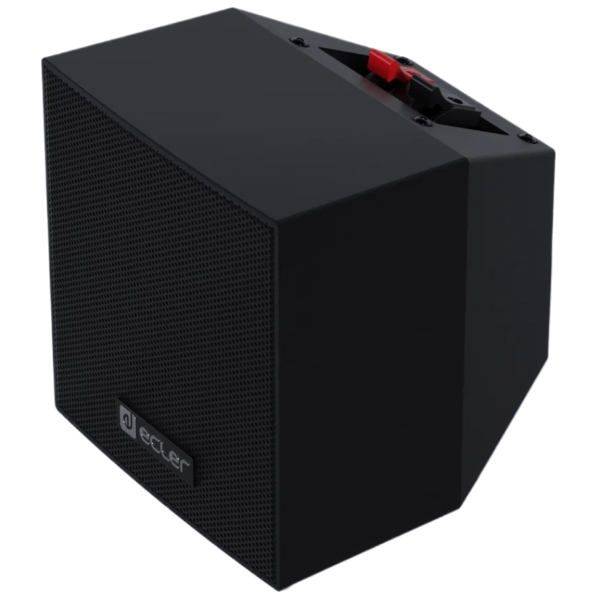

The Ecler AMBIT-13 3.5-Inch Passive Speaker is an ultra-compact 2-way coaxial loudspeaker cabinet with neutral and discreet design. It features a 3.5-inch woofer and a 0.5-inch tweeter and it is suitable for low and high impedance lines. It is ready for indoor and outdoor applications, thanks to its aluminium grill and UV protection treatment (IP54-rated). Wall mount accessories and safety sling are included for an easy and secure installation. It is especially suitable for background music reinforcement in retail shops, restaurants, cafés, corporate premises and education rooms.

Supplied in Pairs

Click Here for Printer Friendly Version

Ecler AMBIT-13 3.5-Inch Passive Speaker Features

- ABS 2-way, 25WRMS architectural loudspeaker
- 3.5-Inch woofer / 0.5-Inch tweeter
- Built-in audio transformer for 100V
- 8 ohm and 70/100V operation selector
- Includes on-wall hardware, safety sling, screws and wrench for fast installation
- Available in black (RAL 9005) and white (RAL 9016)
- Spring loaded input terminals
- IP54 rated
- Anti UV cabinet avoids colour degradation in case of direct sunlight exposition

Ecler AMBIT-13 3.5-Inch Passive Speaker Specifications

System:
- Effective Freq. Range: 120Hz-22kHz (-10dB)
- Coverage angle / Dispersion: 180° H x 180° V
- Power handling: 25W RMS / 50W Program / 100W Peak
- Sensitivity: 87dB
- Maximum SPL: 101dB continuous / 107dB peak
- Power options (Hi Z Multi-tap):
- 100V: 15W / 7.5W / 5W /2.5W / 8Ω
- 70V: 7.5W / 5W /2.5W /1.25W / 8Ω
- Recommended amplifier power: 50W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 3.5-inch Woofer
- High frequency driver: 0.5-inch Tweeter
- Nominal impedance: 8 Ω

Physical:

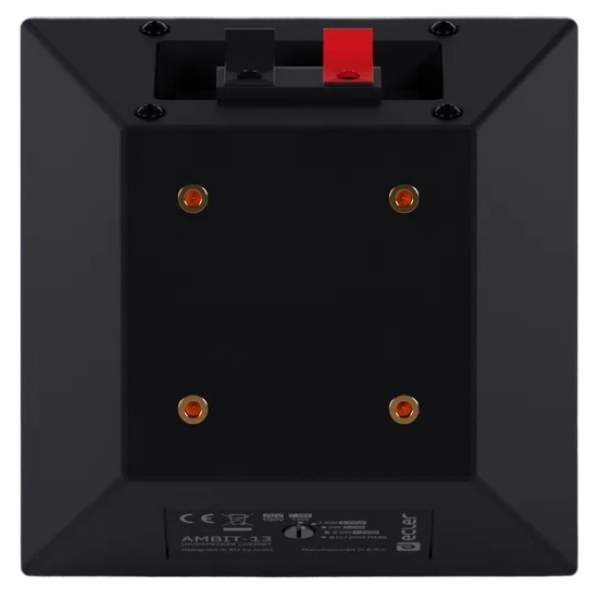

- Connection type: Spring loaded input terminals
- Installation options: Surface, Ceiling, Corner (wall mount)
- Environmental: IP54
- Enclosure material: ABS plastic
- Grille material: Aluminium

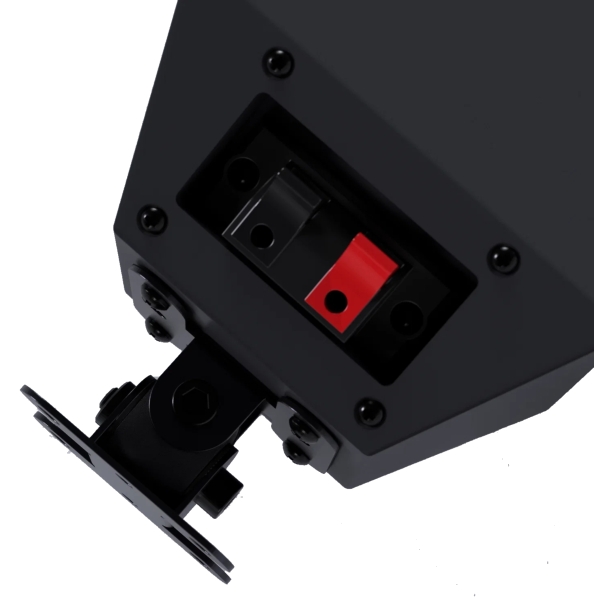

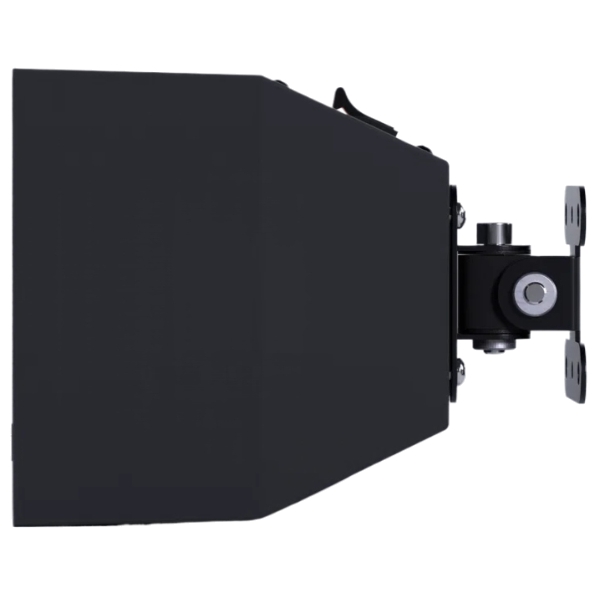

- Mounting system: Wall Bracket
- Operating temperature: Min: -20°C / -4°F Max: 70°C / 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C / -4°F Max: 70°C / 158°F
- Storage humidity: <90% HR
- Included accessories: Includes
- Finished colour: Black (RAL 9005)
- Dimensions: 120 x 120 x 117mm
- Weight: 1.275kg
- Pieces per box: 2

Further Product Information Below

Ecler AMBIT-13 Manual (PDF)

Ecler AMBIT-13 Data Sheet (PDF)

Ecler AMBIT-13 Technical Drawing (PDF)

Ecler AMBIT-13 3.5-Inch Passive Speaker Supplied With

- On-wall hardware
- Safety sling
- Screws and wrench for fast installation
- Waterproof rubber cover for connectors
