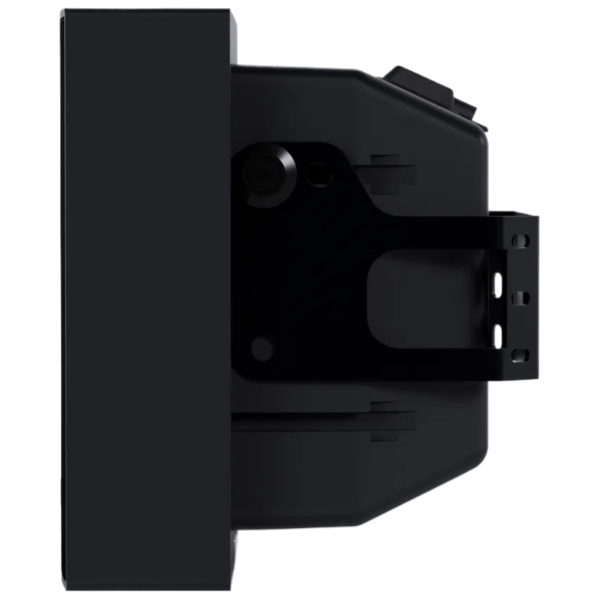

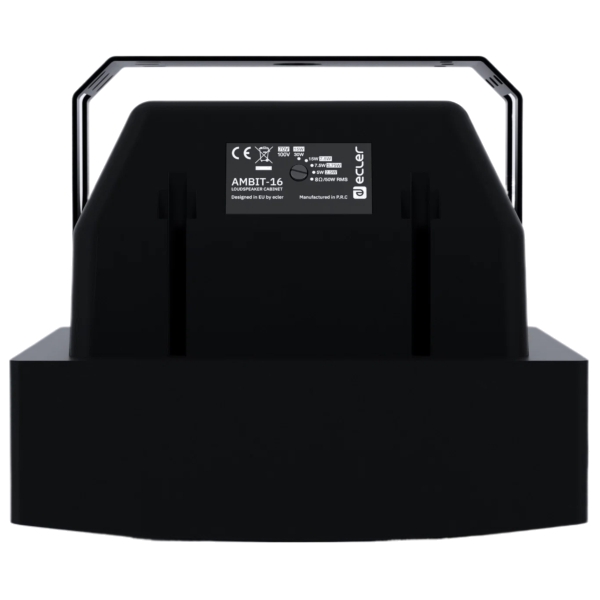

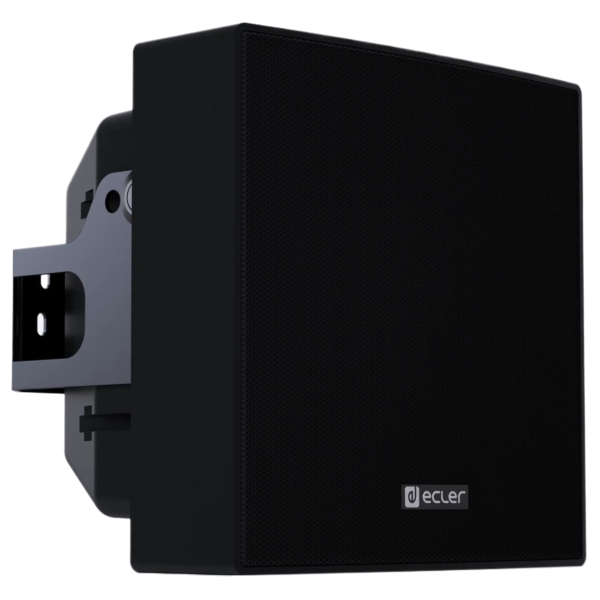

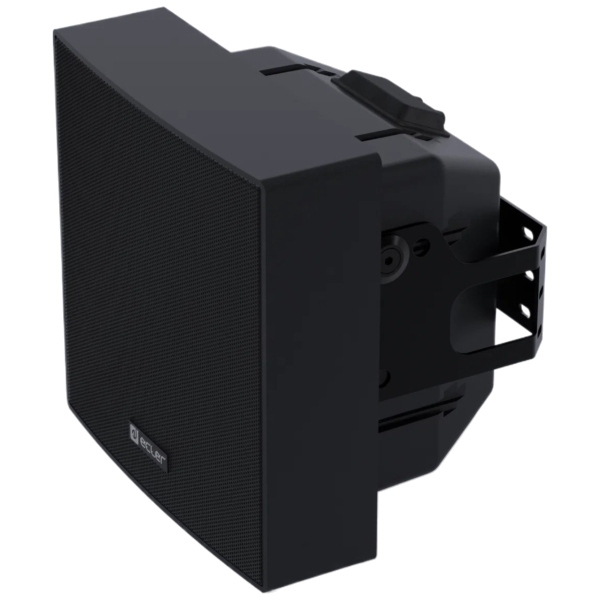

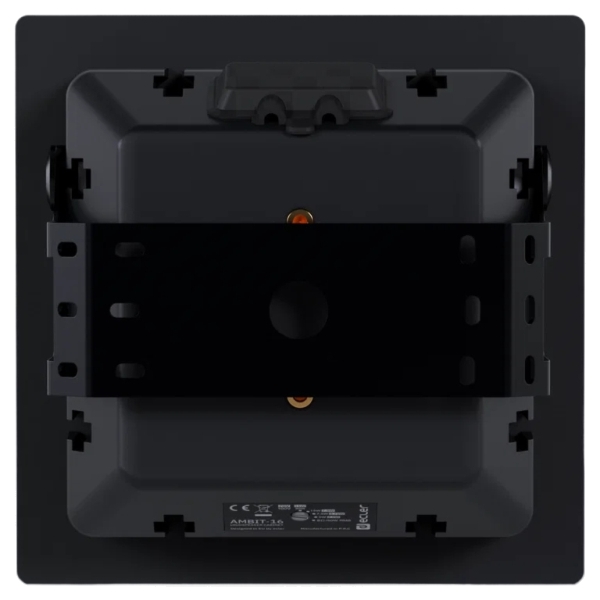

Ecler AMBIT-16 6.5-Inch Passive Speaker, 50W @ 8 Ohms or 70V / 100V Line - Black, IP54 (Pair)

Ecler AMBIT-16 6.5-Inch Passive Speaker Features

- ABS 2-way architectural loudspeaker
- 6.5-inch woofer / 1-inch tweeter
- Built-in audio transformer for 100V applications
- 8Ω and 70/100V operation selector
- Available in black (RAL 9005) and white (RAL 9016) colours
- Spring loaded input terminals
- IP54 rated
- Anti UV cabinet avoids colour degradation in case of direct sunlight exposition
- Waterproof rubber cover for connectors included

Ecler AMBIT-16 6.5-Inch Passive Speaker Specifications

System:
- Effective Freq. Range: 97Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 143°x140° (HxV)
- Power handling: 50W RMS / 200W Peak
- Sensitivity: 91dB (1W/1m)
- Maximum SPL: 108dB continuous / 114dB peak
- Power options (Hi Z Multi-tap):
  - 100V: 5W / 7.5W / 15W / 30W
  - 70V: 2.5W / 3.75W / 7.5W / 15W
- Recommended amplifier power: 100W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 6.5-inch woofer
- High frequency driver: 1-inch tweeter
- Nominal impedance: 8 Ω

Physical:
- Connection type: Spring loaded input terminals
- Installation options: Surface, ceiling, corner (wall mount)
- Environmental: IP54 rated
- Enclosure material: ABS plastic
- Grille material: Aluminium
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: Black (RAL 9005)
- Dimensions: 210 x 210 x 160mm (WxHxD)
- Weight: 2.75kg
- Pieces per box: 2

Further Product Information Below

Ecler AMBIT-16 Manual (PDF)

Ecler AMBIT-16 Data Sheet (PDF)

Ecler AMBIT-16 Technical Drawing (PDF)

Ecler AMBIT-16 6.5-Inch Passive Speaker Supplied With

- On-wall hardware
- Safety sling
- Screws and wrench for fast installation
- Waterproof rubber cover for connectors
