Ecler AMBIT-18 8-Inch Passive Speaker, 100W @ 8 Ohms or 70V / 100V Line - White, IP54 (Pair)

Ecler AMBIT-18 8-Inch Passive Speaker Features

- ABS 2-way architectural loudspeaker
- 8-inch woofer / 1.18-inch dome tweeter
- Built-in audio transformer for 100V applications
- 8Ω and 70/100V operation selector
- Available in black (RAL 9005) and white (RAL 9016) colours
- Spring loaded input terminals
- IP54 rated
- Anti UV cabinet avoids colour degradation in case of direct sunlight exposition
- Waterproof rubber cover for connectors included

Ecler AMBIT-18 8-Inch Passive Speaker Specifications

System:
- Effective Freq. Range: 75Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 125°x120° (HxV)
- Power handling: 100W RMS / 400W Peak
- Sensitivity: 90dB (1W/1m)
- Maximum SPL: 110dB continuous / 116dB peak
- Power options (Hi Z Multi-tap):
  - 100V: 60W / 30W / 15W / 7.5W / 8 Ω
  - 70V: 30W / 15W / 7.5W / 3.75W / 8 Ω
- Recommended amplifier power: 200W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 8-inch Woofer
- High frequency driver: 1.18-inch Dome Tweeter
- Nominal impedance: 8 Ω

Physical:
- Connection type: Spring loaded input terminals
- Installation options: Surface (wall mount)
- Environmental: IP54 rated
- Enclosure material: ABS plastic
- Grille material: Aluminium
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: White (RAL 9016)
- Dimensions: 258 x 258 x 225mm (WxHxD)
- Weight: 5.6 Kg
- Pieces per box: 2

Further Product Information Below

Ecler AMBIT-18 Manual (PDF)

Ecler AMBIT-18 Data Sheet (PDF)

Ecler AMBIT-18 Technical Drawing (PDF)

Ecler AMBIT-18 8-Inch Passive Speaker Supplied With

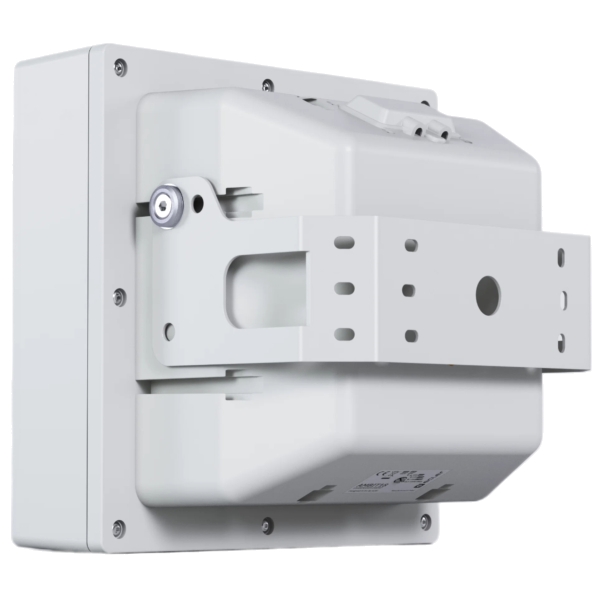

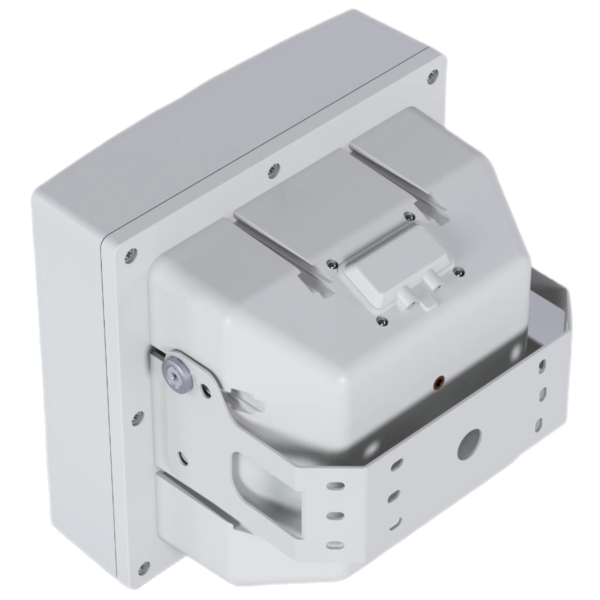

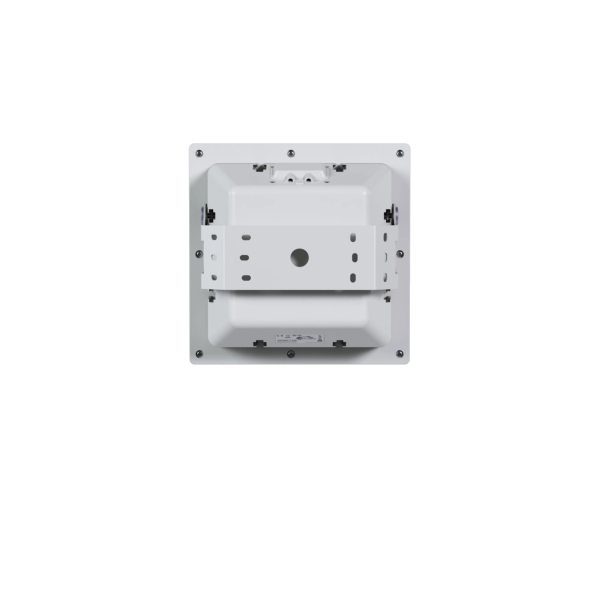

- On-wall hardware
- Safety sling
- Screws and wrench for fast installation
- Waterproof rubber cover for connectors
