Ecler ARQIS 105i 5-Inch 2-Way Passive Speaker, 70W @ 8 Ohms - White

Name: Ecler ARQIS 105i 5-Inch 2-Way Passive Speaker, 70W @ 8 Ohms - White
Brand: Ecler
Price: 220.8 GBP
Availability: InStock

Price Each £184.00 (£220.80 Including VAT at 20%)

REF: JP115341

Quantity:

Ecler ARQIS105i 5-Inch Passive Speaker, 70W @ 8 Ohms - White

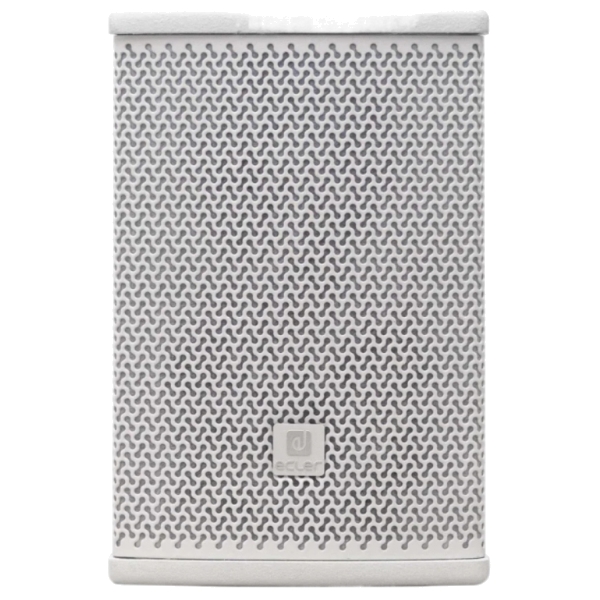

The Ecler ARQIS 105i 5-Inch 2-Way Passive Speaker is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 70W RMS @ 8Ω, 5.25-inch woofer and 1-inch HF tweeter. Its VEASY wall bracket included (VESA compatible), allows for pan & tilt adjustment, employing a single screw for fastening.

ARQISi Series has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Click Here for Printer Friendly Version

Ecler ARQIS 105i 5-Inch 2-Way Passive Speaker Features

- Full range, 2-way architectural loudspeaker
- 70W RMS @ 8Ω
- 5.25-inch low frequency woofer
- 1-inch high frequency tweeter

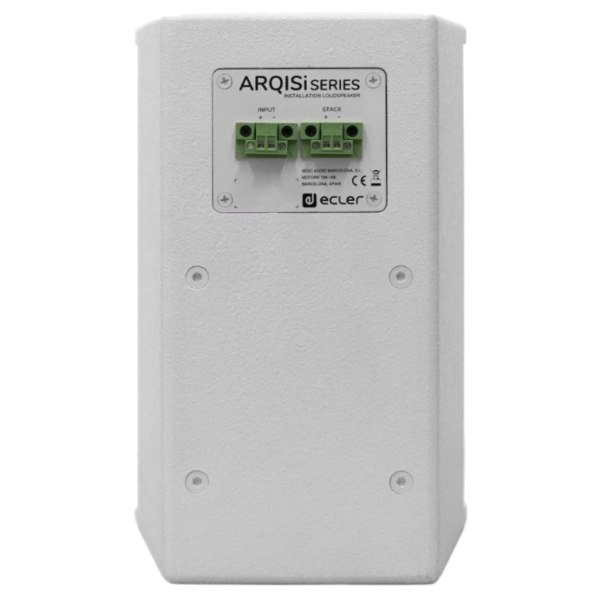

- Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection

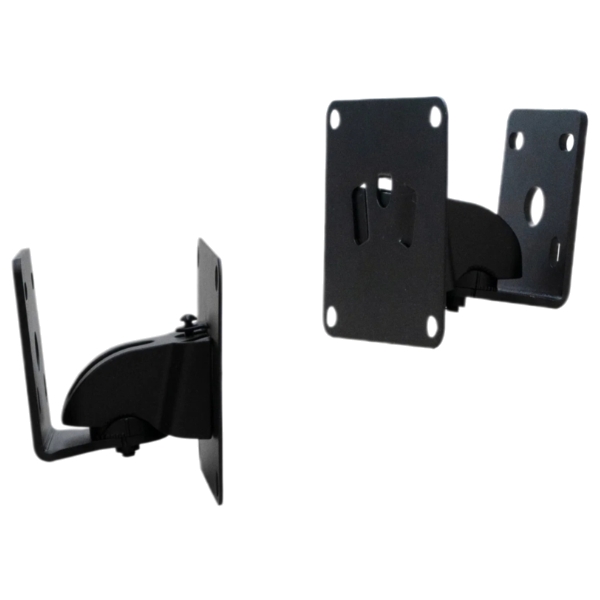

- VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening. Robust, quick and easy to install, including jumps and markings for repeating speaker orientation.
- Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
- Available in black (RAL 9005) or white (RAL 9003) colour
- EASE files available

Ecler ARQIS 105i 5-Inch 2-Way Passive Speaker Specifications

System:
- Effective Freq. Range: 80Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 150°x130° (HxV)
- Power handling: 70W RMS / 280W Peak
- Sensitivity: 89dB (1W/1m)
- Maximum SPL: 107dB continuous / 113dB peak
- Recommended amplifier power: 140W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 5.25-inch woofer
- High frequency driver: 1-inch tweeter
- Nominal impedance: 8 Ω

Filters:
- Crossover filter: 3,2kHz
- Recommended High-Pass protection filter: 80Hz with minimum 12dB / octave filter

Physical:
- Connection type: 2x Euroblock
- Installation options: Surface, wall, desktop
- Environmental: IP31
- Enclosure material: MDF
- Grille material: Steel
- Grille fixing system: Screw fixation
- Flying points: 4x M6
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: White (RAL 9003)
- Dimensions (W x H x D): 186 x 280 x 210 mm
- Weight: 3.6 kg
- Pieces per box: 1 piece

Further Product Information Below

Ecler ARQIS i-Series Manual (PDF)

Ecler ARQIS105i Data Sheet (PDF)

Ecler ARQIS105i Technical Drawing (PDF)

Ecler ARQIS 105i 5-Inch 2-Way Passive Speaker Supplied With

- 1x Ecler ARQIS 105i
- 1x VEASY Wall Bracket
- 1x 3mm Allen key
- 1x 4mm Allen key
- 1x 6mm Allen key
