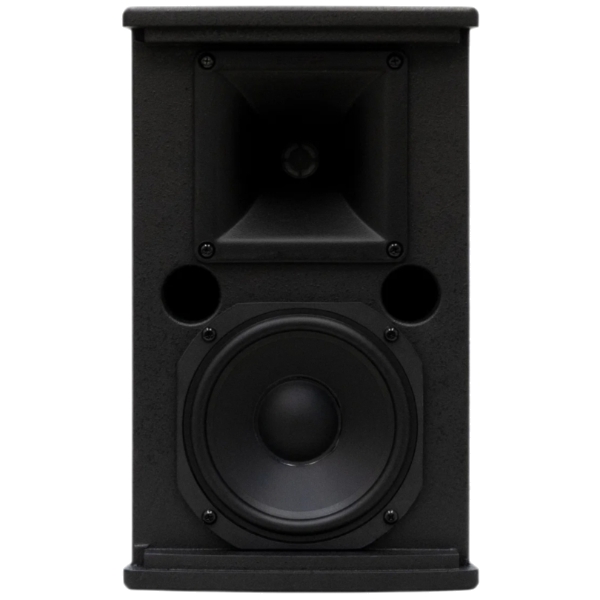

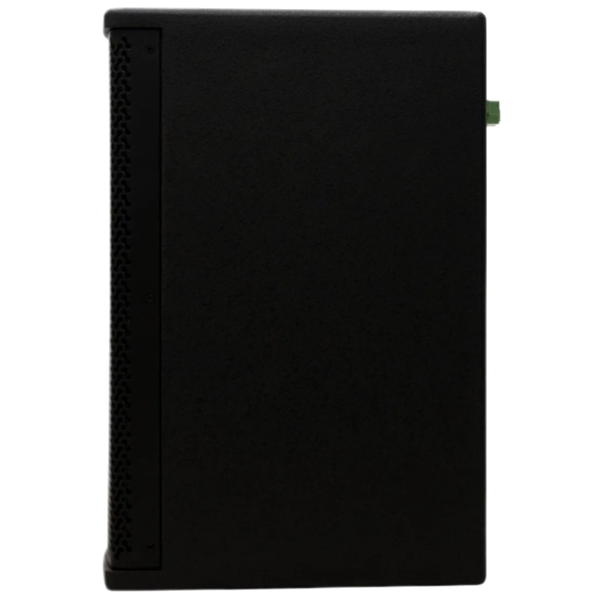

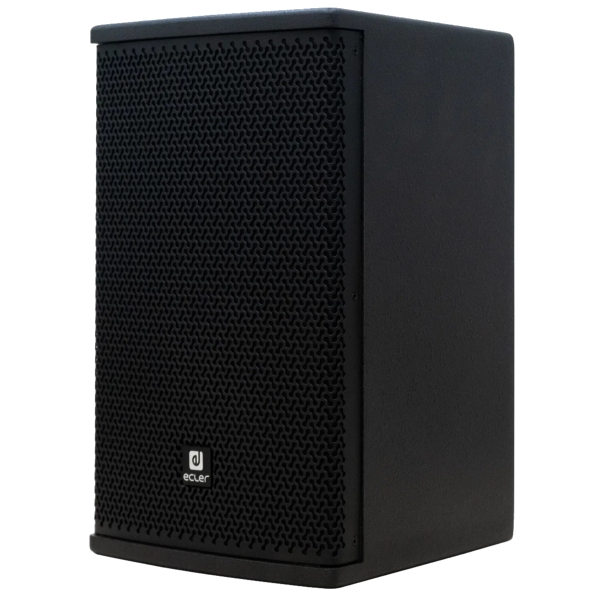

Ecler ARQIS 106i 6-Inch 2-Way Passive Speaker, 120W @ 8 Ohms - Black

Ecler ARQIS 106i 6-Inch 2-Way Passive Speaker Features

- Full range, 2-way architectural loudspeaker
- 120W RMS @ 8Ω
- 6-inch low frequency woofer
- 1-inch high frequency compression driver (rotatable)

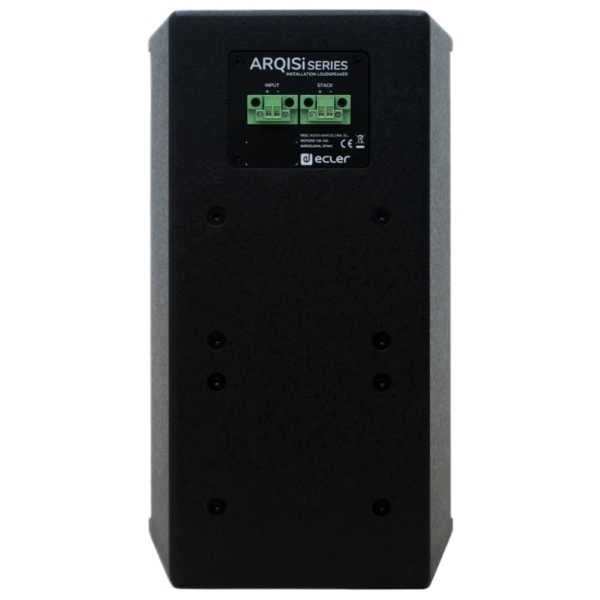

- Double INPUT/STACK connector, Euroblock type, with security attachment screws to avoid accidental disconnection

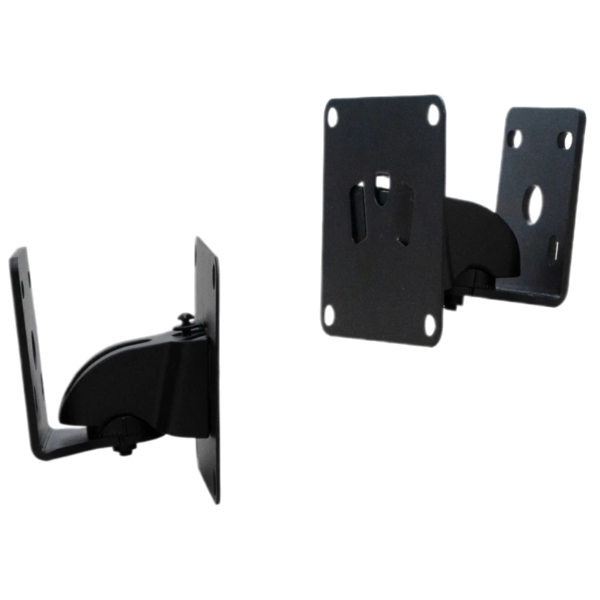

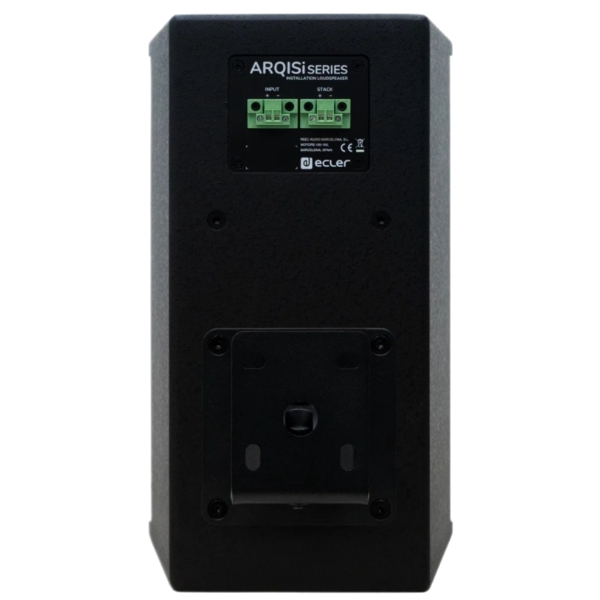

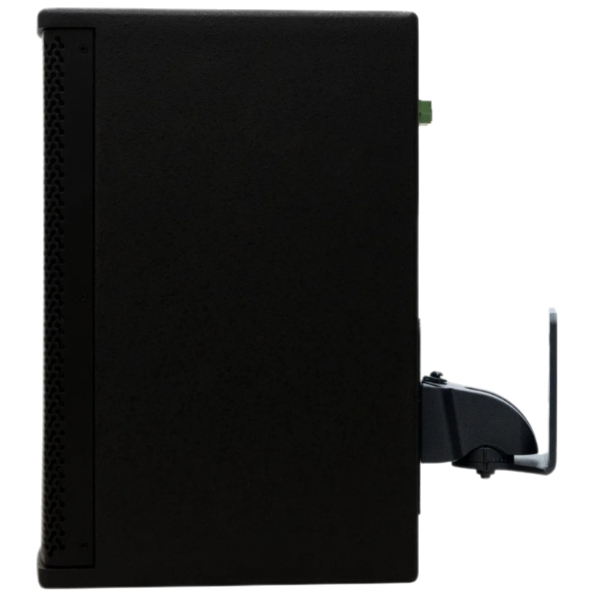

- VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening. Robust, quick and easy to install, including jumps and markings for repeating speaker orientation.
- Metal safety sling included, to avoid drops in case of accidental detachment from the wall surface
- Available in black (RAL 9005) or white (RAL 9003) colour
- EASE files available

Ecler ARQIS 106i 6-Inch 2-Way Passive Speaker Specifications

System:
- Effective Freq. Range: 75Hz - 20kHz (-10dB)
- Coverage angle / Dispersion: 140°x160° (HxV)
- Power handling: 120W RMS / 480W Peak
- Sensitivity: 88dB (1W/1m)
- Maximum SPL: 109dB continuous / 115dB peak
- Recommended amplifier power: 240W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 6-inch woofer
- High frequency driver: 1-inch rotatable compression driver
- Nominal impedance: 8 Ω

Filters:
- Crossover filter: 3.2kHz
- Recommended High-Pass protection filter: 70Hz with minimum 12dB / octave filter

Physical:
- Connection type: 2x Euroblock
- Installation options: Surface, wall, desktop
- Environmental: IP31
- Enclosure material: MDF
- Grille material: Steel
- Grille fixing system: Screw fixation
- Pan and tilt wall-mount: TBC
- Flying points: 8x M6
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: Black (RAL 9005)
- Dimensions (W x H x D): 215 x 350 x 240 mm
- Weight: 7.4 kg
- Pieces per box: 1 piece

Further Product Information Below

Ecler ARQIS i-Series Manual (PDF)

Ecler ARQIS106i Data Sheet (PDF)

Ecler ARQIS106i Technical Drawing (PDF)

Ecler ARQIS 106i 6-Inch 2-Way Passive Speaker Supplied With

- 1x Ecler ARQIS 106i
- 1x VEASY Wall Bracket
- 1x 3mm Allen key
- 1x 4mm Allen key
- 1x 6mm Allen key
