Ecler ARQIS 110i 10-Inch 2-Way Passive Speaker, 300W @ 8 Ohms - White

Name: Ecler ARQIS 110i 10-Inch 2-Way Passive Speaker, 300W @ 8 Ohms - White
Brand: Ecler
Price: 461.51 GBP
Availability: InStock

Price Each £384.59 (£461.51 Including VAT at 20%)

REF: JP115347

Quantity:

Ecler ARQIS 110i 10-Inch 2-Way Passive Speaker, 300W @ 8 Ohms - White

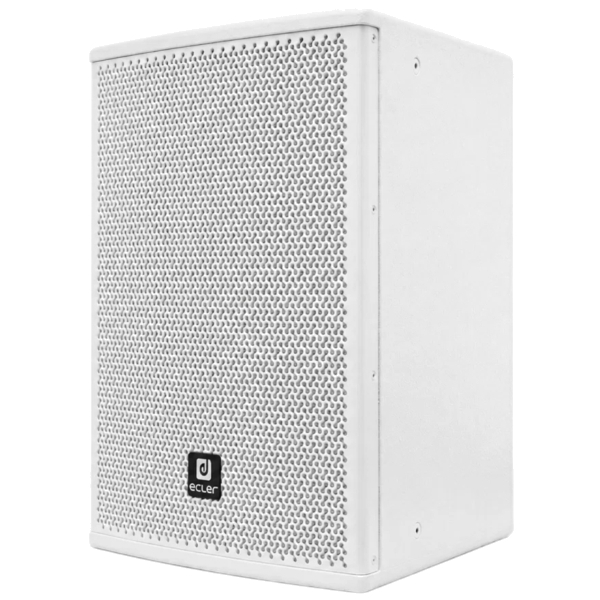

The Ecler ARQIS110i 10-Inch 2-Way Passive Speaker is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 300W RMS @ 8Ω, 10-inch woofer and 1.7-inch HF Compression Driver. 35mm mount socket and 8 x M8 rigging points, allowing for horizontal or vertical mounting options.

ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Click Here for Printer Friendly Version

Ecler ARQIS 110i 10-Inch 2-Way Passive Speaker Features

- Full range, 2-way architectural loudspeaker
- 300W RMS @ 8Ω
- 10-inch low frequency woofer
- 1.7-inch high frequency compression driver (rotatable)

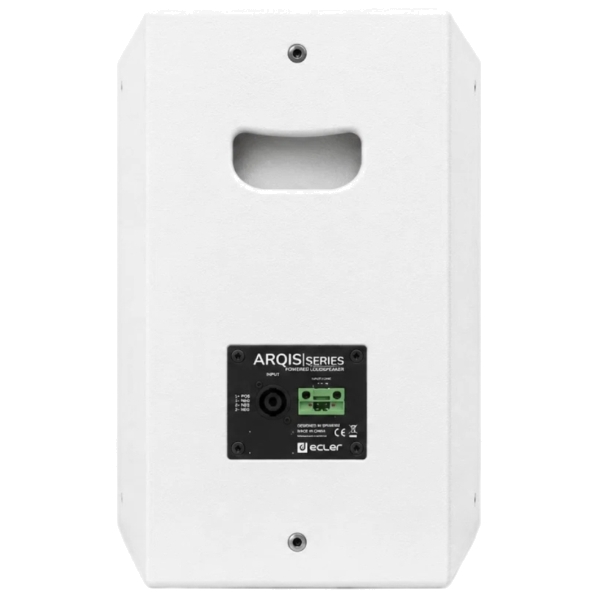

- Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
- 35mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1 floor stand (not included)
- U-bracket wall-mount accessory compatible (not included)
- 12x M8 cabinet flying points
- Available in black (RAL 9005) and white (RAL 9003) colour
- EASE files available

Ecler ARQIS 110i 10-Inch 2-Way Passive Speaker Specifications

System:
- Effective Freq. Range: 70Hz-19kHz (-10dB)
- Coverage angle / Dispersion: 110°x110° (HxV)
- Power handling: 300W RMS / 1200W Peak
- Sensitivity: 94dB (1W/1m)
- Maximum SPL: 119dB continuous / 125dB peak
- Recommended amplifier power: 600W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 10-inch woofer
- High frequency driver: 1.7-inch rotatable compression driver
- Nominal impedance: 8 Ω

Filters:
- Crossover filter: 2.1kHz
- Recommended High-Pass protection filter: 60Hz with minimum 12dB / octave filter

Physical:
- Connection type: 1x Euroblock & 1x Speakon (+1, -1)
- Installation options: Surface, wall, desktop, 35mm mount socket
- Environmental: IP31
- Enclosure material: MDF
- Grille material: Steel
- Grille fixing system: Screw fixation
- Pan and tilt wall-mount: TBC
- Flying points: 12x M8
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: White (RAL 9003)
- Dimensions (W x H x D): 342.5 x 495 x 345 mm
- Weight: 18.5 kg
- Pieces per box: 1 piece

Further Product Information Below

Ecler ARQIS i-Series Manual (PDF)

Ecler ARQIS110i Data Sheet (PDF)

Ecler ARQIS110i Technical Drawing (PDF)

Ecler ARQIS 110i 10-Inch 2-Way Passive Speaker Supplied With

- 1x Ecler ARQIS 110i
- 4x Rubber feet
- 4x screws
