Ecler ARQIS 112i 12-Inch 2-Way Passive Speaker, 500W @ 8 Ohms - White

Name: Ecler ARQIS 112i 12-Inch 2-Way Passive Speaker, 500W @ 8 Ohms - White
Brand: Ecler
Price: 675.49 GBP
Availability: InStock

Price Each £562.91 (£675.49 Including VAT at 20%)

REF: JP115349

Quantity:

Ecler ARQIS 112i 12-Inch 2-Way Passive Speaker, 500W @ 8 Ohms - White

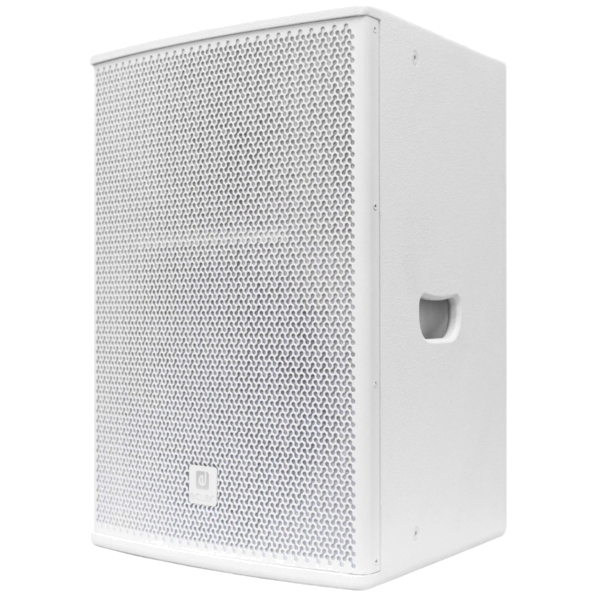

The Ecler ARQIS112i 12-Inch 2-Way Passive Speaker is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 500W RMS @ 8Ω, 12-inch woofer and 1.7-inch HF Compression Driver. 35mm mount socket and 8x M8 rigging points, allowing for horizontal or vertical mounting options.

ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Click Here for Printer Friendly Version

Ecler ARQIS 112i 12-Inch 2-Way Passive Speaker Features

- Full range, 2-way architectural loudspeaker
- 500W RMS @ 8Ω
- 12-inch low frequency woofer
- 1.7-inch high frequency compression driver (rotatable)

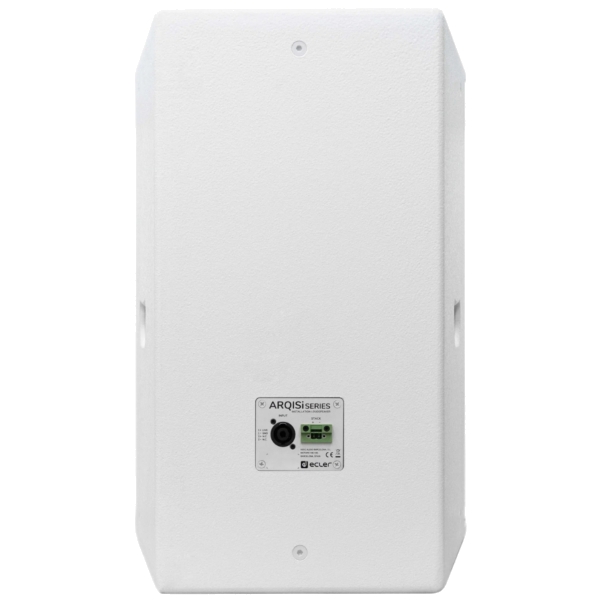

- Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
- 35mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1 floor stand (not included)
- U-bracket wall-mount accessory compatible (not included)
- 12x M8 cabinet flying points
- Available in black (RAL 9005) and white (RAL 9003) colour
- EASE files available

Ecler ARQIS 112i 12-Inch 2-Way Passive Speaker Specifications

System:
- Effective Freq. Range: 70Hz-19kHz (-10dB)
- Coverage angle / Dispersion: 120°x110° (HxV)
- Power handling: 500W RMS / 2000W Peak
- Sensitivity: 96dB (1W/1m)
- Maximum SPL: 123dB continuous / 129dB peak
- Recommended amplifier power: 1000W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 12-inch woofer
- High frequency driver: 1.7-inch rotatable compression driver
- Nominal impedance: 8 Ω

Filters:
- Crossover filter: 2.2kHz
- Recommended High-Pass protection filter: 58Hz with minimum 12dB / octave filter

Physical:
- Connection type: 1x Euroblock & 1x Speakon (+1, -1)
- Installation options: Surface, wall, desktop, 35mm mount socket
- Environmental: IP31
- Enclosure material: MDF
- Grille material: Steel
- Grille fixing system: Screw fixation
- Pan and tilt wall-mount: TBC
- Flying points: 12x M8
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: White (RAL 9003)
- Dimensions (W x H x D): 403 x 565 x 380 mm
- Weight: 23.8 kg
- Pieces per box: 1 piece

Further Product Information Below

Ecler ARQIS i-Series Manual (PDF)

Ecler ARQIS112i Data Sheet (PDF)

Ecler ARQIS112i Technical Drawing (PDF)

Ecler ARQIS 112i 12-Inch 2-Way Passive Speaker Supplied With

- 1x Ecler ARQIS 112i
- 4x Rubber feet
- 4x screws
