Ecler ARQIS 205i Dual 5-Inch 2-Way Passive Speaker, 140W @ 8 Ohms - Black

Name: Ecler ARQIS 205i Dual 5-Inch 2-Way Passive Speaker, 140W @ 8 Ohms - Black
Brand: Ecler
Price: 345.08 GBP
Availability: InStock

Price Each £287.57 (£345.08 Including VAT at 20%)

REF: JP115350

Quantity:

Ecler ARQIS 205i Dual 5-Inch 2-Way Passive Speaker, 140W @ 8 Ohms - Black

The Ecler ARQIS 205i Dual 5-Inch 2-Way Passive Speaker is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 140W RMS @ 8Ω, 2x 5-inch woofer and 1-inch HF Compression Driver. Its "U" shape wall bracket (included) allows for tilt adjustment.

ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Click Here for Printer Friendly Version

Ecler ARQIS 205i Dual 5-Inch 2-Way Passive Speaker Features

- Full range, 2-way architectural loudspeaker
- 140W RMS @ 8 Ω

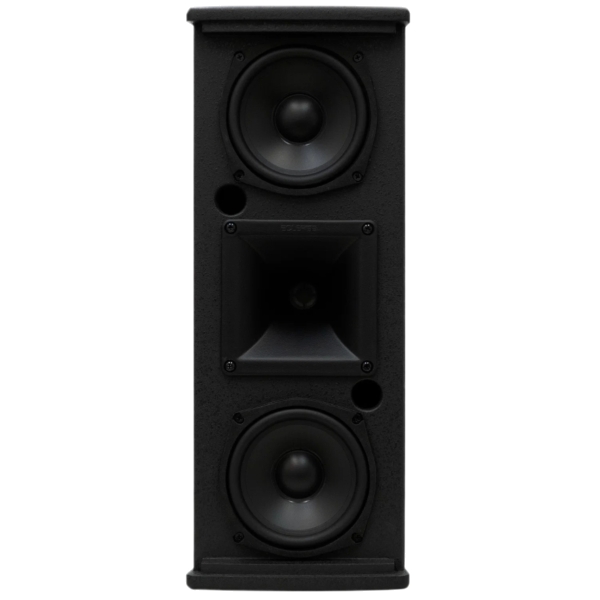

- 2x 5-inch low frequency woofer
- 1-inch high frequency compression driver (rotatable)

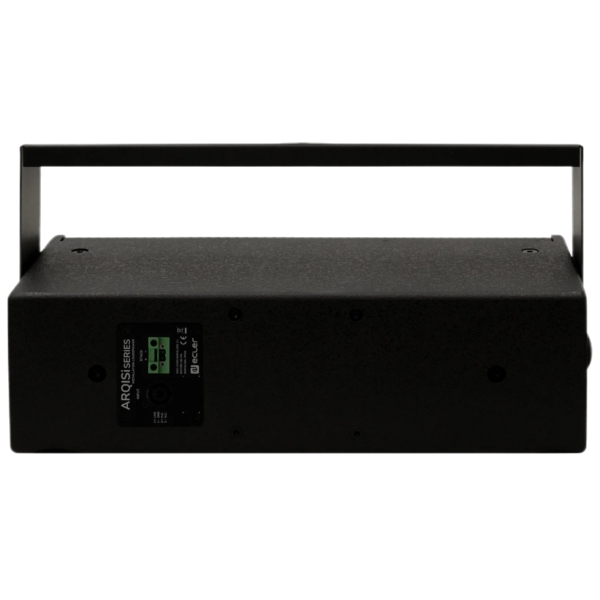

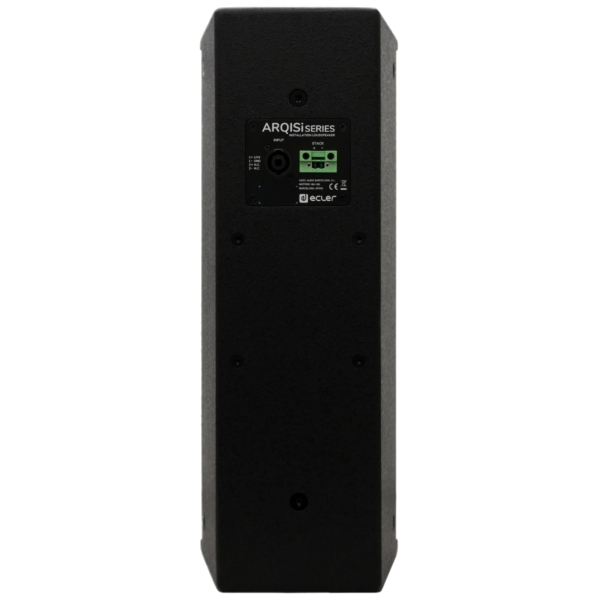

- Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection

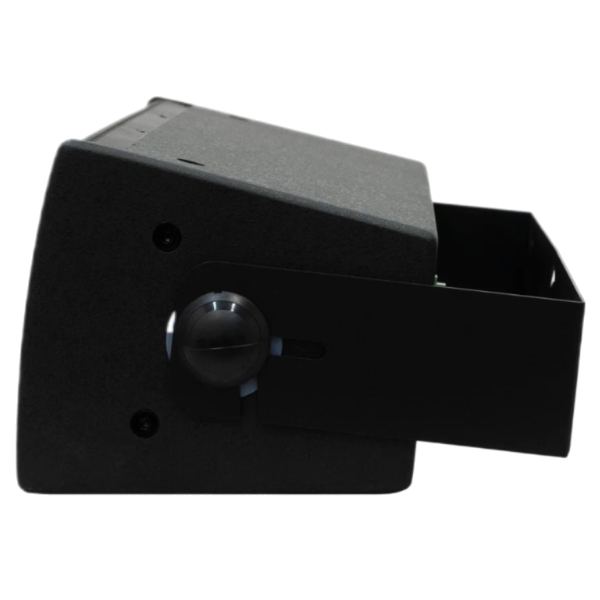

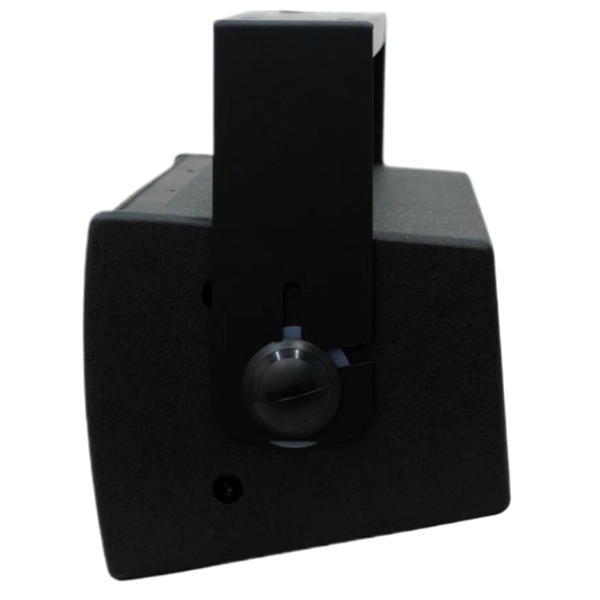

- "U" Shape wall bracket included, allowing for tilt adjustment
- 4x M6 & 12x M8 cabinet flying points
- Metal safety sling included, to avoid drops in case of accidentaldetachment from the wall surface
- Available in black (RAL 9005) and white (RAL 9003) colour
- EASE files available

Ecler ARQIS 205i Dual 5-Inch 2-Way Passive Speaker Specifications

System:
- Effective Freq. Range: 78Hz-20kHz
- Coverage angle / Dispersion: 150°x40° (HxV)
- Power handling: 140W RMS / 560W Peak
- Sensitivity: 90dB (1W/1m)
- Maximum SPL: 111dB continuous / 117dB peak
- Recommended amplifier power: 280W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 2x 5-inch woofer
- High frequency driver: 1-inch rotatable compression driver
- Nominal impedance: 8 Ω

Filters:
- Crossover filter: 2,3kHz
- Recommended High-Pass protection filter: 80Hz with minimum 12dB / octave filter

Physical:
- Connection type: 1x Euroblock & 1x Speakon (+1, -1)
- Installation options: Surface, wall, desktop
- Environmental: IP31
- Enclosure material: MDF
- Grille material: Steel
- Grille fixing system: Screw fixation
- Pan and tilt wall-mount: TBC
- Flying points: 4x M6 & 12x M8
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: Black (RAL 9005)
- Dimensions (W x H x D): 480 x 186 x 210 mm
- Weight: 8.4kg
- Pieces per box: 1 piece

Further Product Information Below

Ecler ARQIS i-Series Manual (PDF)

Ecler ARQIS205i Data Sheet (PDF)

Ecler ARQIS205i Technical Drawing (PDF)

Ecler ARQIS 205i Dual 5-Inch 2-Way Passive Speaker Supplied With

- 1x Ecler ARQIS 205i
- 1x U Bracket
- 1x 5mm Allen key
- 1x 6mm Allen key
