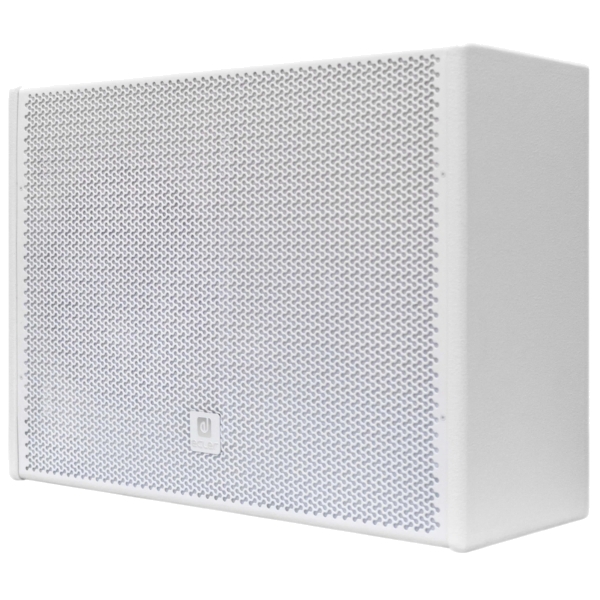

Ecler ARQIS SB10i 10-Inch Passive Subwoofer, 150W @ 8 Ohms - White

Ecler ARQIS SB10i 10-Inch Passive Subwoofer Features

- Subwoofer, 1-way architectural loudspeaker
- 150W RMS @ 8Ω
- 1x 10-inch low frequency woofer
- Euroblock connector and spring loaded input terminals

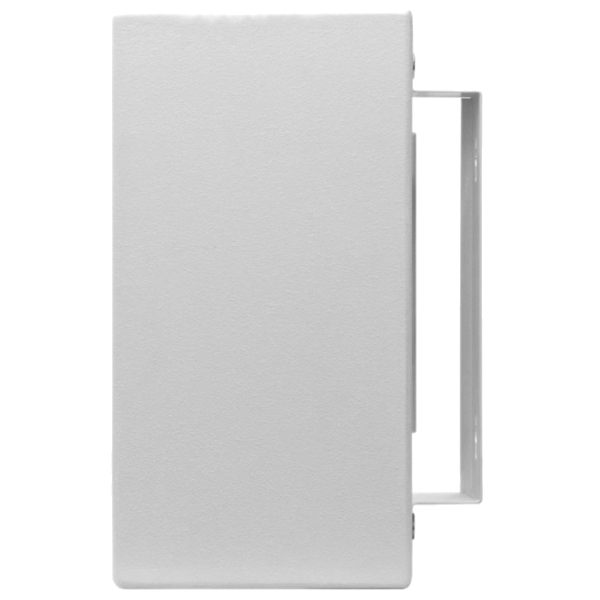

- Wall bracket included
- 12x M8 cabinet flying points
- Available in white (RAL9003) and black (RAL 9005) colour
- EASE files available

Ecler ARQIS SB10i 10-Inch Passive Subwoofer Specifications

System:
- Effective Freq. Range: 54Hz-4kHz (-10dB)
- Power handling: 150W RMS / 600W Peak
- Sensitivity: 92dB (1W/1m)
- Maximum SPL: 114dB continuous / 120dB peak
- Recommended amplifier power: 300W RMS

Drivers:
- Ways: 1-way subwoofer
- Driver: LF 10-inch woofer
- Nominal impedance: 8Ω

Filters:
- Low-Pass filter selector: Internal LPF with 2 frequency settings
- Recommended High-Pass protection filter: 60Hz with minimum 12dB / octave filter

Physical:

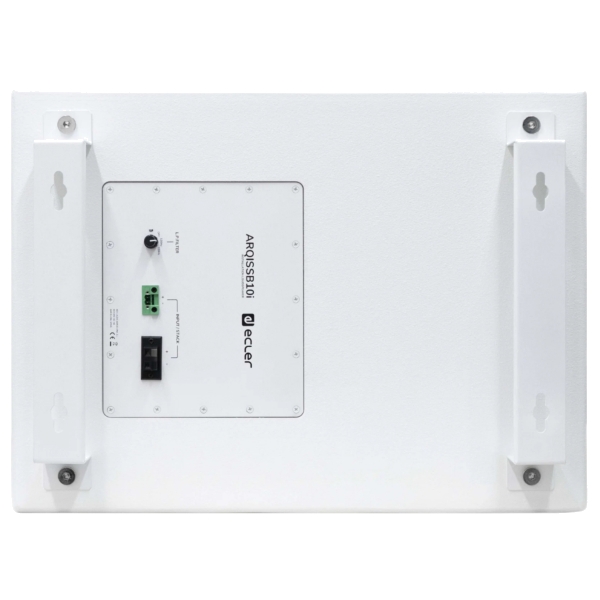

- Connection type: 1x Euroblock & 1x Terminal
- Installation options: Surface, wall, desktop
- Environmental: IP31
- Enclosure material: MDF
- Grille material: Steel
- Grille fixing system: Screw fixation
- Pan and tilt wall-mount: TBC
- Flying points: 12x M8
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: White (RAL 9003)
- Dimensions (W x H x D): 600 x 442 x 228mm
- Weight: 16.5 kg
- Pieces per box: 1 piece

Further Product Information Below

Ecler ARQIS i-Series Manual (PDF)

Ecler ARQISSB10i Data Sheet (PDF)

Ecler ARQISSB10i Technical Drawing (PDF)

Ecler ARQIS SB10i 10-Inch Passive Subwoofer Supplied With

- 1x Ecler ARQIS SB10i
- 4x rubber feet
- 4x screws
- 1x wall bracket
