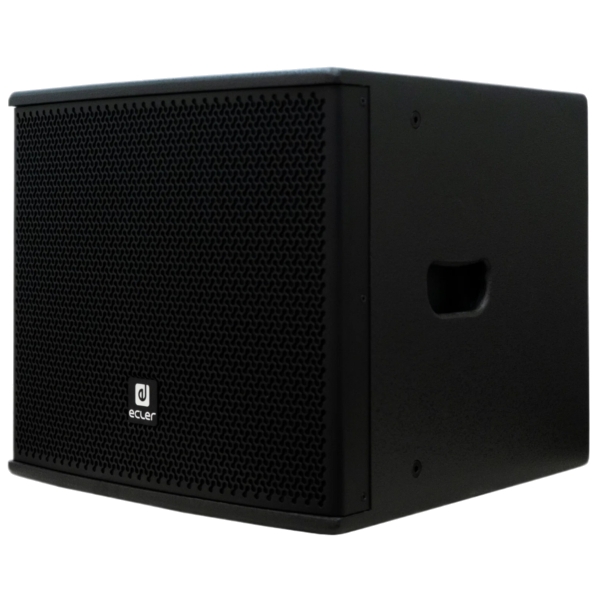

Ecler ARQIS SB12i 12-Inch Passive Subwoofer, 300W @ 8 Ohms - Black

Name: Ecler ARQIS SB12i 12-Inch Passive Subwoofer, 300W @ 8 Ohms - Black
Brand: Ecler
Price: 625.14 GBP
Availability: InStock

Price Each £520.95 (£625.14 Including VAT at 20%)

REF: JP115356

Quantity:

Ecler ARQIS SB12i 12-Inch Passive Subwoofer, 300W @ 8 Ohms - Black

The Ecler ARQIS SB12i 12-Inch Passive Subwoofer ARQISSB12i is a wooden subwoofer reinforcement cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 300W RMS @ 8Ω and a 12-inch LF driver.

ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Click Here for Printer Friendly Version

Ecler ARQIS SB12i 12-Inch Passive Subwoofer Features

- Subwoofer, 1-way architectural loudspeaker
- 300W RMS @ 8Ω

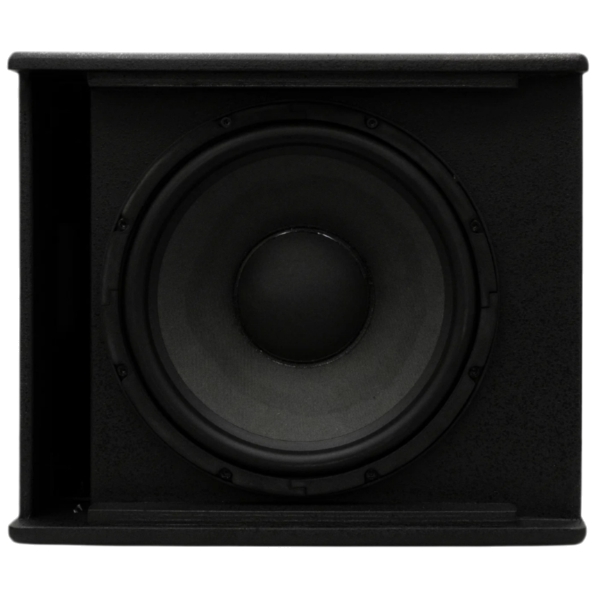

- 1x 12-inch low frequency woofer
- Double INPUT/STACK connector, Speakon© type
- 12x M8 cabinet flying points
- Available in black (RAL 9005) colour
- EASE files available

Ecler ARQIS SB12i 12-Inch Passive Subwoofer Specifications

System:
- Effective Freq. Range: 44Hz-4kHz
- Power handling: 300W RMS/1200W Peak
- Sensitivity: 95dB (1W/1m)
- Maximum SPL: 120dB Continuous / 126dB peak
- Recommended amplifier power: 600W RMS

Drivers:
- Ways: 1-way subwoofer
- Driver: LF 12-inch woofer
- Nominal impedance: 8Ω

Filters:
- Low-Pass filter selector: TBC
- Recommended High-Pass protection filter: 45Hz with minimum 12dB / octave filter

Physical:

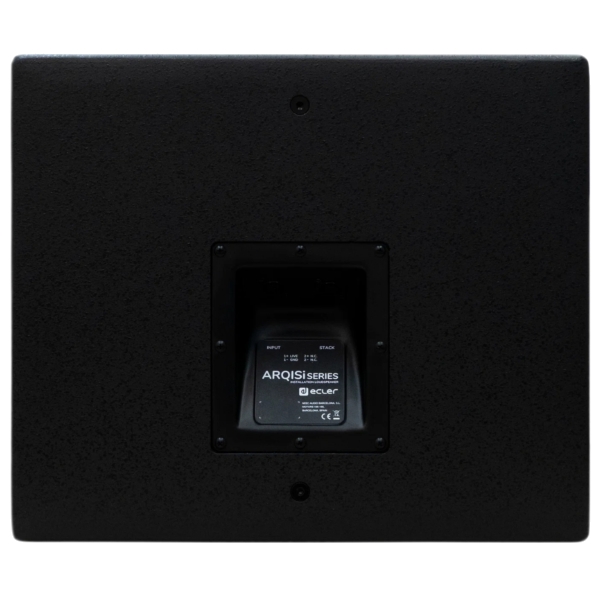

- Connection type: 2x Speakon (+1, -1)
- Installation options: Surface, wall, desktop
- Environmental: IP31
- Enclosure material: Plywooden
- Grille material: Steel
- Grille fixing system: Screw fixation
- Flying points: 12x M8
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: Black (RAL 9005)
- Dimensions (W x H x D): 440 x 375 x 440 mm
- Weight: 19.4 kg
- Pieces per box: 1 piece

Further Product Information Below

Ecler ARQIS i-Series Manual (PDF)

Ecler ARQISSB12i Data Sheet (PDF)

Ecler ARQISSB12i Technical Drawing (PDF)

Ecler ARQIS SB12i 12-Inch Passive Subwoofer Supplied With

- 1x Ecler ARQIS SB12i
- 4x rubber feet
- 4x screws
