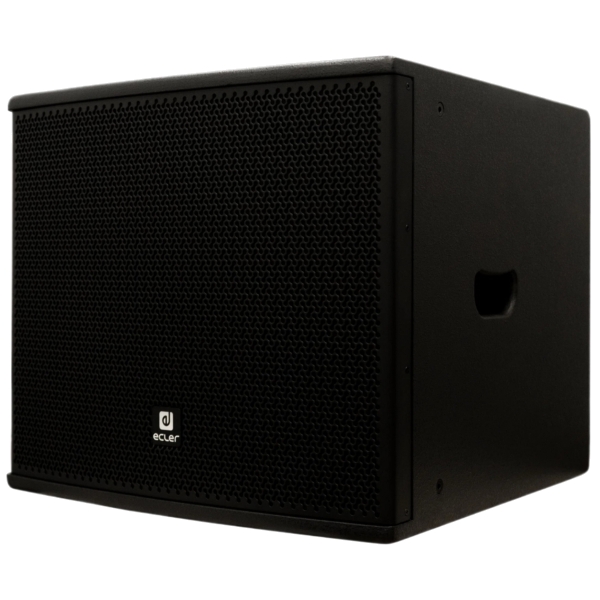

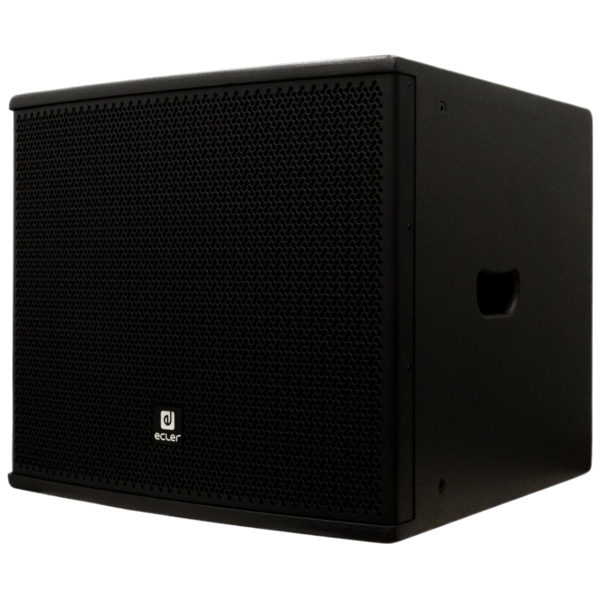

Ecler ARQIS SB15i 15-Inch Passive Subwoofer, 600W @ 8 Ohms - Black

Name: Ecler ARQIS SB15i 15-Inch Passive Subwoofer, 600W @ 8 Ohms - Black
Brand: Ecler
Price: 788.77 GBP
Availability: InStock

Price Each £657.31 (£788.77 Including VAT at 20%)

REF: JP115357

Quantity:

Ecler ARQIS SB15i 15-Inch Passive Subwoofer, 600W @ 8 Ohms - Black

The Ecler ARQIS SB15i 15-Inch Passive Subwoofer is a wooden subwoofer reinforcement cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 600WRMS @ 8Ω and a 15-inch LF driver.

ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Click Here for Printer Friendly Version

Ecler ARQIS SB15i 15-Inch Passive Subwoofer Features

- Subwoofer, 1-way architectural loudspeaker
- 600W RMS @ 8Ω

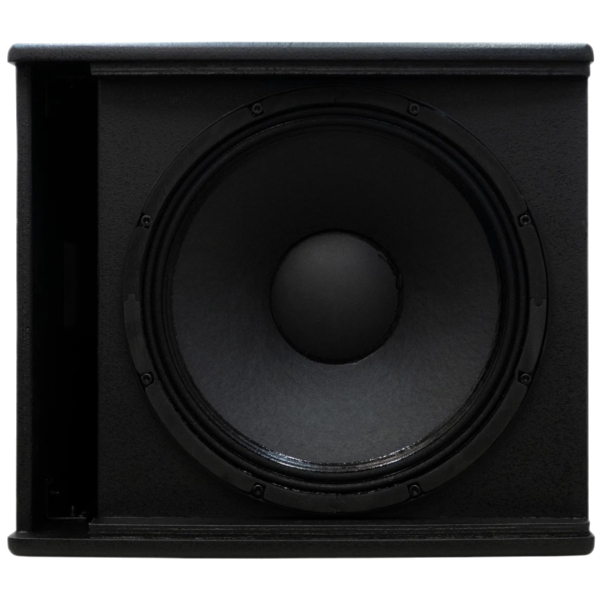

- 1 x15-inch low frequency woofer

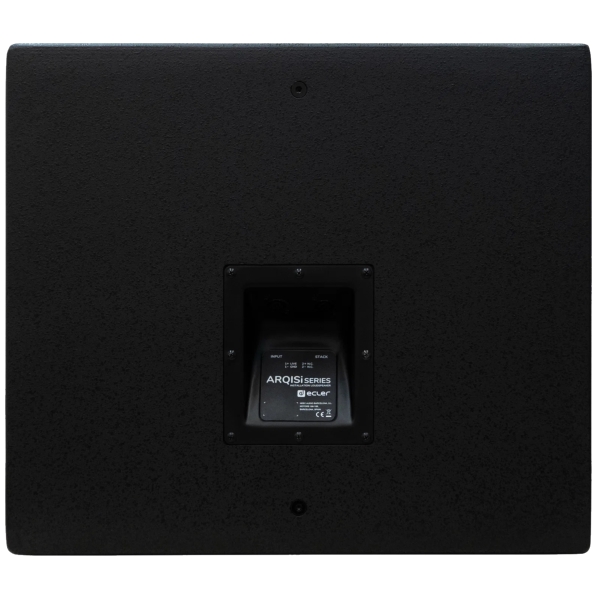

- Double INPUT/STACK connector, Speakon© type
- 35mm top-hat mount socket, for pole mount combinations with ARQIS110i, ARQIS112i, etc.
- 12x M8 cabinet flying points.
- Available in black (RAL 9005) colour
- EASE files available

Ecler ARQIS SB15i 15-Inch Passive Subwoofer Specifications

System:
- Effective Freq. Range: 31Hz-3kHz (-10dB)
- Power handling: 600W RMS / 2400W Peak
- Sensitivity: 97dB (1W/1m)
- Maximum SPL: 125dB continuous / 131dB peak
- Recommended amplifier power: 1200W RMS

Drivers:
- Ways: 1-way subwoofer
- Driver: LF 15-inch woofer
- Nominal impedance: 8Ω

Filters:
- Low-Pass filter selector: TBC
- Recommended High-Pass protection filter: 40Hz with minimum 12dB / octave filter

Physical:
- Connection type: 2x Speakon (+1, -1)
- Installation options: Surface, wall, desktop
- Environmental: IP31
- Enclosure material: Plywooden
- Grille material: Steel
- Grille fixing system: Screw fixation
- Flying points: 12x M8
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: Black (RAL 9005)
- Dimensions (W x H x D): 534 x 460 x 525 mm
- Weight: 32 kg
- Pieces per box: 1 piece

Further Product Information Below

Ecler ARQIS i-Series Manual (PDF)

Ecler ARQISSB15i Data Sheet (PDF)

Ecler ARQISSB15i Technical Drawing (PDF)

Ecler ARQIS SB15i 15-Inch Passive Subwoofer Supplied With

- 1x Ecler ARQIS SB15i
- 4x rubber feet
- 4x screws
