Ecler ARQIS SB6Ti Dual 6.5-Inch Slimline Passive Subwoofer, 120W @ 8 Ohms or 70V / 100V Line - White

Name: Ecler ARQIS SB6Ti Dual 6.5-Inch Slimline Passive Subwoofer, 120W @ 8 Ohms or 70V / 100V Line - White
Brand: Ecler
Price: 461.51 GBP
Availability: InStock

Price Each £384.59 (£461.51 Including VAT at 20%)

REF: JP115359

Quantity:

Ecler ARQIS SB6Ti Dual 6.5-Inch Slimline Passive Subwoofer, 120W @ 8 Ohms or 70V / 100V Line - White

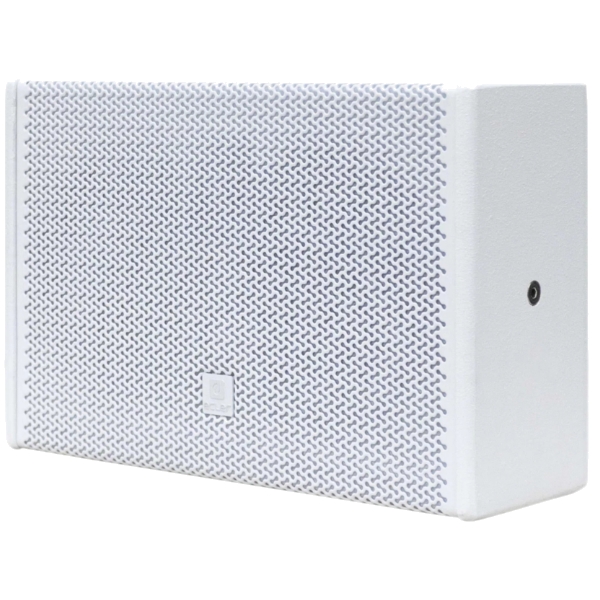

The Ecler ARQIS SB6Ti Dual 6.5-Inch Slimline Passive Subwoofer is a wooden wall-mount subwoofer reinforcement cabinet with a slim and compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring a 6.5-inch driver and a passive 6.5-inch radiator. 120W RMS power @ 8Ω and integrated 70/100V line transformer with 60 and 120W taps. Internal LPF with OFF, 120HZ and 150 HZ cut-off frequency selections. Installation U-bracket included. Available in white and black finish.

ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Click Here for Printer Friendly Version

Ecler ARQIS SB6Ti Dual 6.5-Inch Slimline Passive Subwoofer Features

- 6.5-inch subwoofer + 6.5-inch passive radiator

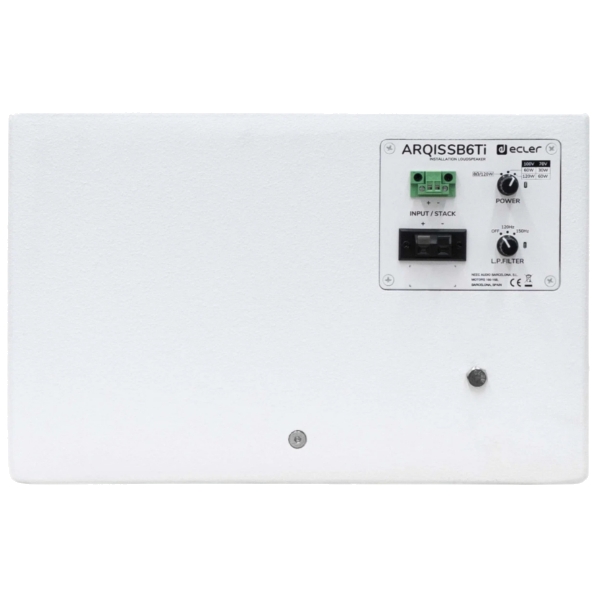

- Ready for 70/100V installations: power selector 60/120W & 8Ω
- Euroblock connector and spring-loaded input terminals
- LPF cut-off frequency selection: OFF/ 120Hz / 150Hz

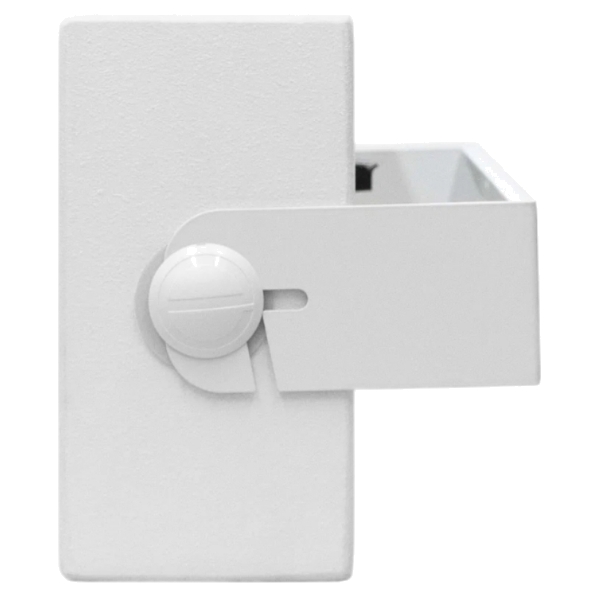

- U Wall-mount hardware included
- Available in black (RAL 9005) and white (RAL9003) colour
- EASE files available

Ecler ARQIS SB6Ti Dual 6.5-Inch Slimline Passive Subwoofer Specifications

System:
- Effective Freq. Range: 50Hz-1,5kHz (-10dB)
- Power handling: 120W RMS / 480W Peak
- Sensitivity: 86dB (1W/1m)
- Maximum SPL: 107dB RMS / 113dB peak
- Power options (Hi Z Multi-tap): 70V/100V line transformer: 120W / 60W / 8Ω
- Recommended amplifier power: 250W RMS

Drivers:
- Ways: 1-way subwoofer
- Driver: 6.5-inch subwoofer + 6.5-inch passive radiator
- Nominal impedance: 8Ω

Filters:
- Low-Pass filter selector: OFF/ 120Hz / 150Hz
- Recommended High-Pass protection filter: 55Hz with minimum 12dB / octave filter

Physical:
- Connection type: Euroblock + spring loaded input terminals
- Power type selector: TBC
- Installation options: Surface, wall, desktop
- Environmental: IP31
- Enclosure material: MDF
- Grille material: Steel
- Grille fixing system: Screw fixation
- Flying points: 2x M8
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Included accessories: U Bracket / 5mm Allen Key / 6mm Allen Key
- Finished colour: White (RAL 9003)
- Dimensions (W x H x D): 390 x 250 x 130mm
- Weight: 8.2 kg
- Pieces per box: 1 piece

Further Product Information Below

Ecler ARQIS i-Series Manual (PDF)

Ecler ARQISSB6Ti Data Sheet (PDF)

Ecler ARQISSB6Ti Technical Drawing (PDF)

Ecler ARQIS SB6Ti Dual 6.5-Inch Slimline Passive Subwoofer Supplied With

- 1x Ecler ARQIS SB15i
- 1x U Bracket
- 1x 5mm Allen Key
- 1x 6mm Allen Key
