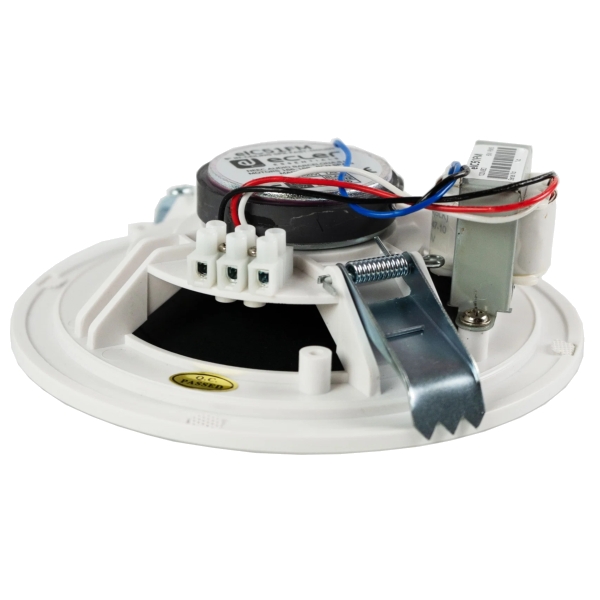

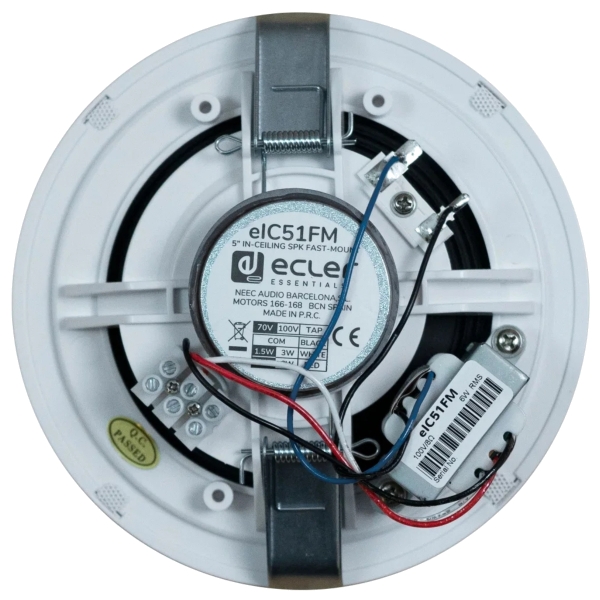

Ecler eIC51FM 4.5-Inch Ceiling Speaker, 6W @ 8 Ohms or 70V / 100V Line - White

Ecler eIC51FM 4.5-Inch Ceiling Speaker Features

- Easy and fast mounting
- One-way, full range
- 4.5-inch woofer
- 6WRMS
- Power options 70V: 1.5 / 3W
- Power options 100V: 3 / 6W
- Screw terminals
- ABS plastic basket, powder coated iron grille
- Available in white colour (RAL 9016)
- EASE Address file available

Ecler eIC51FM 4.5-Inch Ceiling Speaker Specifications

System:
- Effective Freq. Range: 115Hz-17kHz (-10dB)
- Coverage angle / Dispersion: 157°x157° (HxV)
- Power handling: 6W RMS / 24W Peak
- Sensitivity: 91dB (1W/1m)
- Maximum SPL: 99dB continuous / 105dB peak
- Power options (Hi Z Multi-tap):
  - 70V: 3W / 1.5W
  - 100V: 6W / 3W
- Recommended amplifier power: 12W RMS

Drivers:
- Ways: 1-way full range
- Driver: 4.5-inch woofer, ferrite magnet and paper cone
- Nominal impedance: 8Ω

Physical:
- Connection type: Screw terminals
- Power type selector: Color code connection (rear panel)
- Installation options: In-ceiling, in-wall
- Environmental: IP50 rated
- Enclosure material: ABS plastic
- Grille material: Powder coated iron
- Mounting system: Spring clamps
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- External diameter: 160 mm
- Recommended cut out diameter: 145 mm
- Required depth: >54 mm
- Ceiling thickness: No limit min, 55 mm max
- Finished colour: White (RAL 9016)
- Weight: 0.5kg
- Pieces per box: 1 unit

Further Product Information Below

Ecler eIC51FM Data Sheet (PDF)

Ecler eIC51FM Technical Drawing (PDF)
