Ecler eIC52 5.25-Inch 2-Way Ceiling Speaker, 20W @ 8 Ohms or 70V / 100V Line - White

Ecler eIC52 5.25-Inch 2-Way Ceiling Speaker Features

- Two-way ABS speaker, 20WRMS
- 5.25-inch woofer + 0.75-inch tweeter

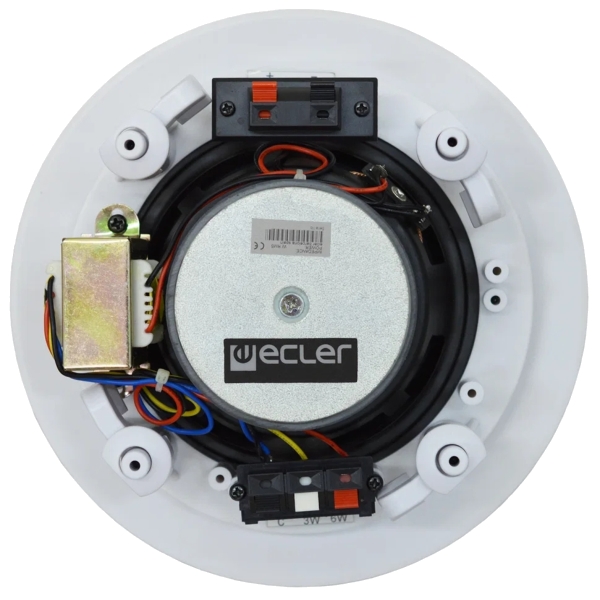

- Built-in audio transformer for 70/100V use
- Clip-type input terminals and low impedance / high impedance power tap selector
- EASE files available

Ecler eIC52 5.25-Inch 2-Way Ceiling Speaker Specifications

System:
- Effective Freq. Range: 65Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 151°x151° (HxV)
- Power handling: 20W RMS / 80W Peak
- Sensitivity: 89dB (1W/1m)
- Maximum SPL: 102dB continuous / 108dB peak
- Power options (Hi Z Multi-tap):
  - 100V: 6W / 3W / 8Ω
  - 70V: 6W / 3W / 8Ω
- Recommended amplifier power: 40W RMS

Drivers:
- Ways: 2-ways
- Low frequency driver: 5.25-inch woofer
- High frequency driver: 0.75-inch tweeter
- Nominal impedance: 8Ω

Physical:
- Connection type: Clip-type input terminals
- Power type selector: Power tap selector
- Installation options: In-ceiling, in-wall
- Enclosure material: ABS
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- External diameter: 202 mm
- Internal diameter: 164 mm
- Recommended cut out diameter: 165 mm
- Required depth: 65mm
- Ceiling thickness: 5 mm min, 30 mm max
- Finished colour: White (RAL 9003)
- Weight: 1.0kg
- Pieces per box: 1 unit
