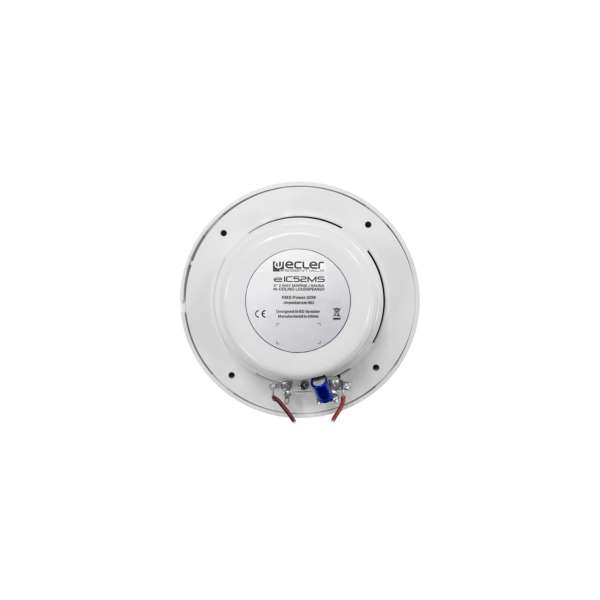

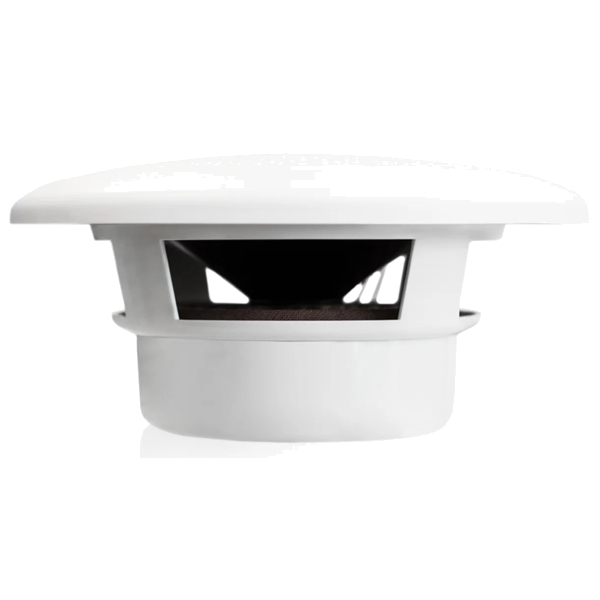

Ecler eIC52MS 5-Inch 2-Way Humidity Proof Ceiling Speaker, 20W @ 8 Ohms - White

Ecler eIC52MS 5-Inch 2-Way Humidity Proof Ceiling Speaker Features

- Two-way speaker, 5-inch woofer / 1-inch tweeter
- 20W RMS
- Faston male input terminals: 4.8mm (+) and 2.8mm (-)
- Suitable for installations exposed to extreme humidity and/or temperature
- EASE files available

Ecler eIC52MS 5-Inch 2-Way Humidity Proof Ceiling Speaker Specifications

System:
- Effective Freq. Range: 83Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 155°x155° (HxV)
- Power handling: 20W RMS / 80W Peak
- Sensitivity: 91dB (1W/1m)
- Maximum SPL: 104dB continuous / 110dB peak
- Recommended amplifier power: 40W RMS

Drivers:
- Ways: 2 ways
- Low frequency driver: 5-inch woofer
- High frequency driver: 1-inch tweeter
- Nominal impedance: 8Ω

Physical:
- Connection type: Faston male input terminals: 4.8mm (+) and 2.8mm (-)
- Installation options: In-ceiling, in-wall
- Environmental: IP54 rated
- Grille fixing system: 4x Screw fixing system
- Operating temperature: Min: -25°C ; -13°F Max: 70°C ; 158°F
- Operating humidity: <90-95% HR
- Storage temperature: Min: -25°C ; -13°F Max: 70°C ; 158°F
- Storage humidity: <90-95% HR
- External diameter: 165 mm
- Internal diameter: 120 mm
- Recommended cut out diameter: 125 mm
- Required depth: 79 mm
- Finished colour: White (RAL 9016)
- Weight: 0.70 kg
- Pieces per box: Unit

Further Product Information Below

Ecler eIC52MS Data Sheet (PDF)

Ecler eIC52MS Technical Drawing (PDF)
