Ecler eMOTUS 5OD 5-Inch IP65 Passive Speaker, 40W @ 8 Ohms or 70V / 100V Line - Black (Pair)

Name: Ecler eMOTUS 5OD 5-Inch IP65 Passive Speaker, 40W @ 8 Ohms or 70V / 100V Line - Black (Pair)
Brand: Ecler
Price: 253.82 GBP
Availability: InStock

Price per Pair £211.52 (£253.82 Including VAT at 20%)

REF: JP115387

Quantity:

Ecler eMOTUS 5OD 5-Inch 2-Way IP65 Passive Speaker, 40W @ 8 Ohms or 70V / 100V Line - Black (Pair)

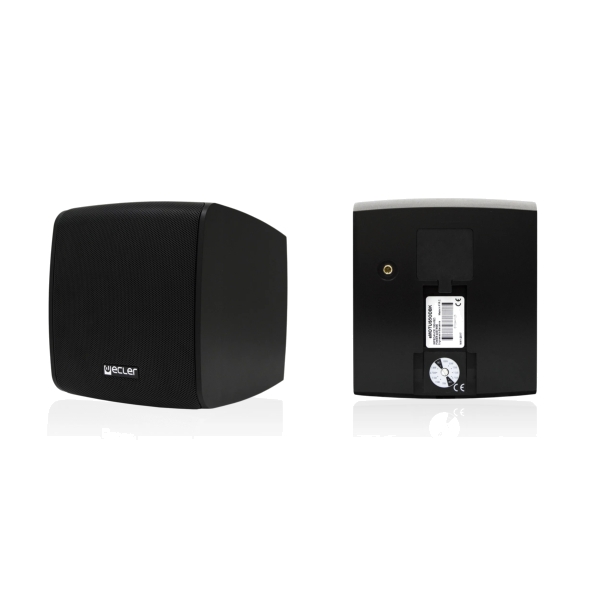

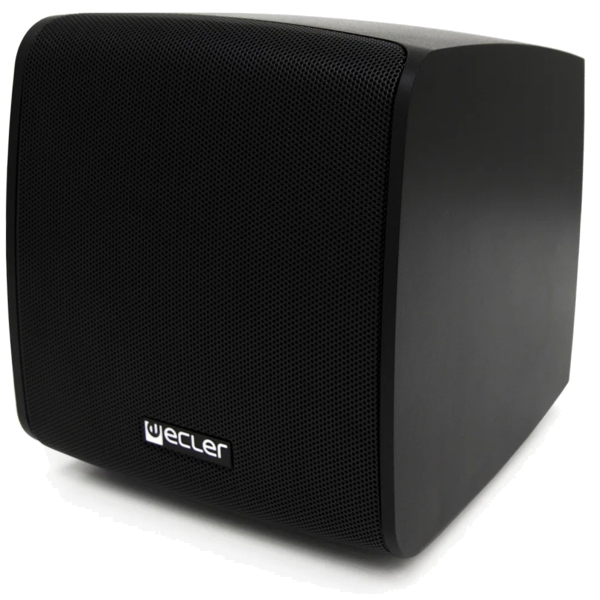

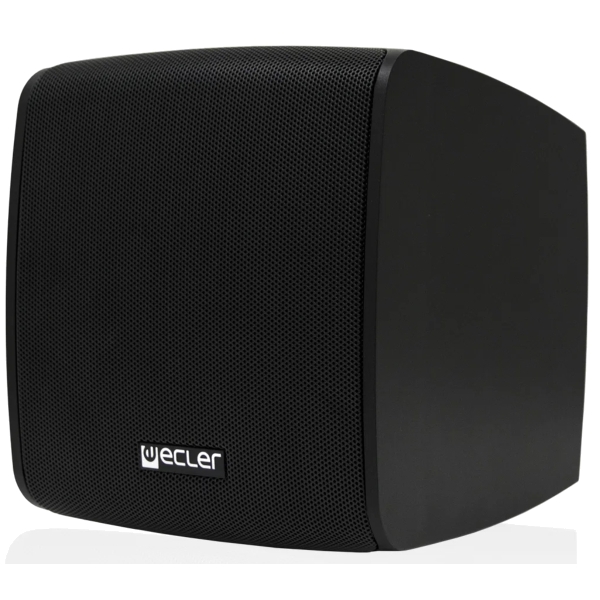

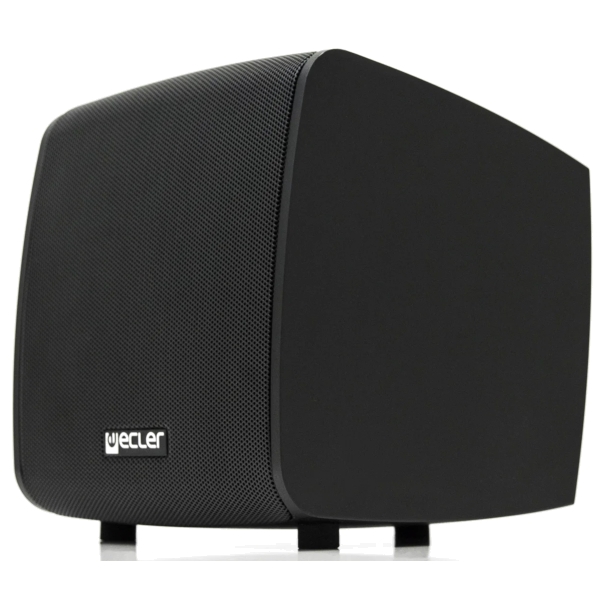

The Ecler eMOTUS 5OD 5-Inch IP65 Passive Speaker is a 5-inch loudspeaker cabinet ready for outdoor installation. A professional and compact loudspeaker, cost-effective and with a unique design that will easily fit in a massive number of applications: theme parks, gardens, nature parks and urban spaces, leisure, health and sport centres, residential buildings, outdoor areas, etc. Available in black and white colour.

Supplied in Pairs

Click Here for Printer Friendly Version

Ecler eMOTUS 5OD 5-Inch IP65 Passive Speaker Features

- 2-way cabinet, 5-inch woofer and 1-inch tweeter
- 40W RMS @ 8Ω

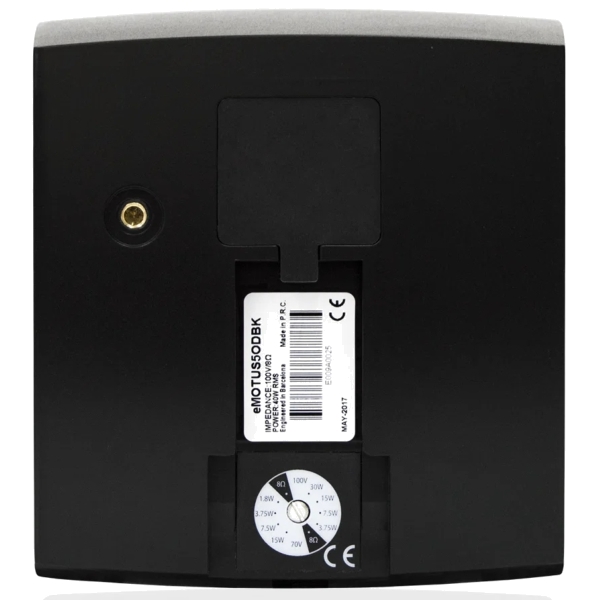

- Power selector: 3,75 / 7,5/ 15 / 30W @ 100V & 8Ω position - 15 / 7.5 / 3.75 /1,8W @ 70V & 8Ω position
- Outdoor design
- IP65 rated
- Back rubber cover for connections
- Includes wall bracket and security steel cable
- Available in black and white colour

Ecler eMOTUS 5OD 5-Inch IP65 Passive Speaker Specifications

System:
- Effective Freq. Range: 77Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 150°x150° (HxV)
- Power handling: 40W RMS / 160W Peak
- Sensitivity: 85dB (1W/1m)
- Maximum SPL: 101dB continuous / 107dB peak
- Power options (Hi Z Multi-tap):
  - 100V: 30W / 15W / 7,5W / 3,75W / 8Ω
  - 70V: 15W / 7,5W / 3,75W /1,8W / 8Ω
- Recommended amplifier power: 80W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 5-inch woofer
- High frequency driver: 1-inch coaxial tweeter
- Nominal impedance: 8Ω

Physical:

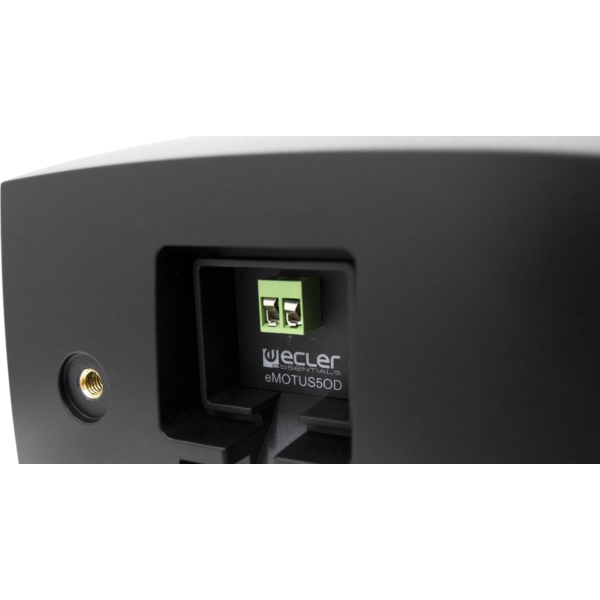

- Connection type: 2-terminal input Euroblock connector (input)
- Power type selector: Selectable transformer tap
- Installation options: Surface, desktop
- Environmental: IP65 rated
- Enclosure material: ABS cabinet

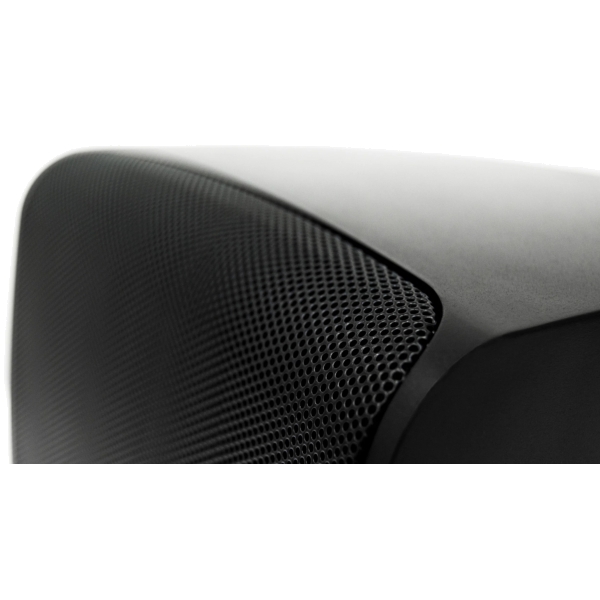

- Grille material: Aluminium grille
- Mounting system: ABS bracket
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: Black (RAL 9005)
- Dimensions:
  - With brackets (W x H x D): 173 x 180 x 248 mm
  - Without brackets (W x H x D): 173 x 180 x 181 mm
- Weight:
  - Without brackets: 2.2 kg
  - With brackets: 2.5 kg
- Pieces per box: 2x pieces

Further Product Information Below

Ecler eMOTUS 5OD Manual (PDF)

Ecler eMOTUS 5OD Data Sheet (PDF)

Ecler eMOTUS 5OD Technical Drawing (PDF)

Ecler eMOTUS 5OD 5-Inch IP65 Passive Speaker Supplied With

- 2x Ecler CEMOTUS5ODBK
- Wall-mount brackets
- Adhesive legs
- Back rubber covers
- Security steel cables
