Ecler eMOTUS 8OD 8-Inch 2-Way IP65 Passive Speaker, 100W @ 8 Ohms or 70V / 100V Line - White (Pair)

Ecler eMOTUS 8OD 8-Inch 2-Way IP65 Passive Speaker Features

- 2-way cabinet, 8-inch woofer and 1.4-inch tweeter
- 100WRMS @ 8Ω
- Power selector: 60 / 30 / 15 / 7,5 / 3,5W @ 70/100V & 8Ω position
- IP65 rated
- Aluminium grill and UV protection treatment

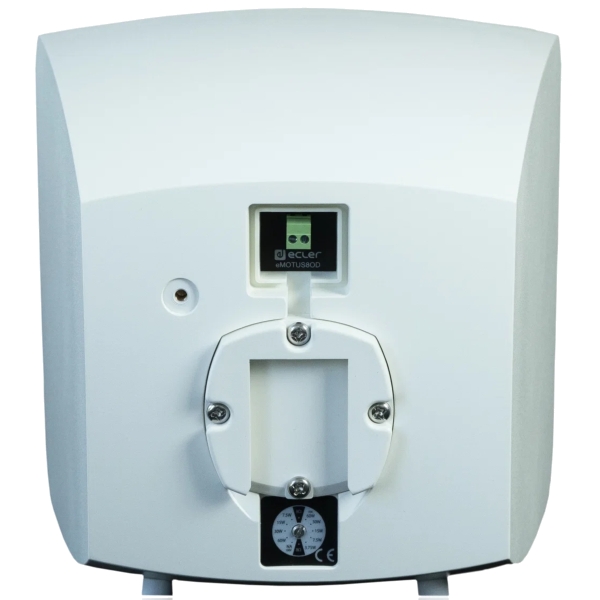

- Back rubber cover for connections

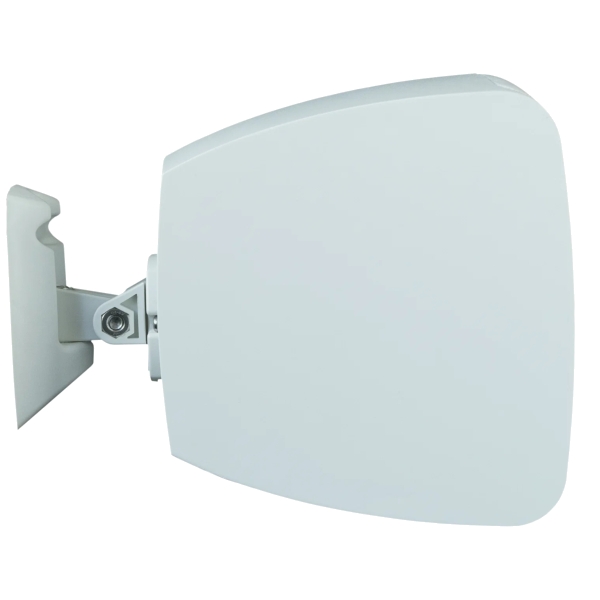

- Includes wall bracket and security steel cable
- Available in black and white colour

Ecler eMOTUS 8OD 8-Inch 2-Way IP65 Passive Speaker Specifications

System:
- Effective Freq. Range: 65Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 142°x142° (HxV)
- Power handling: 100W RMS / 400W Peak
- Sensitivity: 88dB (1W/1m)
- Maximum SPL: 108 db continuous / 114dB peak
- Power options (Hi Z Multi-tap):
  - 70V: 60W / 30W / 15W / 7.5W / 3.75W / 8Ω
  - 100V: 60W / 30W / 15W / 7.5W / 8Ω
- Recommended amplifier power: 200W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 8-inch woofer
- High frequency driver: 1.4-inch tweeter
- Nominal impedance: 8Ω

Physical:
- Environmental: IP65 rated
- Enclosure material: ABS
- Grille material: Aluminium
- Mounting system: Cabinet
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- Finished colour: White (RAL 9003)
- Dimensions (WxHxD):
  - Without Brackets: 264 x 269 x 234 mm
  - With Brackets: 264 x 269 x 322 mm
- Weight:
  - Without Brackets: 4.25 kg
  - With Brackets: 4.75 kg
- Pieces per box: Sold in pairs

Further Product Information Below

Ecler eMOTUS 8OD Manual (PDF)

Ecler eMOTUS 8OD Data Sheet (PDF)

Ecler eMOTUS 8OD Technical Drawing (PDF)

Ecler eMOTUS 8OD 8-Inch 2-Way IP65 Passive Speaker Supplied With

- 2x Ecler CEMOTUS5O16B
- Wall-mount brackets
- Security steel cables
