Ecler IC3 3-Inch Ceiling Speaker, 10W @ 8 Ohms or 70V / 100V Line - White (Pair)

Ecler IC3 3-Inch Ceiling Speaker Features

- 1 way speaker for false ceilings
- 3-inch polypropylene woofer
- Power: 10W RMS @ 8 ohm
- Sensitivity (1W/1m): 86dB SPL

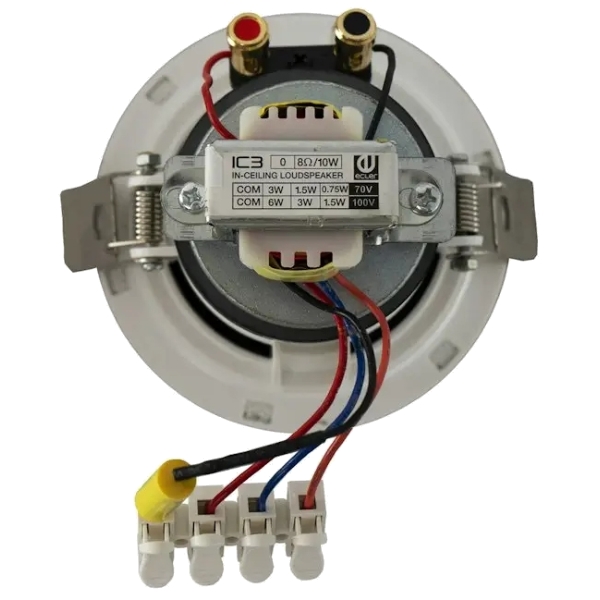

- Built-in transformer
- External diameter: 105mm
- Cut out diameter: 90mm

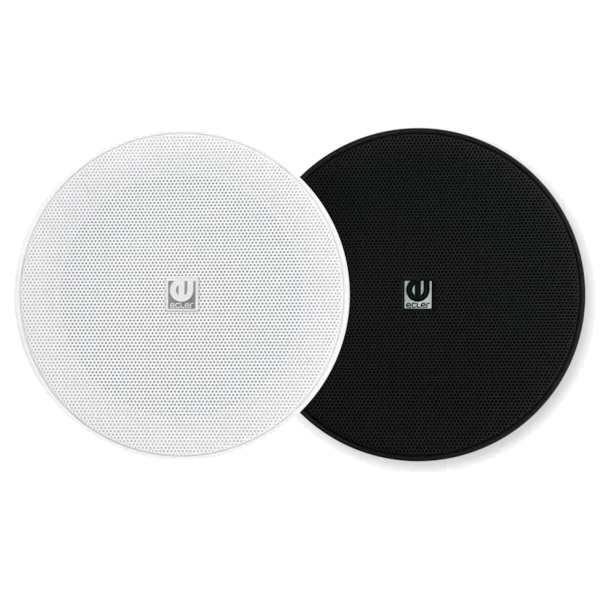

- Available in black (RAL9004) or white (RAL9003) finish
- Installation system: spring clips (installation without tools)

Ecler IC3 3-Inch Ceiling Speaker Specifications

System:
- Effective Freq. Range: 110Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 147°x147° (HxV)
- Power handling: 10W RMS / 40W Peak
- Sensitivity: 86dB (1W/1m)
- Maximum SPL: 96dB continuous / 102dB peak
- Power options (Hi Z Multi-tap):
  - 100V: 6W / 3W / 1.5W / 8Ω
  - 70V: 3W / 1.5W / 0.75W / 8Ω
- Recommended amplifier power: 20W RMS

Drivers:
- Ways: 1-way
- Driver: 3-inch woofer
- Nominal impedance: 8Ω

Physical:
- Connection type: Terminal block
- Power type selector: Built-in selector
- Installation options: Ceiling, wall
- Enclosure material: ABS
- Grille material: Aluminium rust proof
- Mounting system: Spring clips (installation without tools)
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: >85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: >90% HR
- External diameter: 100 mm
- Internal diameter: 85 mm
- Recommended cut out diameter: 85 mm
- Required depth: 95 mm
- Ceiling thickness: No limit min 50 mm
- Finished colour: White (RAL 9003)
- Weight: 0.5 kg
- Pieces per box: 2 units

Further Product Information Below

Ecler IC-Series Manual (PDF)

Ecler IC3 Data Sheet (PDF)

Ecler IC3 Technical Drawing (PDF)
