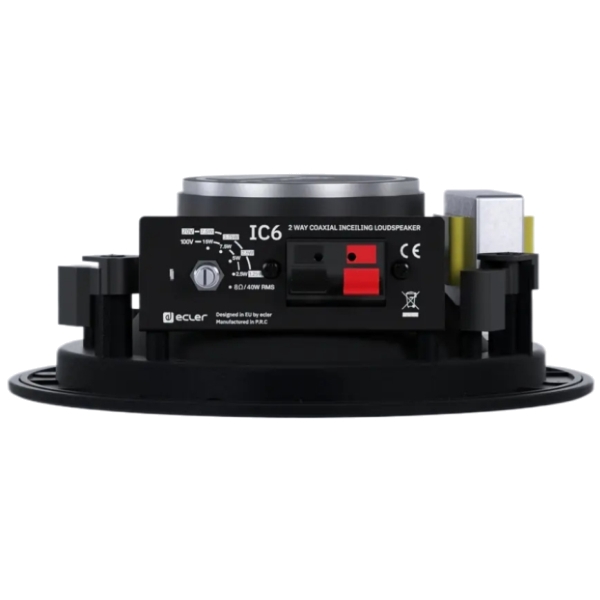

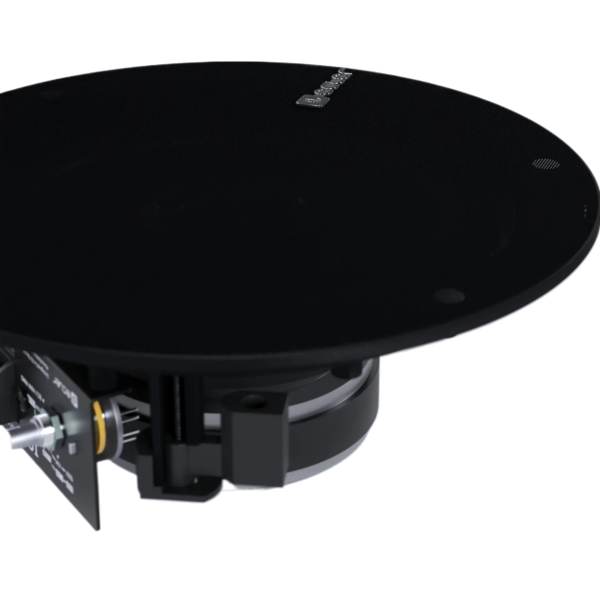

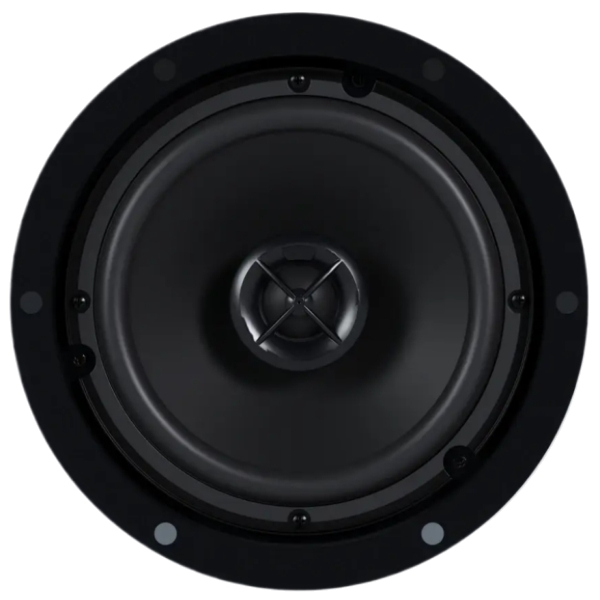

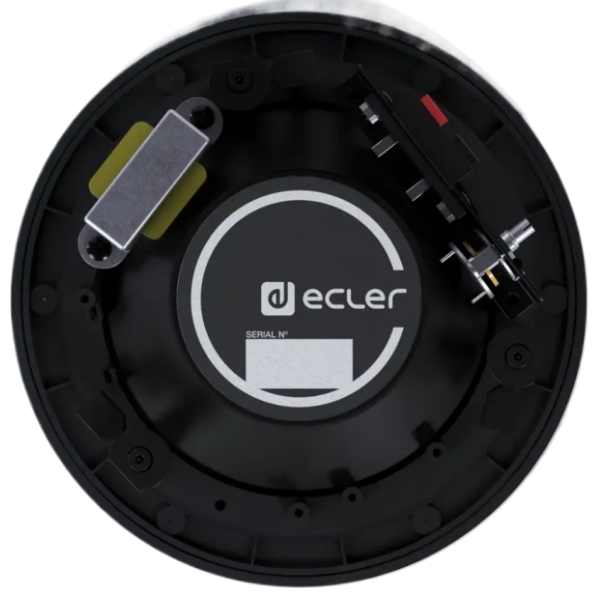

Ecler IC6i 6.5-Inch 2-Way Ceiling Speaker, 40W @ 8 Ohms or 70V / 100V Line - White (Pair)

Ecler IC6i 6.5-Inch 2-Way Ceiling Speaker Features

- Two-way ABS speaker, 40W RMS
- 6.5-inch woofer / 1-inch tweeter
- Built-in audio transformer for 70/100V use
- Polypropylene woofer that resists heat and humidity
- Frameless Magnetic grill
- Front grill may be removed for painting
- The Ecler logo is removable
- Clip-type input terminals and low impedance / high impedance power tap selector
- Cutting template included
- Support system with 3 rotating tabs
- Available in black (RAL9005) or white (RAL9003) finish
- EASE files available

Ecler IC6i 6.5-Inch 2-Way Ceiling Speaker Specifications

System:
- Effective Freq. Range: 75Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 163° conical
- Power handling: 40W RMS / 160W Peak
- Sensitivity: 93dB (1W/1m)
- Maximum SPL: 109dB continuous / 115dB peak
- Power options (Hi Z Multi-tap):
  - 70V: 1.25 / 2.5 / 3.75 / 7.5W
  - 100V: 2.5 / 5 / 7.5 / 15W
- Recommended amplifier power: 80W RMS

Drivers:
- Ways: 2-ways full range
- Low frequency driver: 6.5-inch Woofer
- High frequency driver: 1-inch Tweeter
- Nominal impedance: 8Ω

Physical:
- Connection type: Clip-Type input terminals
- Installation options: In-ceiling / In-wall
- Enclosure material: ABS plastic
- Grille material: Iron
- Grille fixing system: Magnets
- Mounting system: 3 rotating tabs
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- External diameter: 213 mm
- Internal diameter: 178 mm
- Recommended cut out diameter: 180 mm
- Required depth: >73 mm
- Finished colour: Black (RAL 9005)
- Dimensions (W x H x D): 213 x 213 x 72 mm
- Weight: 1.6 Kg
- Pieces per box: 2

Further Product Information Below

Ecler ICi-Series Manual (PDF)

Ecler IC6i Data Sheet (PDF)

Ecler IC6i Technical Drawing (PDF)

Ecler IC6i 6.5-Inch 2-Way Ceiling Speaker Supplied With

- 2x Ecler CIC6iWH
- 1x Cutting template
