Ecler VIC8X 8-Inch 2-Way Ceiling Speaker, 60W @ 8 Ohms or 70V / 100V Line - White (Pair)

Name: Ecler VIC8X 8-Inch 2-Way Ceiling Speaker, 60W @ 8 Ohms or 70V / 100V Line - White (Pair)
Brand: Ecler
Price: 412.73 GBP
Availability: InStock

Price per Pair £343.94 (£412.73 Including VAT at 20%)

REF: JP115378

Quantity:

Ecler VIC8X 8-Inch 2-Way Ceiling Speaker, 60W @ 8 Ohms or 70V / 100V Line - White (Pair)

The Ecler VIC8X 8-Inch 2-Way Ceiling Speaker is an in-ceiling loudspeaker with a great sound performance. It features a 8-inch woofer + 0.5-inch steerable tweeter, 60W RMS @ 8Ω nominal power and 70/100V line transformer with 60/30/15/7.5/3.75W power connections. VIC series provide excellent sound quality thanks to their infinite baffle philosophy and a top-performance high frequency transducer.

The VIC series features a sleek, minimalist design with a magnetic grille that easily attaches to the speaker. This not only makes installation easy, but also allows the grille to be painted to match the décor of the space. VIC series provide a careful selection of components in a user-friendly design that seeks speed and versatility of installation on any surface, while maintaining excellent sound quality.

Supplied in Pairs. Includes back can and tile bridge to provide more flexibility and versatile installation choices

Click Here for Printer Friendly Version

Ecler VIC8X 8-Inch 2-Way Ceiling Speaker Features

- 2-way ceiling loudspeaker
- Paintable magnetic metal alloy grille
- Available in white (RAL9010) finish

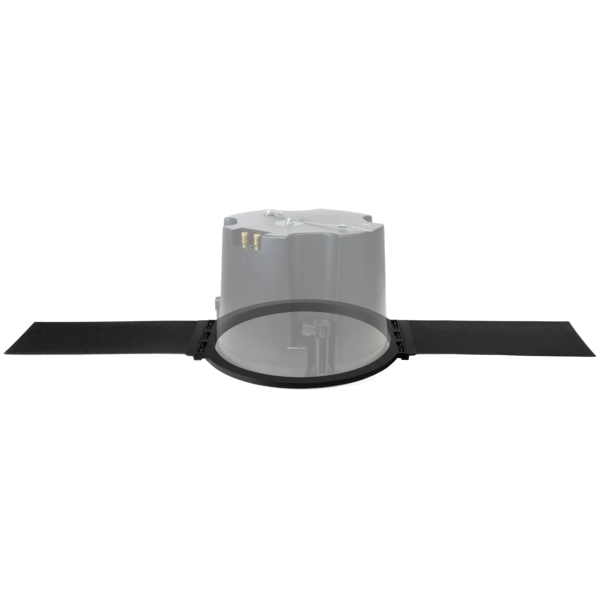

- Includes tile bridge anchors for false ceiling mounting

Ecler VIC8X 8-Inch 2-Way Ceiling Speaker Specifications

System:
- Effective Freq. Range: 75Hz-20kHz (-10dB)
- Coverage angle / Dispersion: 163° conical
- Power handling: 60W RMS / 240W Peak
- Sensitivity: 93dB (1W/1m)
- Maximum SPL: 111dB continuous / 117dB peak
- Power options (Hi Z Multi-tap):
- 70: 60W / 30W / 15W / 7.5W / 3.75W / 8Ω
- 100: 60W / 30W / 15W / 7.5W / 8Ω
- Recommended amplifier power: 120W RMS

Drivers:
- Ways: 2 ways
- Low frequency driver: 8-inch woofer
- High frequency driver: 0.5-inch steerable tweeter
- Nominal impedance: 8Ω

Physical:
- Installation options: Ceiling
- Environmental: IPX4 rated
- Grille material: Magnetic, paintable metal alloy
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- External diameter: 282 mm
- Internal diameter: 245 mm
- Recommended cut out diameter: 246 mm
- Required depth: 200 mm
- Ceiling thickness: 10 mm min, 50 mm max
- Included accessories: Back-can and tile bridge
- Finished colour: White (RAL 9010)
- Dimensions (Ø x D): 282 x 200 mm
- Weight: 3.1 kg
- Pieces per box: Pair

Further Product Information Below

Ecler VIC-Series Manual (PDF)

Ecler VIC8X Data Sheet (PDF)

Ecler VIC8X Technical Drawing (PDF)

Ecler VIC8X 8-Inch 2-Way Ceiling Speaker Supplied With

- 2x Ecler CVIC8X
- 2x Back-cans
- 2x Tile bridges
