Ecler VICSB8 8-Inch Ceiling Subwoofer, 80W @ 8 Ohms or 70V / 100V Line - White

Name: Ecler VICSB8 8-Inch Ceiling Subwoofer, 80W @ 8 Ohms or 70V / 100V Line - White
Brand: Ecler
Price: 211.36 GBP
Availability: InStock

Price Each £176.13 (£211.36 Including VAT at 20%)

REF: JP115376

Quantity:

Ecler VICSB8 8-Inch Ceiling Subwoofer, 80W @ 8 Ohms or 70V / 100V Line - White

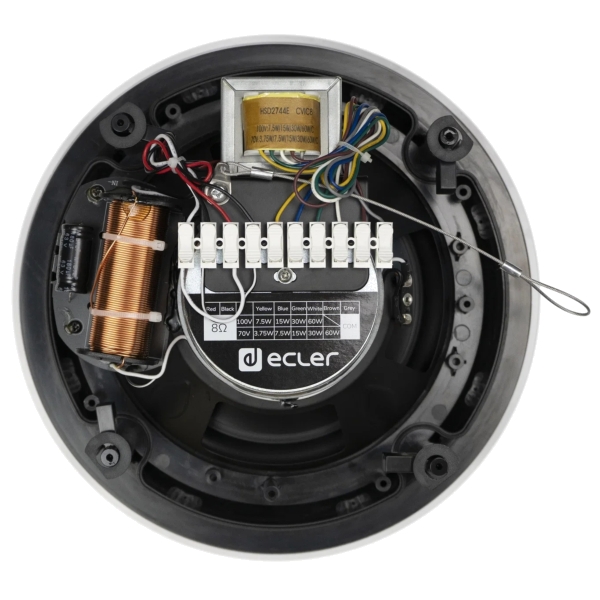

The Ecler CVICSB8 8-Inch Ceiling Subwoofer is an in-ceiling subwoofer reinforcement loudspeaker with a great sound performance. It features an 8-inch woofer, 80W RMS @ 8ohm nominal power and 70/100V line transformer with 60/30/15/7.5/3.75W power connections and it integrates a crossover filter. VIC series provide excellent sound quality thanks to their infinite baffle philosophy.

The VIC series features a sleek, minimalist design with a magnetic grille that easily attaches to the speaker. This not only makes installation easy, but also allows the grille to be painted to match the décor of the space. VIC series provide a careful selection of components in a user-friendly design that seeks speed and versatility of installation on any surface, while maintaining excellent sound quality.

Click Here for Printer Friendly Version

Ecler VICSB8 8-Inch Ceiling Subwoofer Features

- Ceiling Subwoofer
- Paintable magnetic metal alloy grille
- Available in white (RAL9010) finish
- 8-inch polypropylene woofer

Ecler VICSB8 8-Inch Ceiling Subwoofer Specifications

System:
- Effective Freq. Range: 38Hz-180Hz (-10dB)
- Power handling: 80W RMS / 320W Peak
- Sensitivity: 78dB (1W/1m)
- Maximum SPL: 97dB continuous / 103dB peak
- Power options (Hi Z Multi-tap):
- 70V: 60W / 30W / 15W / 7.5W / 3.75W / 8Ω
- 100V: 60W / 30W / 15W / 7.5W / 8Ω
- Recommended amplifier power: 160W RMS

Drivers:
- Ways: 1-way subwoofer
- Driver: LF 8-inch woofer
- Nominal impedance: 8Ω

Physical:
- Installation options: Ceiling
- Environmental: IPX4 rated
- Grille material: Magnetic, paintable metal alloy
- Operating temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Operating humidity: <85% HR
- Storage temperature: Min: -20°C ; -4°F Max: 70°C ; 158°F
- Storage humidity: <90% HR
- External diameter: 282 mm
- Internal diameter: 245 mm
- Recommended cut out diameter: 246 mm
- Required depth: 135 mm
- Ceiling thickness: 10 mm min, 50 mm max
- Finished colour: White (RAL 9010)
- Dimensions (Ø x D): 282 x 135 mm
- Weight: 3.2 kg
- Pieces per box: Unit

Further Product Information Below

Ecler VIC-Series Manual (PDF)

Ecler VICSB8 Data Sheet (PDF)

Ecler VICSB8 Technical Drawing (PDF)
