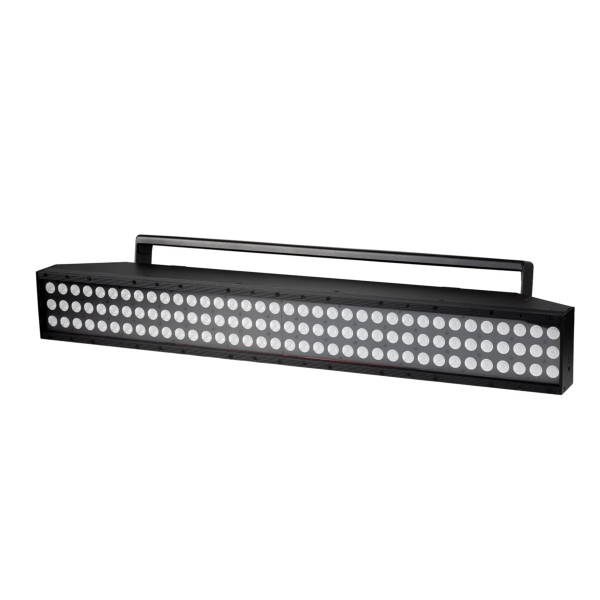

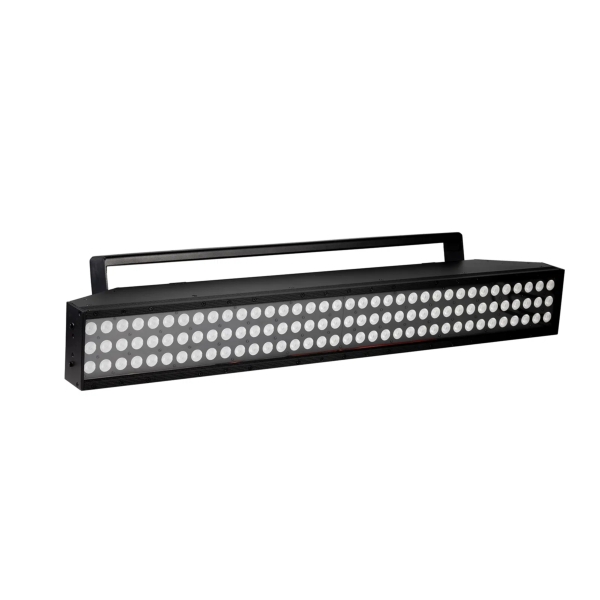

elumen8 Mira 1080 IP RGBW LED Pixel Batten, 108x 10W

Name: elumen8 Mira 1080 IP RGBW LED Pixel Batten, 108x 10W
Brand: elumen8
Price: 904.55 GBP
Availability: InStock

Warning: getimagesize(IMG/ELUM720_L.jpg): failed to open stream: No such file or directory in main on line 183
Error opening zoom image IMG/ELUM720_L.jpg

Price Each £753.79 (£904.55 Including VAT at 20%)

REF: JP112930

Quantity:

elumen8 Mira 1080 IP RGBW LED Pixel Batten, 108x 10W

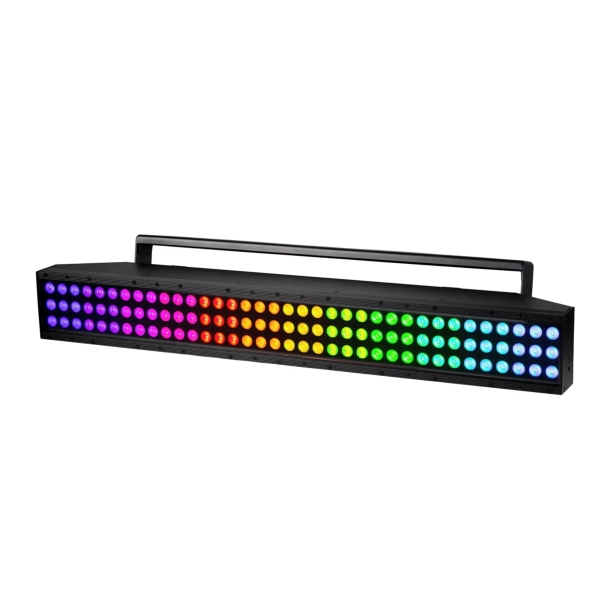

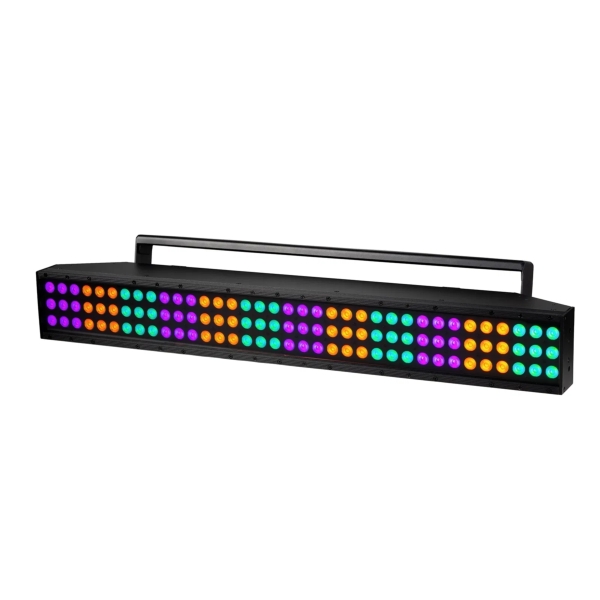

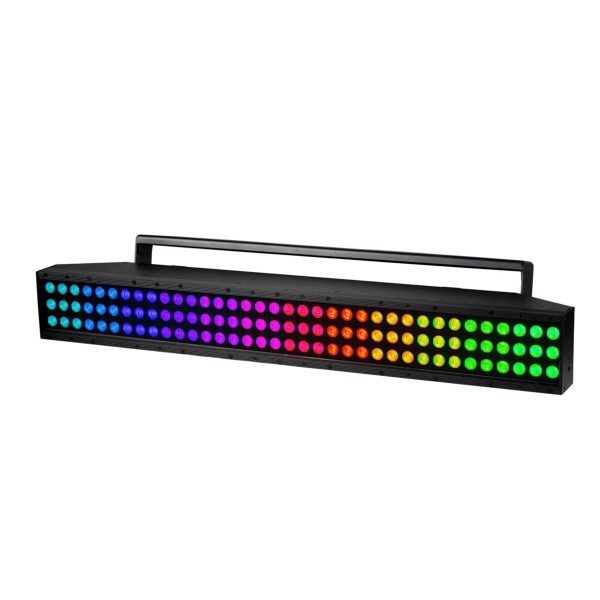

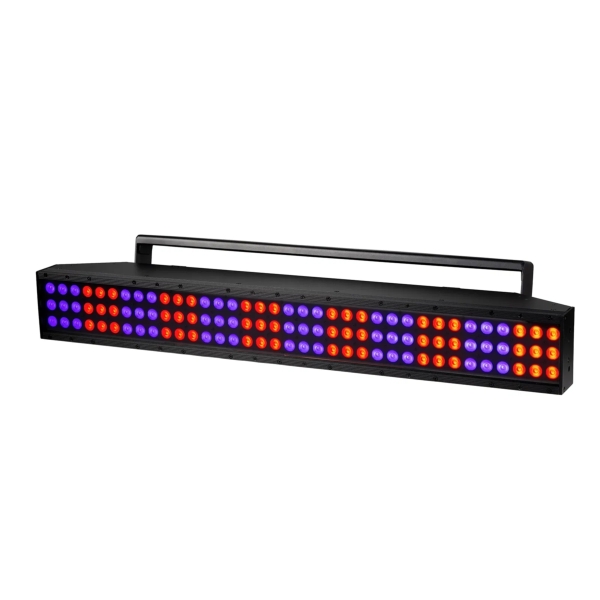

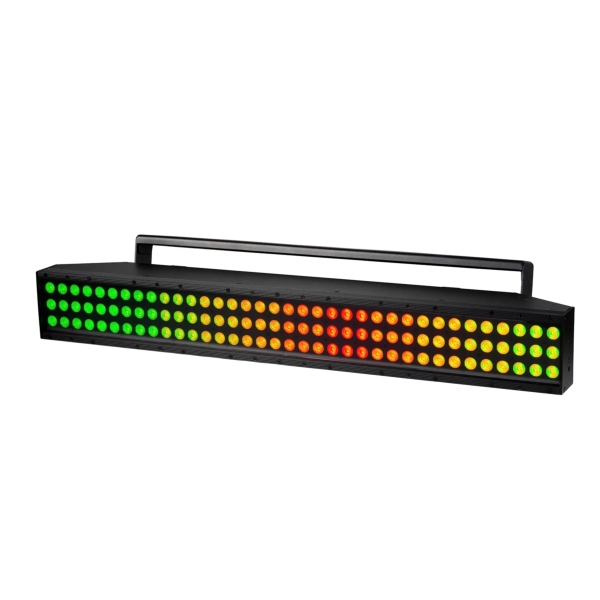

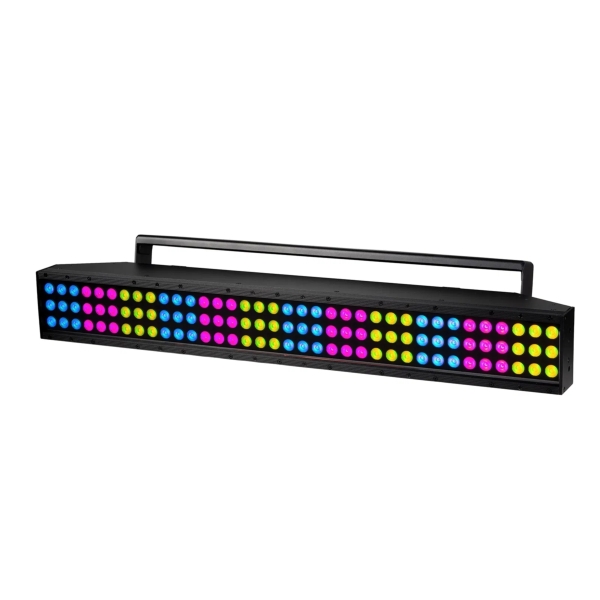

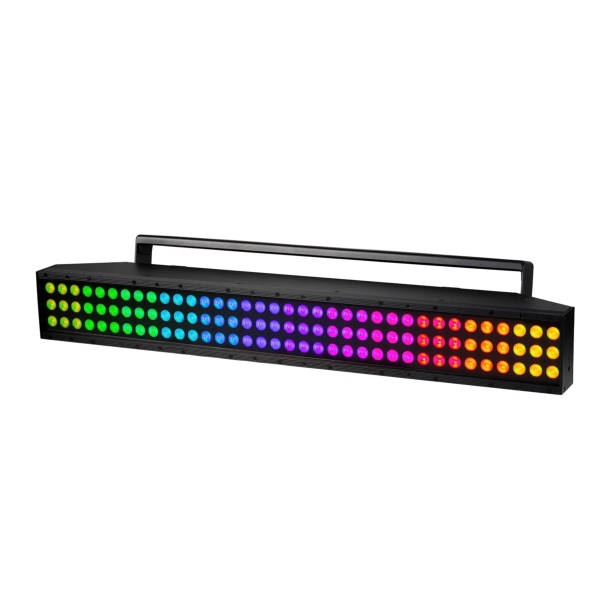

The elumen8 Mira 1080 IP RGBW LED Pixel Batten is a powerful, IP65-rated pixel batten fixture engineered for large-scale outdoor and indoor lighting applications. Featuring 108 x 10W RGBW quad-colour LEDs and a wide 36° beam angle, it produces bold, even washes with 12-zone pixel mapping control. This high-output unit supports DMX, Art-Net, and sACN protocols with selectable refresh rates up to 24kHz for flicker-free camera work. The Mira 1080 includes an integral Art-Net to DMX bridge for downstream control, a heavy-duty adjustable rigging bracket, and quick-release omega clamps. Units can be seamlessly aligned side-by-side to create uninterrupted lighting bars, making it the ideal fixture for stages, arenas, and architectural applications.

Click Here for Printer Friendly Version

elumen8 Mira 1080 IP RGBW LED Pixel Batten Features

- 2 year warranty
- 108 x 10W quad-colour LEDs (RGBW)

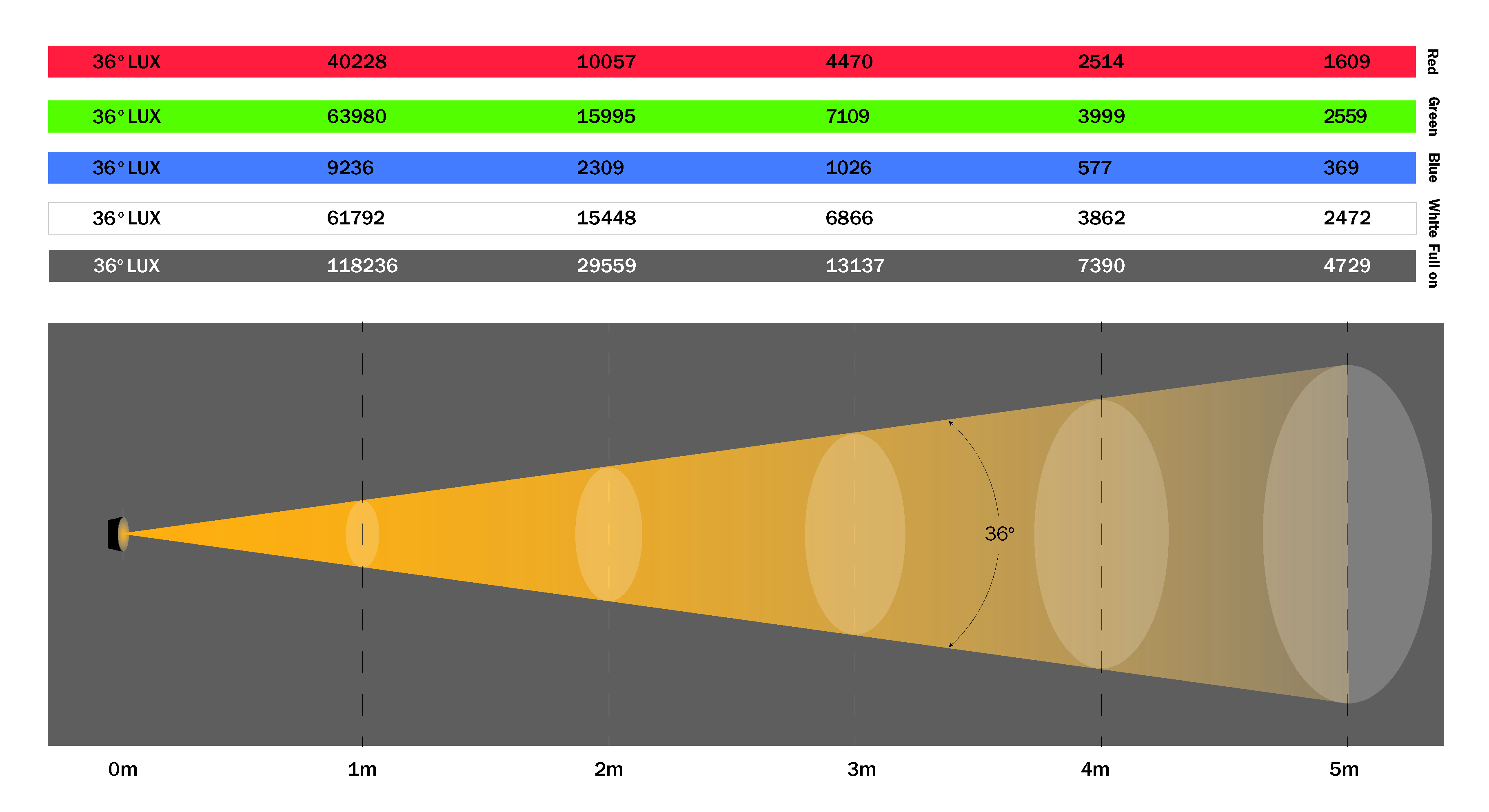

- Beam angle: 36°
- 29,559 Lux @ 2m (full on)
- Refresh rate: 800Hz, 1.2kHz, 2kHz, 4kHz, 6kHz, 8kHz, 16kHz or 24kHz selectable
- 12-zone pixel mapping
- Control protocols: DMX, Art-Net and sACN
- DMX channels: 4/7/9/20/51 or 55 selectable
- Integral Art-Net to DMX for control of DMX fixtures downstream on the same universe
- Static colour, colour temperature and manual modes
- Built-in colour macros and programs
- Colour temperature presets
- 0-100% dimming
- 4 dimming curves: Linear, square law, inverse square law and S-curve
- Variable strobe
- RDM (Remote Device Management)

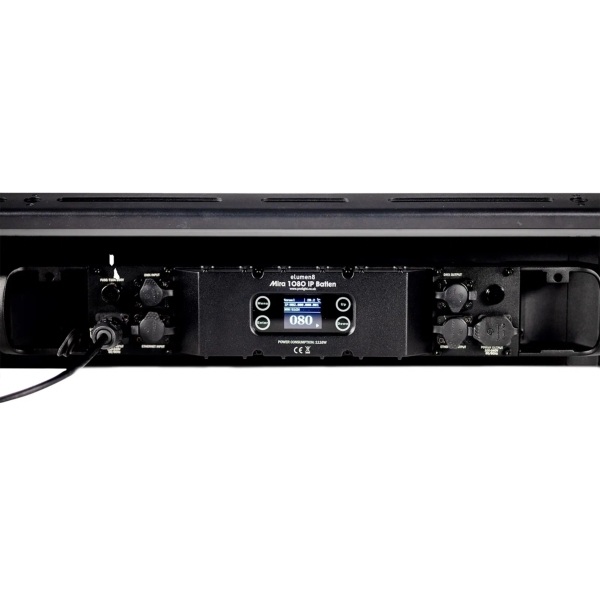

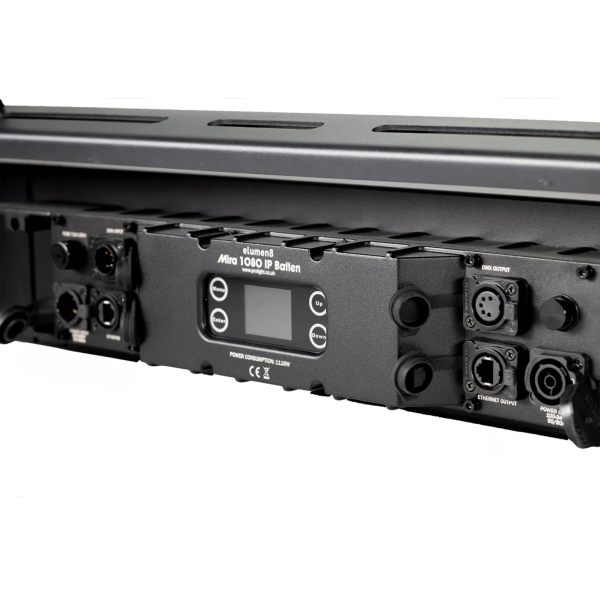

- 4 button menu with LCD display
- Heavy duty bracket allows for multiple rigging applications
- Quick release omega clamps included
- Multiple units can be aligned side-by-side

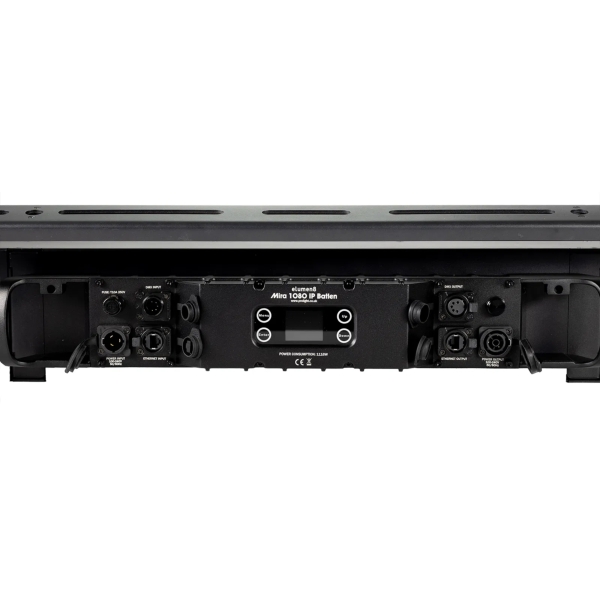

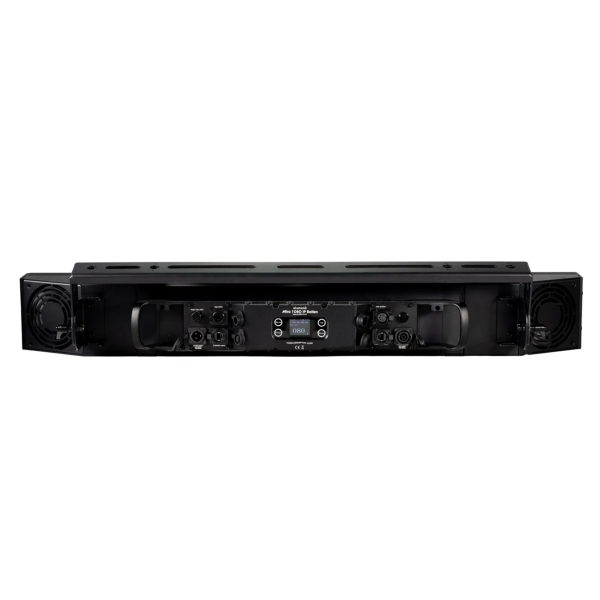

- PowerTwist TR1 input/output
- IP rated 5-pin XLR input/output
- Convection cooled

elumen8 Mira 1080 IP RGBW LED Pixel Batten Specifications

- Power consumption: 1116W
- Power supply: 100~240V, 50/60Hz
- Fuse: T10A 250V
- IP rating: IP65
- Dimensions: 290 x 1005 x 130mm
- Weight: 19kg
