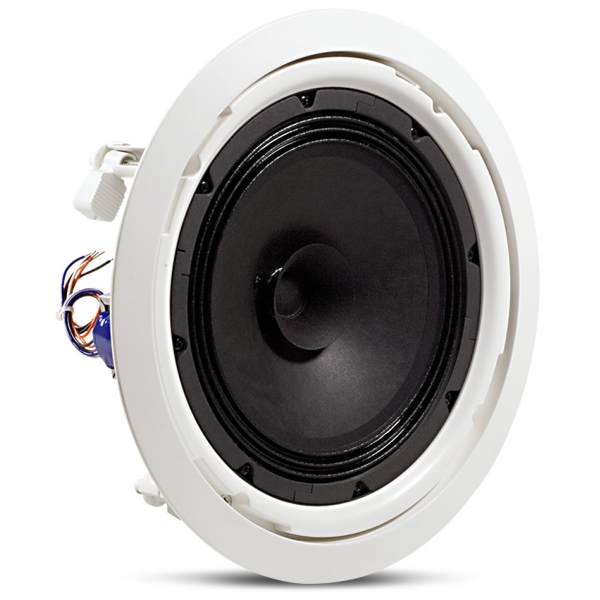

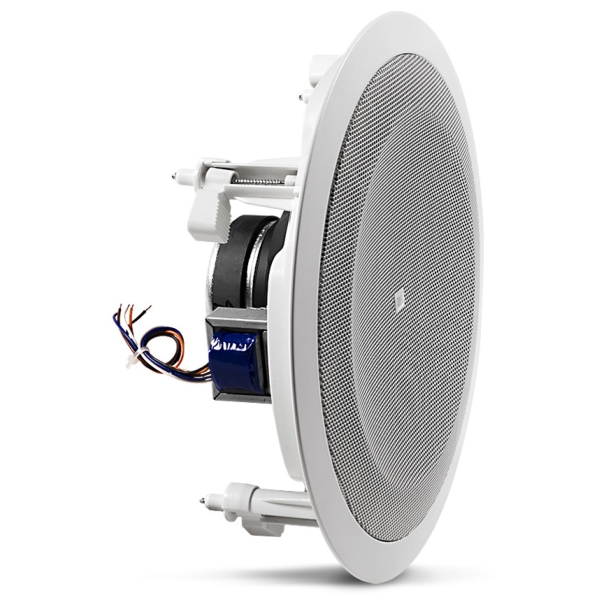

JBL 8100 Series 8128, 8 Inch (200 mm) Full-Range, In-Ceiling Loudspeakers (Pack of 4)

JBL 8100 Series 8128, 8 Inch (200 mm) Full-Range, In-Ceiling Loudspeakers (Pack of 4)

JBL 8100 Series 8128, 8 Inch (200 mm) Full-Range, In-Ceiling Loudspeakers (Pack of 4)

Pack of 4 186.27 Exc VAT or (223.52 Inc VAT at 20%)

For Install and Dealer Volume prices please contact us.

Need to Price Match it ? Click Here to see what we can do.

Ref: JP3122

<Back

Click Here For PDF User Manual

JBL 8100 Series 8128, 8 Inch (200 mm) Full-Range, In-Ceiling Loudspeakers, The 8128 is a 8-inch, full-range, cost-effective loudspeaker for commercial applications. The 8128 features high-fidelity performance in an easy to install package. The systems high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a back can for installation.

Features

  • Clear, High-Fidelity Performance
  • Dog-ears for easy Blind Mount Installations
  • High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
  • 6W Transformer for use of 70V / 100V Distributed Lines
  • Open-back design for applications not requiring an in-ceiling backcan.

Specification

  • Component: 200 mm (8 in) Full-Range
  • Frequency Range (-10 dB): 50 Hz 16 kHz
  • Coverage: 90 conical
  • Sensitivity (2.83V@ 1m): 97 dB (1 kHz - 8 kHz)
  • Termination: Bare Wire
  • Nominal Driver Impedance: 8 ohms
  • Driver Power Capacity: 25W 70V/100V Transformer Taps: 6 W, 3 W, 1.5 W, (0.75 W at 70 V only)
  • Dimensions (Diameter x Depth): 287 mm (11.3 in) diameter round baffle x 104 mm (4.1 in) depth from back of baffle
  • Cutout Dimension: 260 mm diameter (10.1 in)
  • Net Weight: 1.4 kg (3.0 lb)
  • Included Accessories: Sculpted Grille
  • Optional Accessories: MTC-8128C C-ring
  • MTC-RAIL tile rails
  • Plenum Usage: Not intended for use in return air plenums
