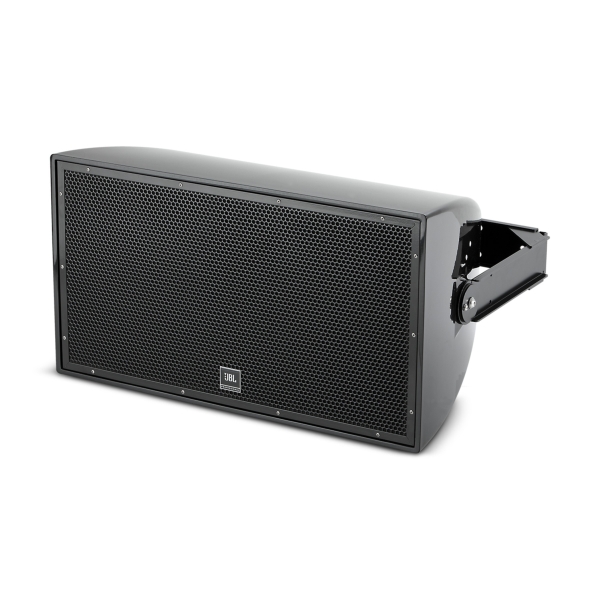

JBL AW566-LS - High Power Two-Way All Weather Loudspeaker (Black)
JBL AW566-LS - EN54-certified Version Of The AW566. 400W Power Rating (100 Hours). Frequency Response ±3dB: 88Hz – 19kHz. Available In Grey Or Black.
The AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 inch) low-frequency driver and 2432H high-frequency 38 mm (1.5 inch) exit, 75 mm (3 inch) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.
Weather-Resistant, All Fiberglass Enclosure
60° x 60° Coverage
2265H Differential Drive Low-Frequency Driver
2432H High Frequency Compression Driver
Large PT Progressive Transition waveguide for excellent pattern control and low distortion
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included
Frequency Response (±3 dB) 89 Hz – 18 kHz
Coverage Pattern 60° x 60°, rotatable waveguide
Coverage Angle 500 Hz 1000 Hz 2000 Hz 4000 Hz
Horizontal - 139° 111° 78° 70°
Vertical - 93° 91° 64° 52°
Directivity Factor (Q) 15.8
Directivity Index (DI) 12 dB
Crossover Frequency 1.1 kHz
Long-Term System Power Rating (IEC) 400 W (1600 W peak), 100 hrs
Maximum SPL 127 dB-SPL cont avg (133 dB peak)
Maximum SPL (@ 4m) 114.24 dB
System Sensitivity (1W @ 1m) 100 dB SPL
Sensitivity (1W @ 4m) 89.6 dB SPL
70V / 100V Transformer Taps 70V: 400 W, 200 W, 100W
100V: 400W, 200W
Low Frequency Driver 1 x JBL 2265H 380 mm (15 inch) Differential Drive driver with 75 mm (3 inch) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 98 dB SPL
High Frequency Driver JBL 2432H, 38 mm (1.5 inch) exit compression driver, 75 mm (3 inch) voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m) 113 dB SPL
Enclosure Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilisation, 1 x M10 on rear for safety.
Grille Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Specifications IP55C per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation) 485 x 810 x 478mm
(19.1 x 31.9 x 18.8 inch)
Net Weight 28.3 kg (62.5 lb)
