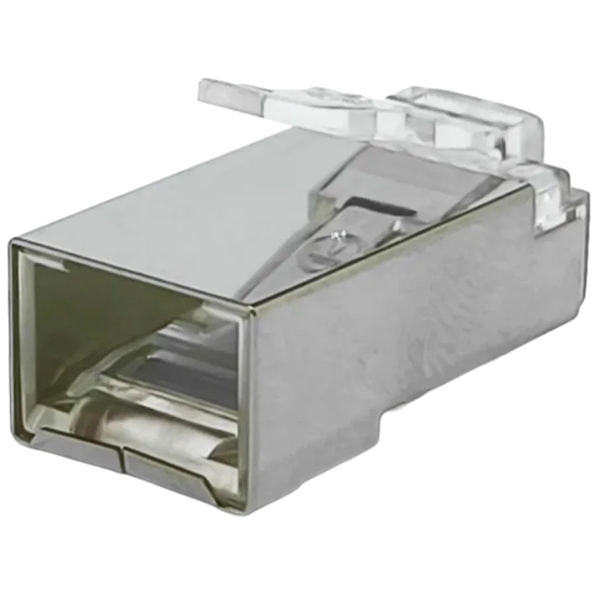

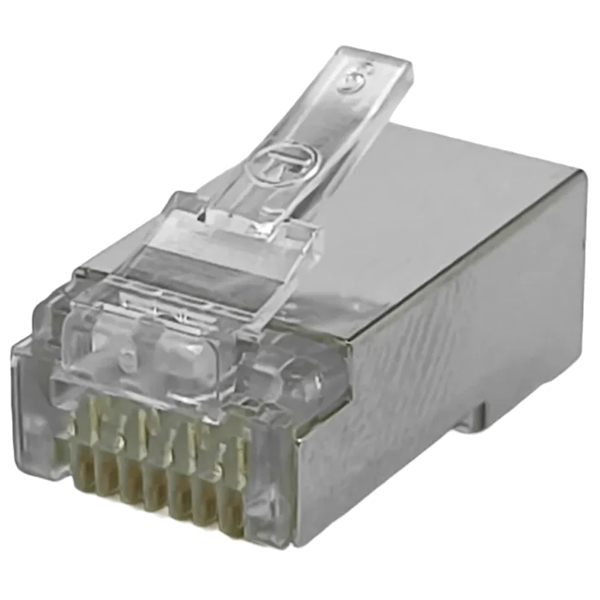

TUK PXcat6S8XL2 CAT6/CAT6A Shielded RJ45 Crimp Plugs (Pack of 50)

Price Each £28.79 (£34.55 Including VAT at 20%)

REF: JP115322

Quantity:

TUK PXcat6S8XL2 CAT6/CAT6A Shielded RJ45 Crimp Plugs (Pack of 50)

The TUK PXcat6S8XL2 CAT6/CAT6A Shielded RJ45 Crimp Plugs with large entry for large outer diameter cable (easily accommodates 7mm O.D.).

Suitable for termination of patch leads to Category 6/6A standard. UL listed. The contact blades are suitable for solid or stranded wire versions and can be used with standard cables or those of larger diameter up to 7mm outer diameter, including tour grade CAT6A or CAT7.

Click Here for Printer Friendly Version

TUK PXcat6S8XL2 CAT6/CAT6A Shielded RJ45 Crimp Plugs Features

- Supplied in a pack of 50
- 2 part (plus foil) plug with large entry for large outer diameter cable (easily accommodates 7mm O.D.)
- Suitable for termination of patch leads to Category 6/6A standard
- UL listed
- Contact blades suitable for solid or stranded wire versions
- Suitable for standard cables or those of larger diameter up to 7mm outer diameter, including tour grade CAT6A or CAT7

TUK PXcat6S8XL2 CAT6/CAT6A Shielded RJ45 Crimp Plugs Specifications

- Supplied: Bags of 50
- Housing: Polycarbonate, UL94V
- Shielding: Nickel-plated copper
- Contacts: 50µ"/1.27µm Gold plated over 100µ"/2.54µm Nickel plate over Phosphor Bronze

Further Product Information Below

TUK PXcat6S8XL2 Data Sheet (PDF)
