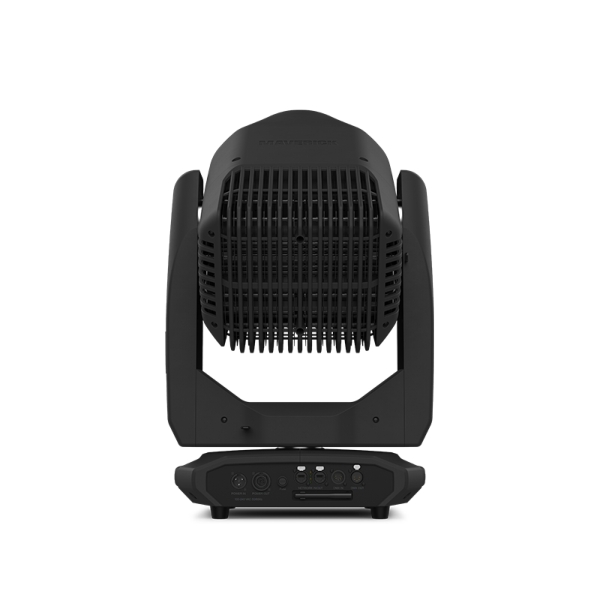

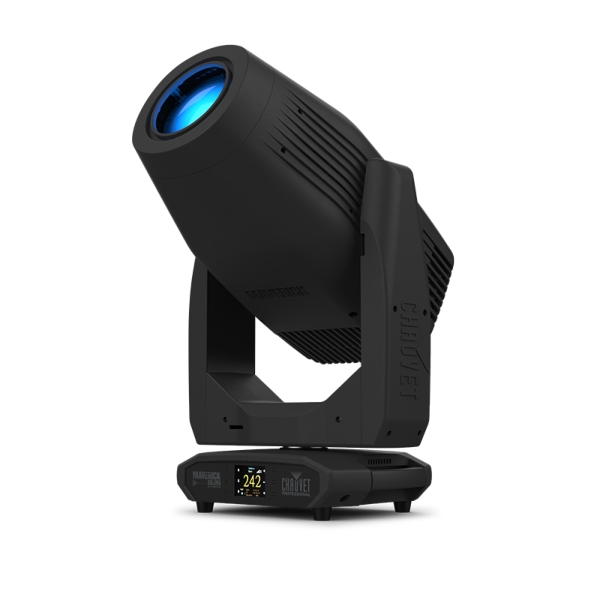

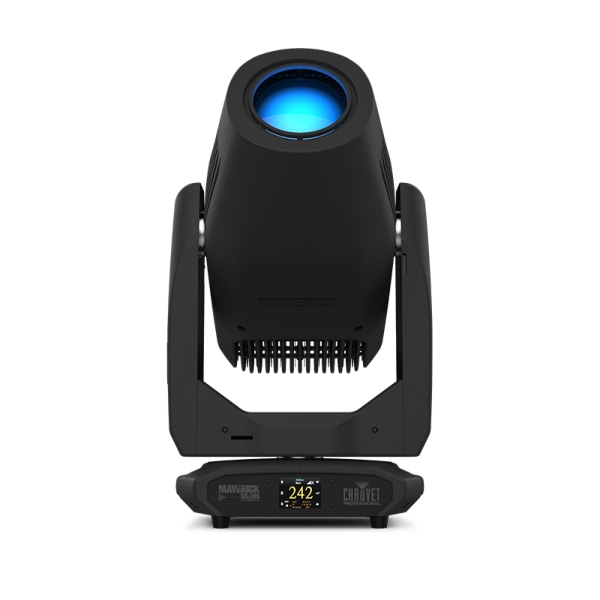

Chauvet Pro Maverick Silens 2X Profile 760W LED Moving Head

Chauvet Pro Maverick Silens 2X Profile 760W LED Moving Head Features

- Completely silent, fully featured 760 W 94+ CRI LED yoke profile fixture including CMY+CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and rotating gobo wheels.
- 100% convection cooled for zero fan noise along with silent motion and effects
- 16-bit dimming with selectable red shift of master dimmer for smooth control of fades
- Variable CMY + CTO color mixing system to create a wide pallet of colors
- One rotating and one static gobo wheel with unique, theatrical based designs
- Interchangeable gobos between rotating and static wheels
- Variable frost system
- + or – 60 degrees rotation framing shutter system to allow for better framing positioning.
- Animation wheel for enhanced visual effects
- Iris for total beam control
- RDM control over DMX for fixture reporting
- 5.5° to 57.9° zoom angle for variable beam sizes
- True 1 compatible power input and throughput
- Battery backup display with auto-rotate depending on fixture orientation

Chauvet Pro Maverick Silens 2X Profile 760W LED Moving Head Specifications

Optical:
- Light Source: 1 LEDs (CW) 750 W, (12 A), 6331 K, 30,000 hours life expectancy
- Light Source: 1 LED (RGB) 13 W, (3.7 A), 50,000 hours life expectancy
- Color Temperature (at full): 6317 K
- CRI: 94.8
- TM-30 Rf: 93.2
- TM-30 Rg: 101.5
- Front Lens Diameter: 138mm
- Beam Angle: 5.5° to 49.9°
- Field Angle: 6° to 53.1°
- Zoom Range: 5° to 58°
- Cutoff Angle: 6.2° to 57.9°
- Zoom Range: 5.5° to 57.9°
- Lumens – Output: 12,748
- Illuminance (5.5°): 30,672 lux @ 5 m
- Illuminance (57.9°): 697 lux @ 5 m
- Selectable PWM: 20,000, 40,000

Dynamic Effects:
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 6 + white, split colors, continuous scroll at variable speeds
- Colors: CMY flags, CTO flag, color correction
- Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 26.9 mm (outside), 22 mm (image)
- Gobo Size: Gobo Wheel 2: 26.9 mm (outside), 22 mm (image)
- Effect Wheel: 1 effect
- Framing Shutters: Yes
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Variable Frost - Motorized
- Iris: Motorized – 15 Leaf
- Prism: 5 Facets, round, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move-in-Black: Yes
- Dim Curves: 4

Connections:
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
- Cable Length (power): 5 ft (1.5 m)

Control:
- Control Protocol: Art-Net, DMX, CRMX, RDM, sACN
- DMX Channels: 32, 33, 41 or 42
- Art-Net Channels: 32, 33, 41 or 42
- Modes/Personalities: 4 personalities (32, 33, 41, and 42)

Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
- Power and Current: 648 W, 2.82 A @ 230 V, 50 Hz
- Power and Current: 654 W, 2.75 A @ 240 V, 50 Hz

Certification / Qualification:
- CE, MET, FCC
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical:
- Exterior Color: Black
- Housing Material: High-impact flame-retardant Polymer
- Dimensions (W x H x D): 433 x 792 x 276 mm
- Weight: 34.4 kg

Further Product Information Below

Chauvet Pro Maverick Silens 2X Profile Manual (PDF)

Chauvet Pro Maverick Silens 2X Profile Data Sheet (PDF)

Chauvet Pro Maverick Silens 2X Profile Quick Reference Guide (PDF)

Chauvet Pro Maverick Silens 2X Profile 760W LED Moving Head Supplied With

- Maverick Silens 2 Profile
- Seetronic Powerkon IP65 power cord
- 2 Omega brackets with mounting hardware
- Gel Frame Holder and Gel Frame
