JBL EBK4 M10-20 Universal M10 Eyebolt Kit

Price Each £66.85 (£80.22 Including VAT at 20%)

REF: JP114778

Quantity:

JBL EBK4 M10-20 Universal M10 Eyebolt Kit

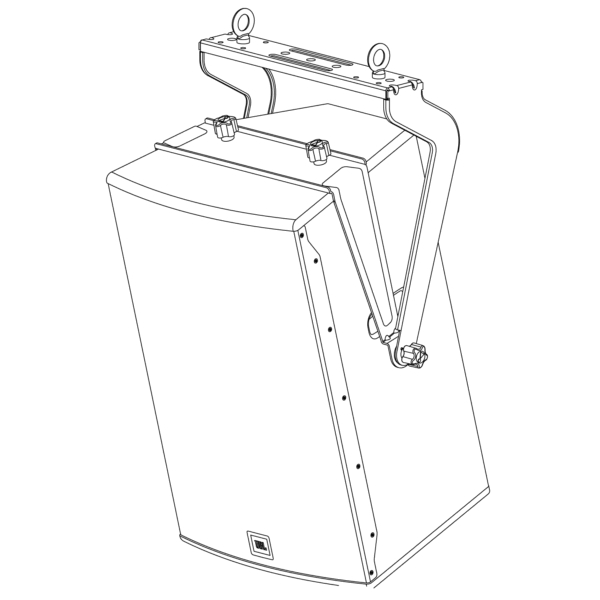

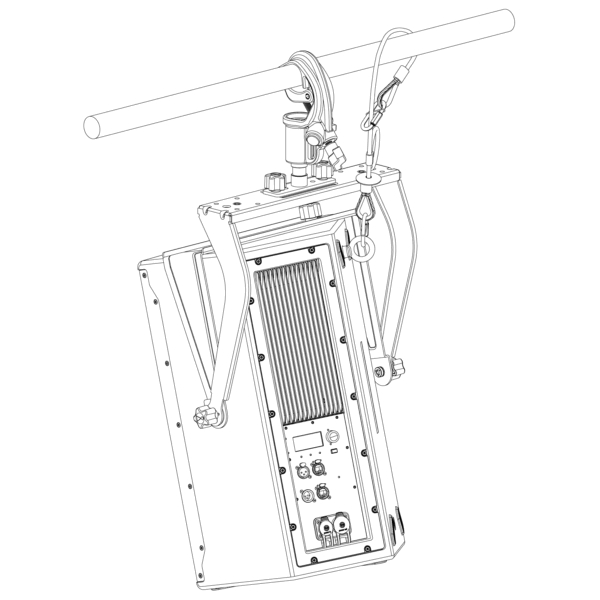

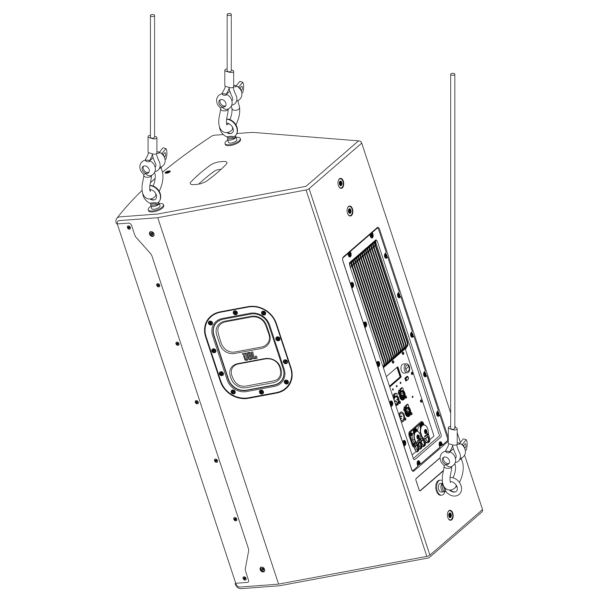

The JBL EBK4 M10-20 Universal M10 Eyebolt Kit s designed for use with JBL loudspeakers equipped with QuickLink™ M10 attachment points. The kit includes four eyebolts and four large washers. The washers must always be used to evenly distribute the load, provide preload to allow proper eyebolt orientation, and protect the enclosure surface from damage.

Click Here for Printer Friendly Version

JBL EBK4 M10-20 Universal M10 Eyebolt Kit Features

- Universal eye bolt kit
- Compatible with QuickLinkTM fitted products
- Threads: M10
- Shank length: 20 mm

JBL EBK4 M10-20 Universal M10 Eyebolt Kit Specifications

- Construction:
- Eyebolt: Forged carbon steel
- Washer: Stainless steel
- Thread Type: M10 x 1.5
- Shank Length: 20 mm
- Eyelet Opening: 24 mm
- Working Load Limit (WLL):
  - 0°: 230 kg
  - 45°: 170 kg
  - 90°: 115 kg
- Safety Factor: 10:1
- Dimensions (H x W x D): 63 mm x 44 mm x 25 mm
- Net Weight1: 0.4 kg

Further Product Information Below

JBL SRX900 Series Manual (PDF)

JBL EBK4 M10-20 Data Sheet (PDF)

JBL EBK4 M10-20 Quick Reference Guide (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

JBL EBK4 M10-20 Universal M10 Eyebolt Kit

Related products:

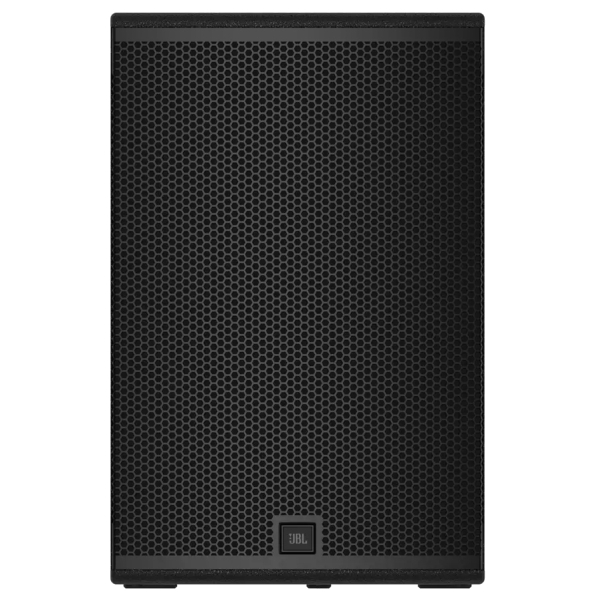

JBL SRX912M 12-inch 2-Way Active Multi-Purpose Speaker, 600W

JBL SRX915M 15-inch 2-Way Active Multi-Purpose Speaker, 600W

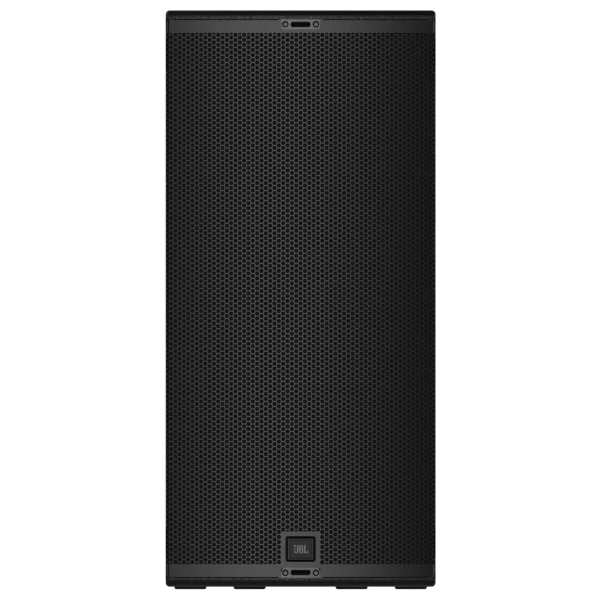

JBL SRX922 Dual 12-inch 3-Way Active Point-Source Speaker, 1100W
