Neutrik NBB75FA BNC Feed Through Coupler

Name: Neutrik NBB75FA BNC Feed Through Coupler
Brand: Neutrik
Price: 11.93 GBP
Availability: InStock

Price Each £9.94 (£11.93 Including VAT at 20%)

REF: JP113898

Quantity:

Neutrik NBB75FA BNC Feed Through Coupler

The Neutrik NBB75FA BNC Feed Through Coupler offers a true 75 Ω design for serial and digital (HD & UHD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Click Here for Printer Friendly Version

Neutrik NBB75FA BNC Feed Through Coupler Features

- Manufacturers Part Code: NBB75FA

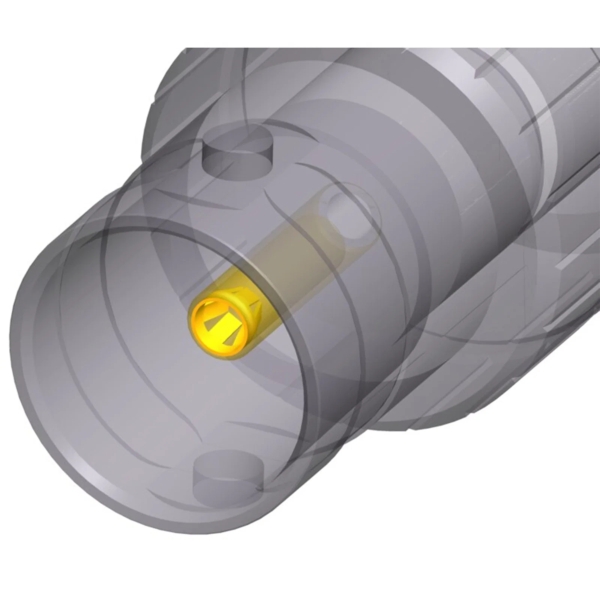

- Gold plated cage type centre contact
- True 75 Ω design meets the stringent HD & UHD requirements
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
- Signal Types: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV

Neutrik NBB75FA BNC Feed Through Coupler Specifications

- Connection Type: BNC 75Ω
- Gender: Female
- Impedance: 75Ω (true impedance design)
- Signal Types Supported: HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV
- Rated Voltage: <50V
- Contact Resistance: ≤3mΩ (inner), ≤2mΩ (outer)
- VSWR / Return Loss: ≤1.03 / >37dB up to 1GHz; ≤1.05 / >32dB up to 2GHz; ≤1.08 / >28dB up to 3GHz
- Dielectric Strength: 1.5kVdc
- Insulation Resistance: >5GΩ
- Insertion Force: <25N
- Mating Cycles: >1000 cycles
- Locking Mechanism: Bayonet
- Contact Material: Brass (CuZn39Pb3)
- Insert Material: PTFE
- Shell Material: Brass (CuZn39Pb3)
- Operating Temperature: -30°C to +85°C

Further Product Information Below

Neutrik NBB75FA Data Sheet (PDF)

Neutrik NBB75FA Technical Drawing (PDF)
