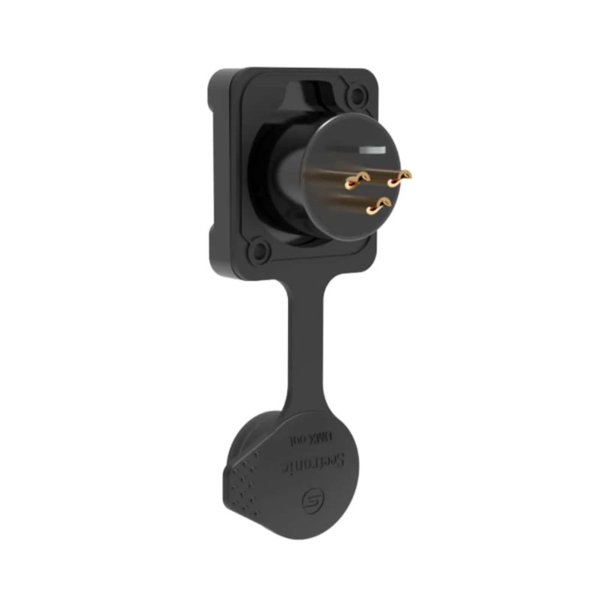

Seetronic J3F2C-W-B IP65 3-Pin Male Chassis Connector - Black

Seetronic J3F2C-W-B Features

- IP65-rated when capped or mated-dust-tight and splash-resistant
- Black-plated zinc-alloy D-shell housing; front-panel mounting
- Gold-plated copper-alloy contacts with ≤ 5 mΩ contact resistance
- Capacitance ≤ 4 pF for clear and stable signal transmission
- Airtight rear sealing withstands 0.2 MPa air pressure
- Rated for 16 A per contact; < 50 V operating voltage
- Durability: > 1,000 mating cycles; insertion/withdrawal force ≤ 20 N
- Operating temperature: -30 °C to +80 °C
- Flame rating: UL94 HB; compliant with IEC 61076-2-103 and IEC 68-2-20

Seetronic J3F2C-W-B Specifications

- Connector Type: 3-pin XLR male chassis connector (D-size, front-mount)
- Contact Resistance: ≤ 5 mΩ
- Capacitance: ≤ 4 pF
- Dielectric Strength: 1,500 V DC
- Insulation Resistance: > 10 GΩ
- Rated Current: 16 A per contact
- Rated Voltage: ≤ 50 V
- Insertion/Withdrawal Force: ≤ 20 N
- Mechanical Life: > 1,000 mating cycles
- Materials: Housing - black-plated zinc alloy; Insert - PA; Contacts - gold-plated Cu alloy
- Operating Temperature: -30 °C to +80 °C
- Protection Rating: IP65 (sealed when capped or mated)
- Certifications: IEC 61076-2-103; Solderability per IEC 68-2-20; Flame rating UL94 HB
- Pre-attached IP65-rated hinged rubber protective cap
- Front-panel sealing gasket (included)
