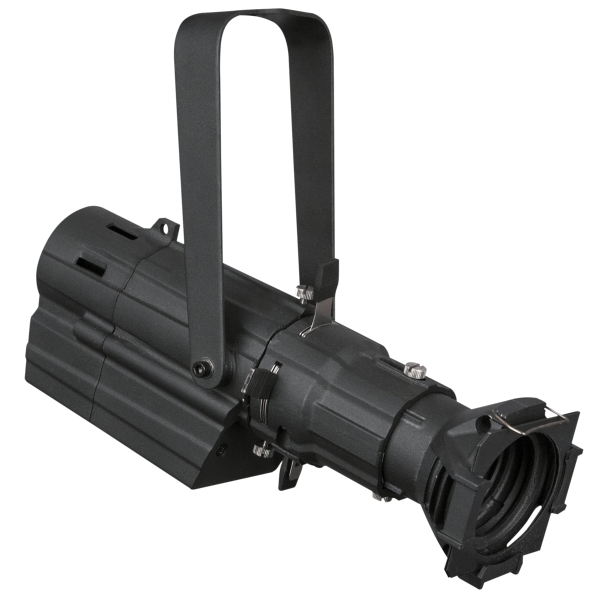

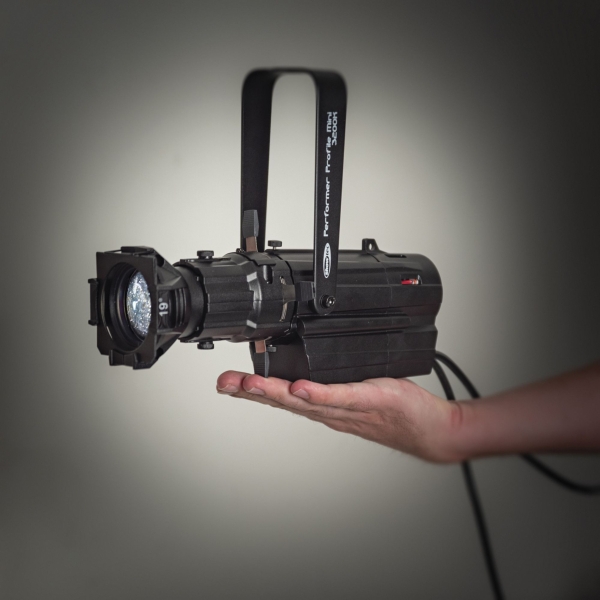

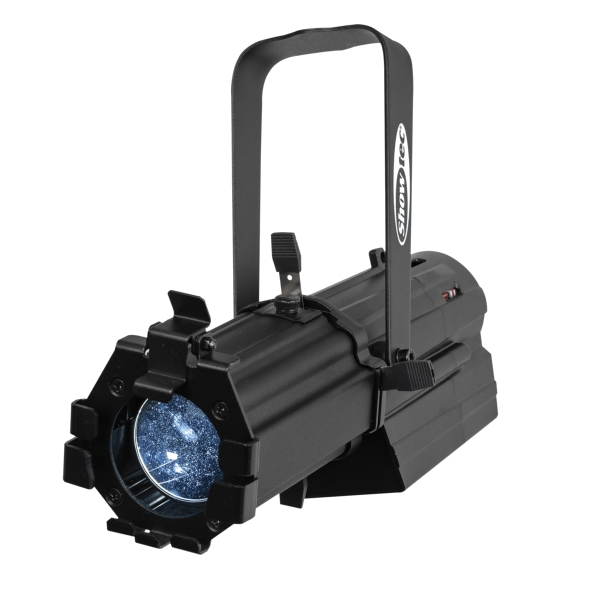

Showtec Performer Profile Mini WW LED Profile

Showtec Performer Profile Mini WW LED Profile Features

- 20 W Warm White COB LED ellipsoidal

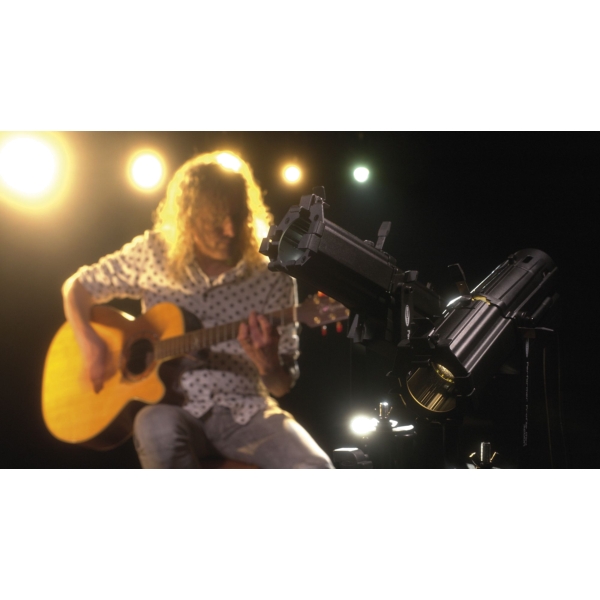

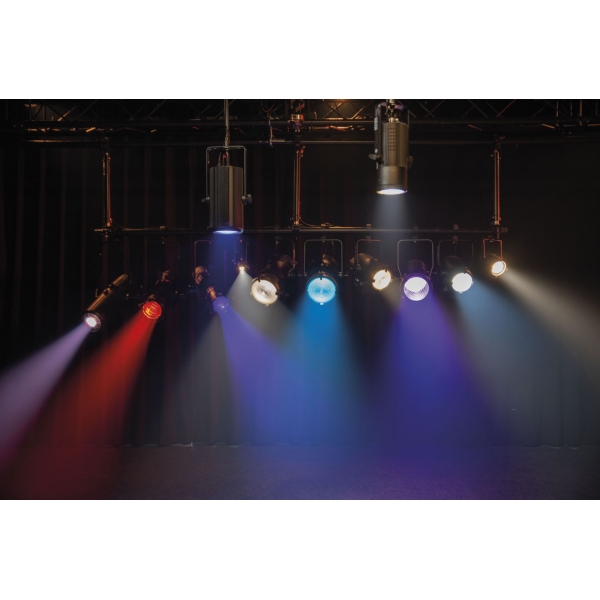

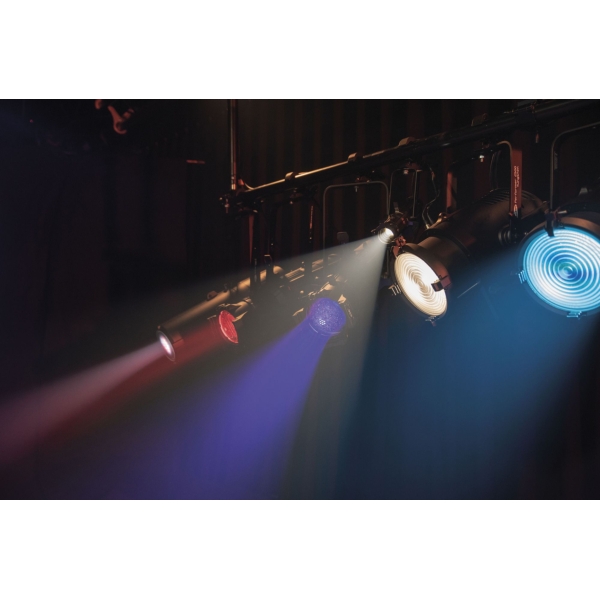

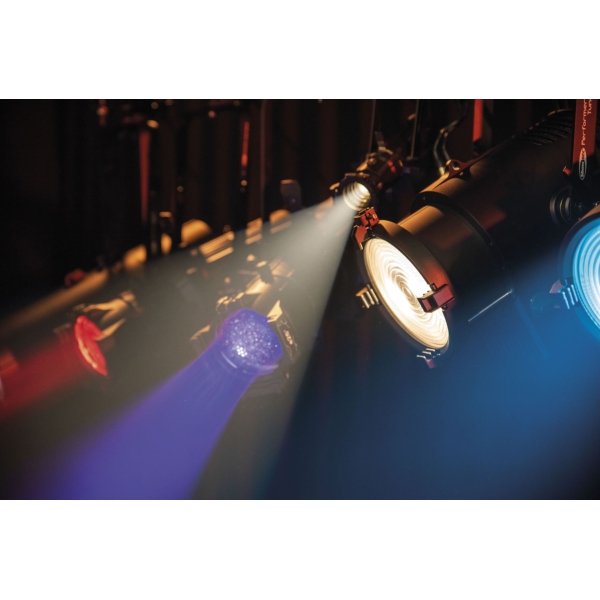

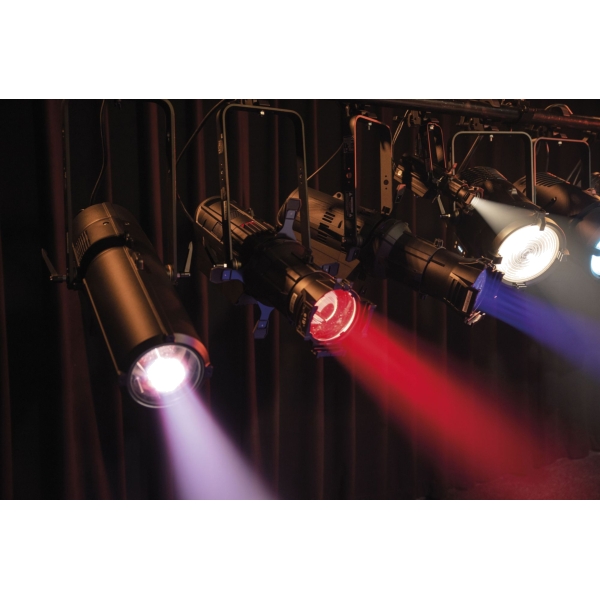

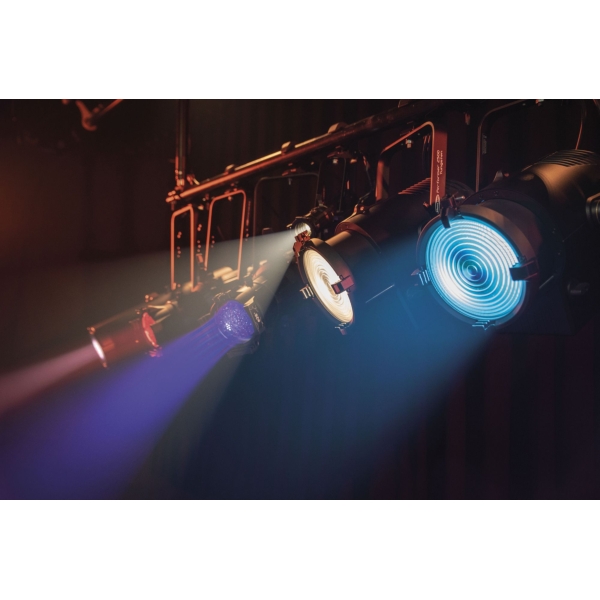

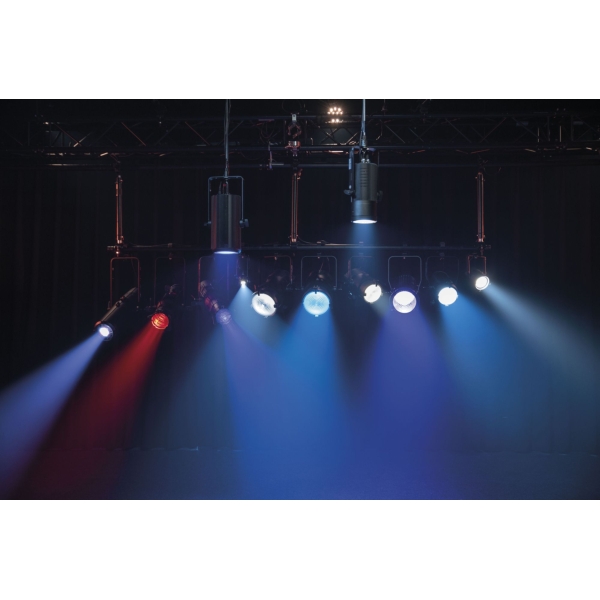

- Suitable for theatrical and studio applications
- DMX dimmer function
- Silent operation

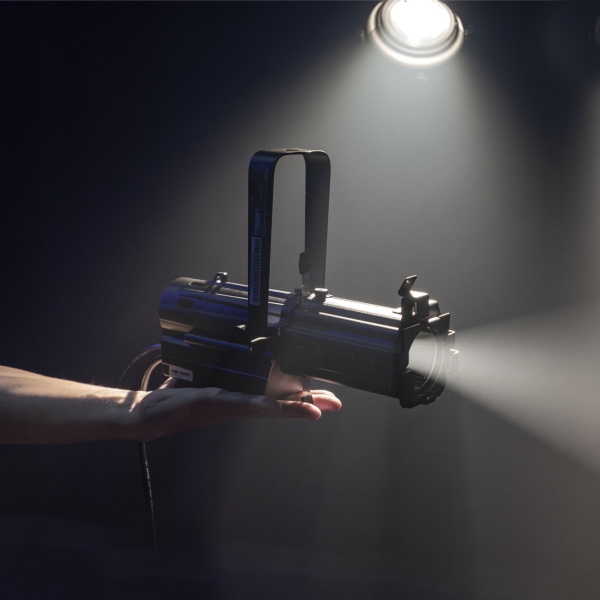

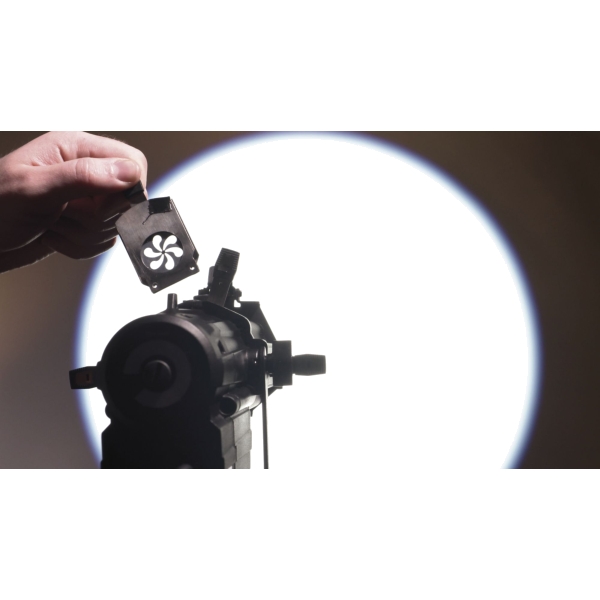

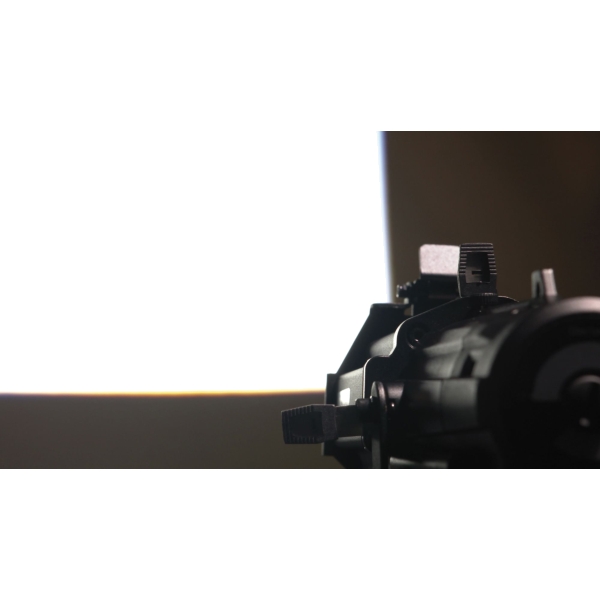

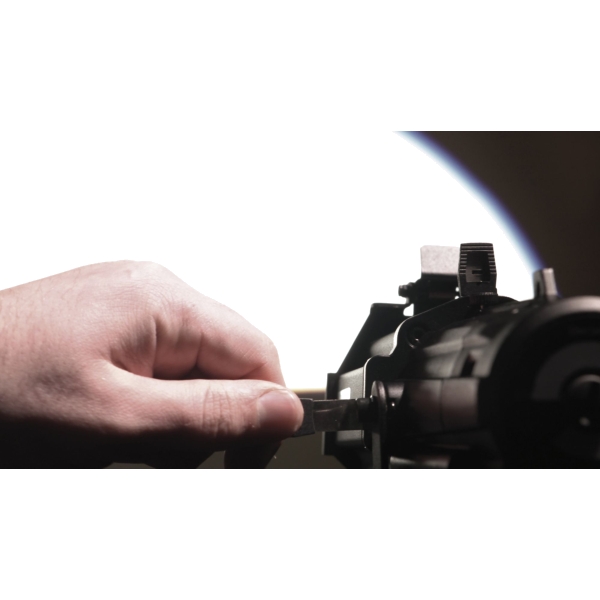

- Hard edge, precisely focused field of light

Showtec Performer Profile Mini WW LED Profile Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 20 W
- LED Colour Type: WW
- Drive Current: 0.5 A
- Luminous Flux (Total): 1500 lm
- Maximum CCT: 3200 K

Control and Programming:
- Control Mode: DMX
- DMX Channels: 1
- Protocols: DMX, RDM

Dynamic Effects:

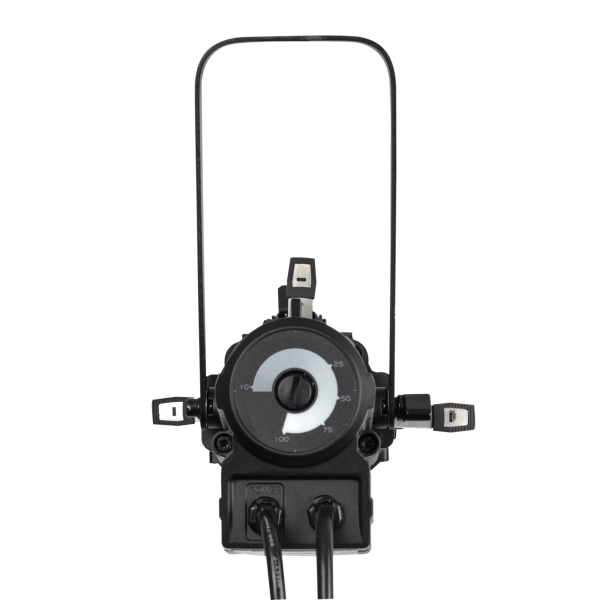

- Dimmer: 0-100 %

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 22 W
- Power Connector In: Internal Powerlink with custom power connector
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- Length: 345 mm
- Width: 130 mm
- Height: 231 mm
- Weight: 1.3 kg (2.866 lb)
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium die-cast
- Colour: Black

Product Properties:
- Cooling: Convection

Thermal Specifications:
- Maximum Ambient Temperature: 70 °C (158 °F)
- Maximum Surface Temperature: 50 °C (122 °F)
- Minimum Operating Temperature: -10 °C (14 °F)
