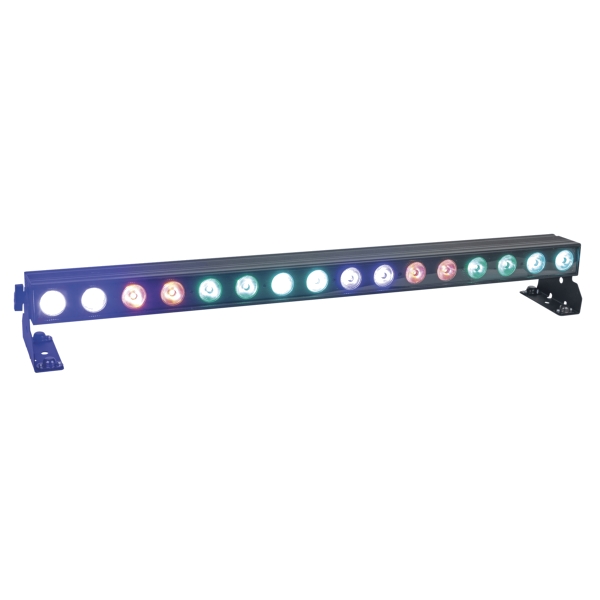

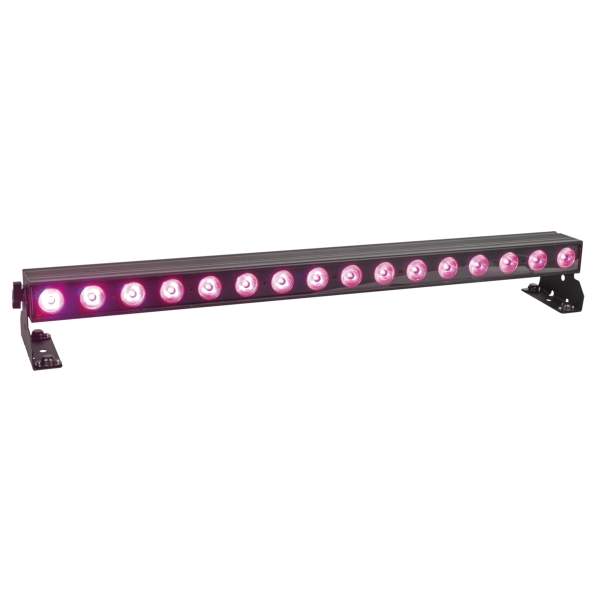

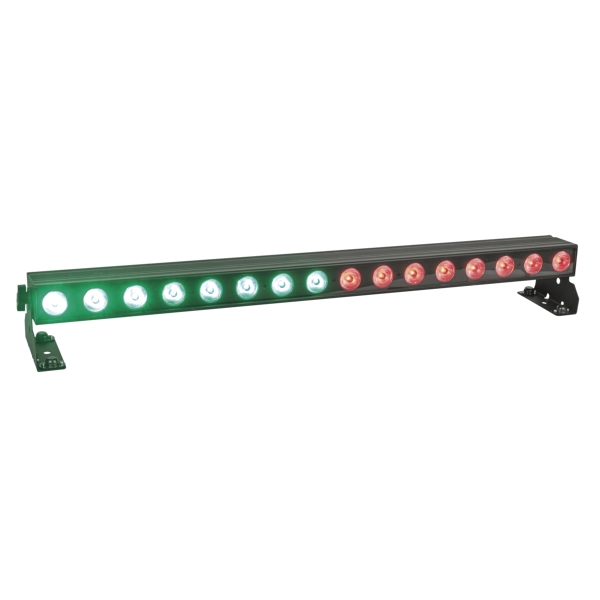

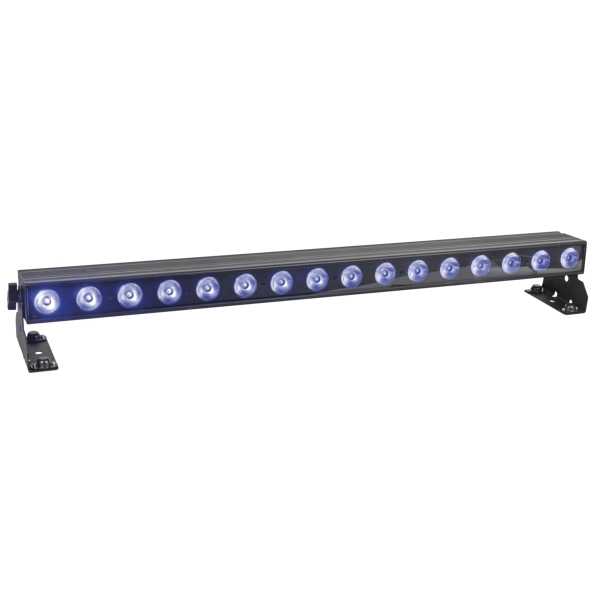

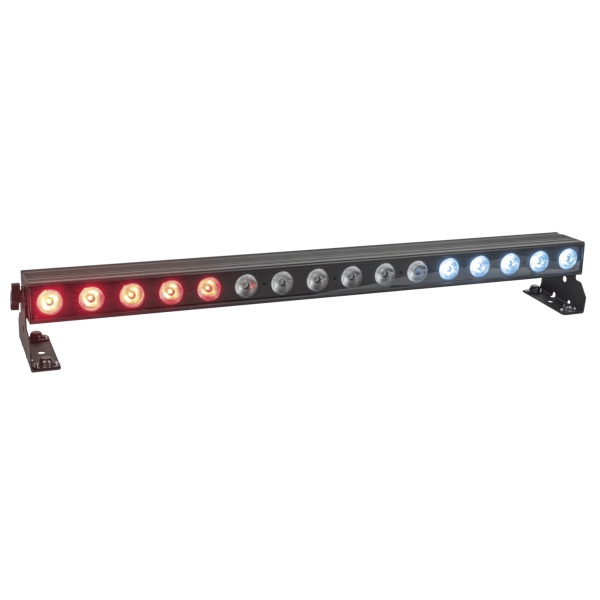

Showtec Pixel Bar 16 RGBWAUV LED Batten

Name: Showtec Pixel Bar 16 RGBWAUV LED Batten
Brand: Showtec
Price: 411.32 GBP
Availability: InStock

Price Each £342.77 (£411.32 Including VAT at 20%)

REF: JP114005

Quantity:

Showtec Pixel Bar 16 RGBWAUV LED Batten

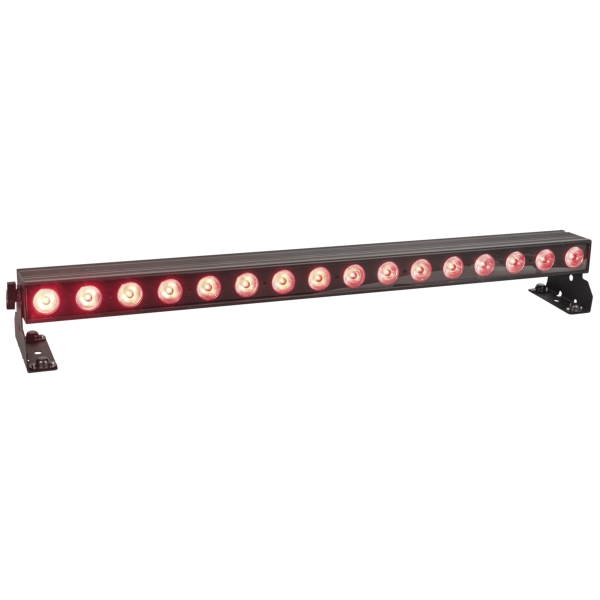

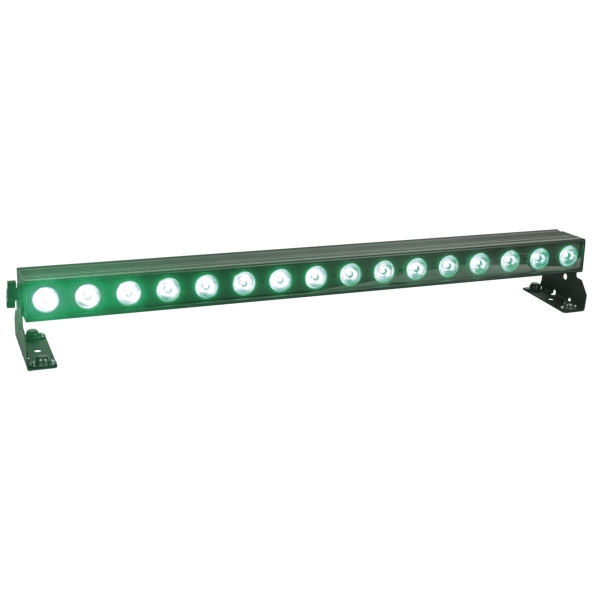

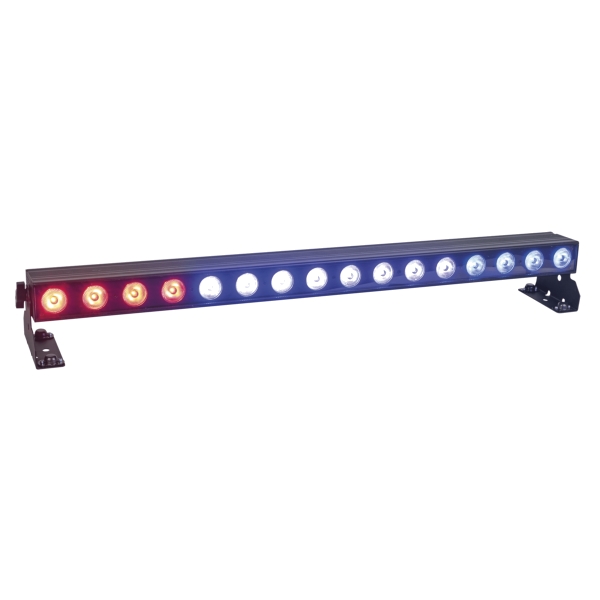

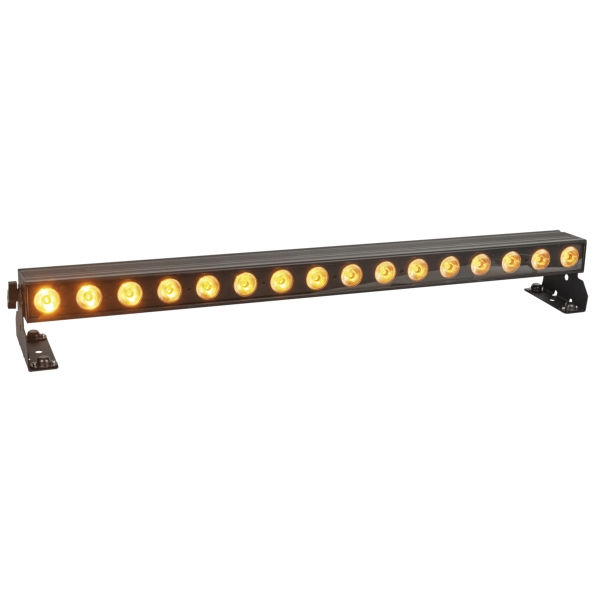

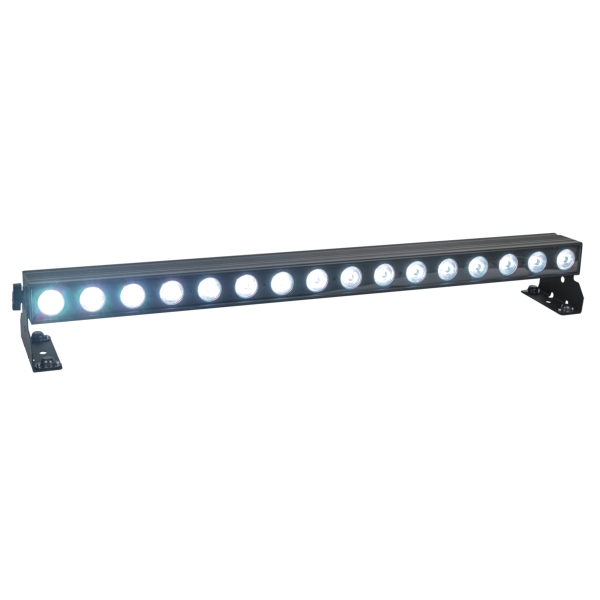

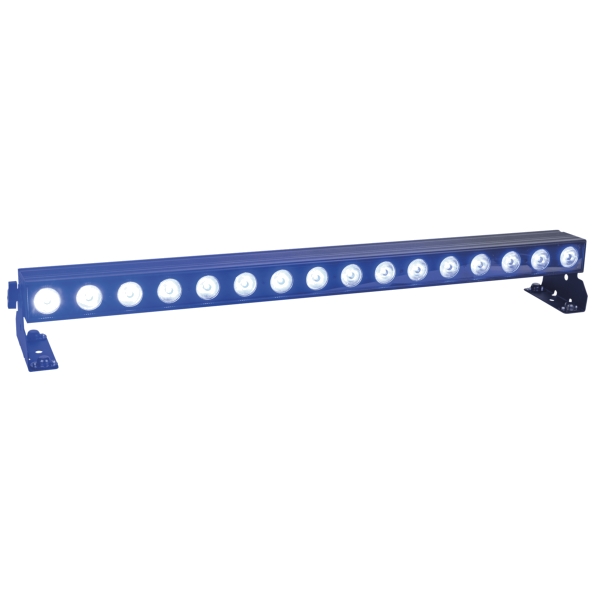

The Showtec Pixel Bar 16 RGBWAUV LED Batten is a cost-effective LED bar with 16x 6-in-1 RGBWA-UV LEDs. In order to ensure complete control, this batten offers full pixel control in 101 channel mode to create beautiful colour flows, but can also be controlled in 6, 8.12 and 96 HSV & HSI modes for more basic use. With the RGBWA-UV LEDs, it is possible to create both saturated and pastel colours. The UV colour makes the Pixel Bar suitable for special FX in combination with UV colours. A clear LCD display with an intuitive menu structure makes setting up as easy as ABC. Multiple mounting positions make rigging easy, allowing creative setups.

Click Here for Printer Friendly Version

Showtec Pixel Bar 16 RGBWAUV LED Batten Features

- RGBWA-UV LEDs
- Individual Pixel Control
- DMX and Art-Net Control
- Brackets included

Showtec Pixel Bar 16 RGBWAUV LED Batten Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 16
- Light Source Power: 10 W
- LED Colour Type: RGBWAUV
- Refresh Rate: 12000 Hz
- Luminous Flux (Total): 4020 lm

Optical:
- Beam Angle (Horizontal): 25 °
- Beam Angle (Vertical): 25 °

Control and Programming:
- Control Mode: Art-Net, Auto, DMX, Manual, Master Slave, Stand Alone
- DMX Channels: 6, 8, 12, 96, 101
- Protocols: Art-Net, DMX
- Display: LCD

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-25 Hz

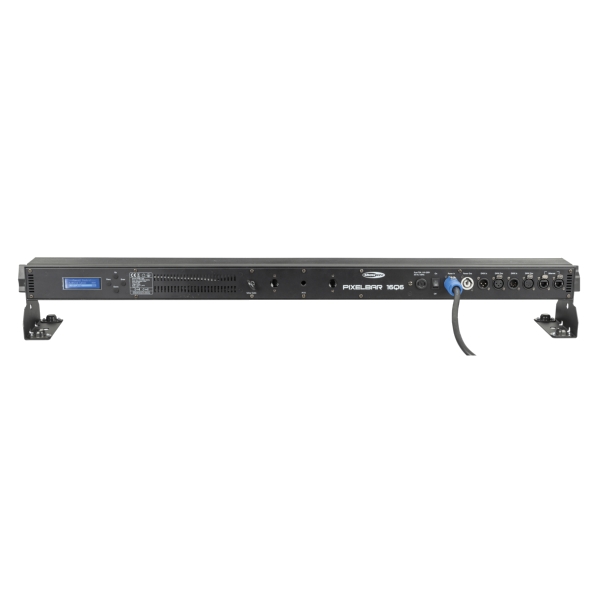

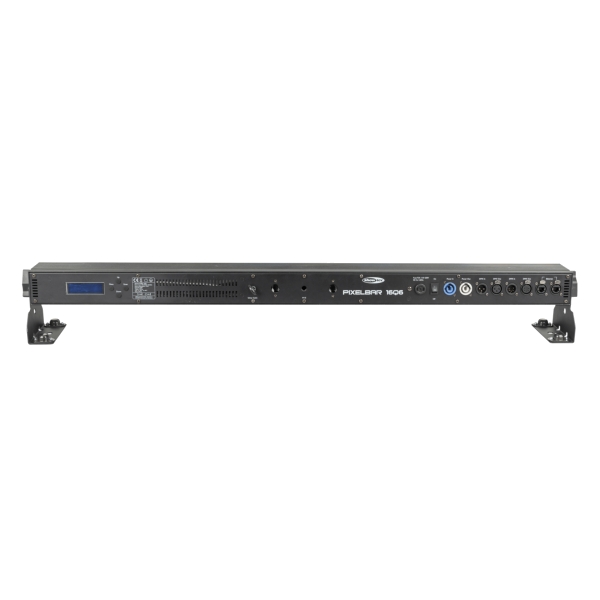

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 170 W
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out, XLR 5P In/Out
- DMX Connector In: XLR 3P, XLR 5P
- DMX Connector Out: XLR 3P, XLR 5P
- Data Connector In: RJ45
- Data Connector Out: RJ45

Mechanical Specifications:
- Length: 1047 mm
- Width: 136 mm
- Height: 146.5 mm
- Weight: 6.5 kg (14.33 lb)
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black

Product Properties:
- Cooling: Convection

Rigging:
- Mounting Options: Bracket, Floor, Quick-Lock, Wall
- Safety Attachment: Yes

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)

Further Product Information Below

Showtec Pixel Bar 16 Manual (PDF)

Showtec Pixel Bar 16 Data Sheet (PDF)

Showtec Pixel Bar 16 Declaration of Conformity (PDF)

Showtec Pixel Bar 8 RGB COB LED Batten Supplied With

- Included Cables: IEC cable
- Included Rigging: Bracket
